Enable Bridge
Mode
the phone will no longer set IP address for LAN
physical port,LAN and WAN will join in the same
network. Click “Apply”, the phone will reboot.
Notice:WhenLAN IP or bridge mode status is changed, the system will
reboot!
If you choose the bridge mode, the LAN configuration will be disabled.
7.3.1.7 QoS&VLAN
The VOIP phone support 802.1Q/P protocol and DiffServ configuration. VLAN
functionality can use different VLAN IDs bysetting signal/voice VLAN and data
VLAN. The VLAN application of this phone is very flexible.

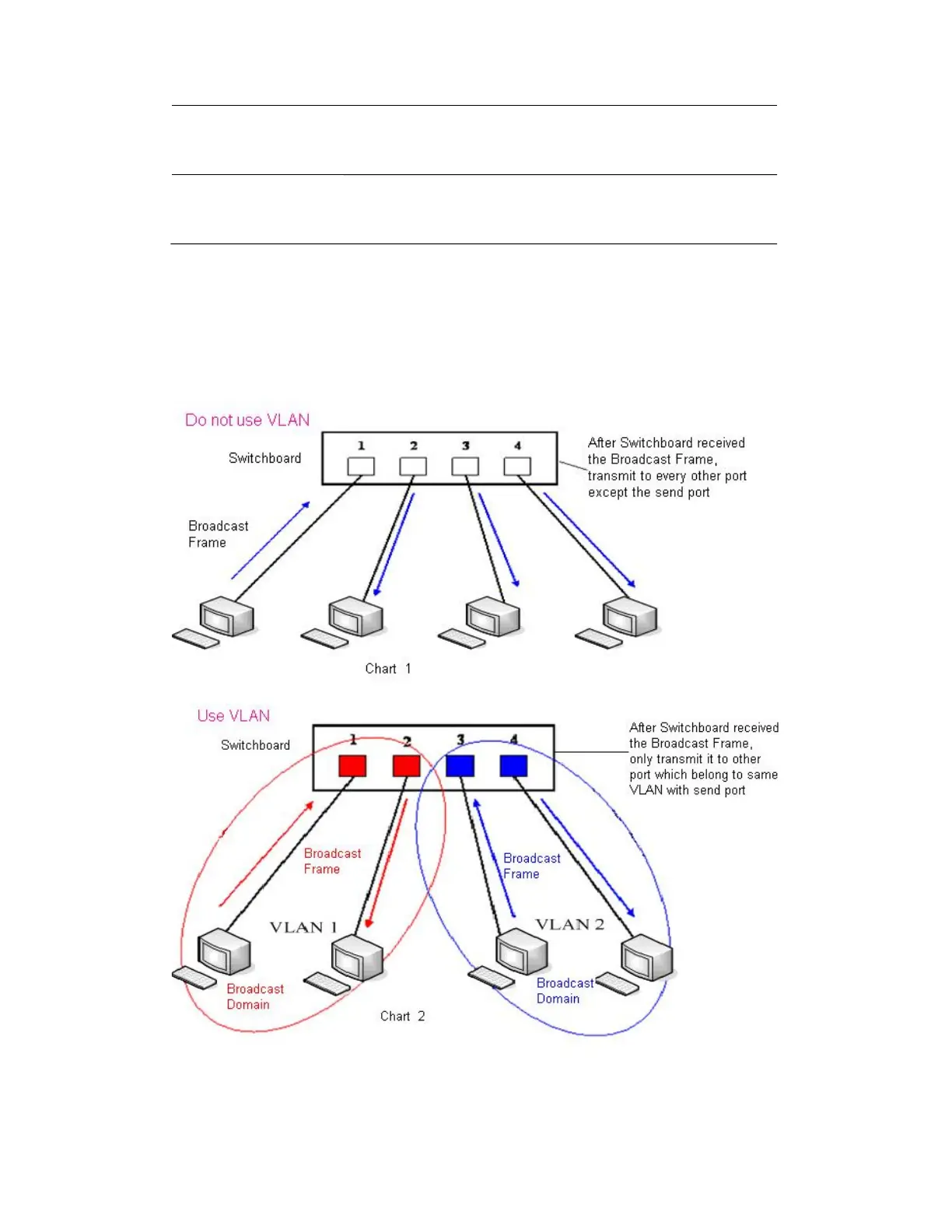

In
chart 1, there is a layer 2 that switches without setting VLAN. Any broadcast
frame will be transmitted to the other ports except the send port. For example, a
