D-Link DSL-3788 User Manual

40D-Link DSL-3788 User Manual
Section 4 - Conguration

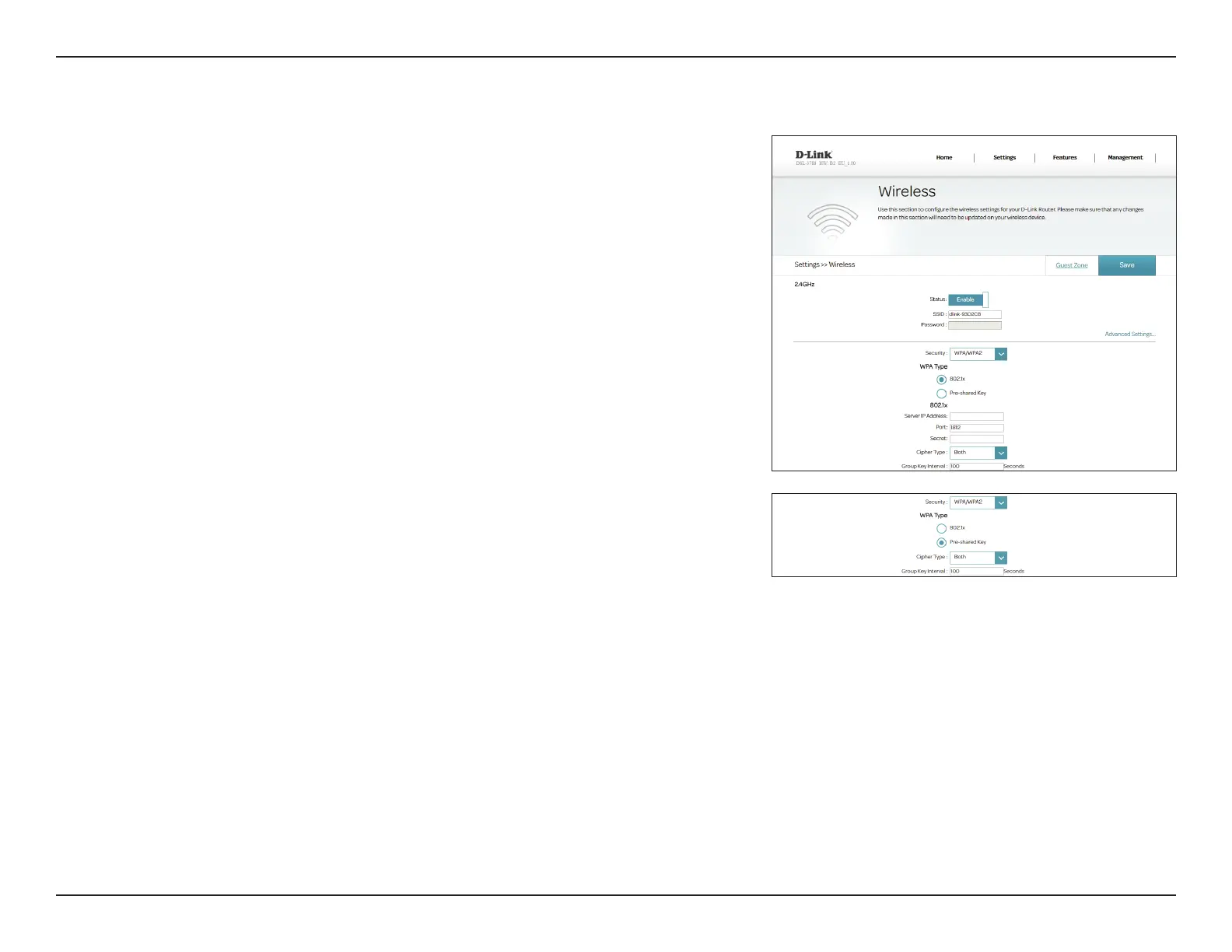

WPA/WPA2
WPA/WPA2 is a reasonably strong wireless security encryption type. Use this
for wireless clients which do not support WPA2 encryption.
Security: WPA/WPA2
WPA Type
If you select 802.1x the following options are available:
Server IP Address: Enter the IP address of the RADIUS Server.
Port: Enter the port used by the RADIUS Server.
Secret: Enter the secret used by the RADIUS Server.
Cipher Type: Select AES, TKIP, or Both. AES is recommended.
Group Key
Interval:
Enter the Group Key Interval. The default is 100 seconds.
If you select Pre-shared key the following options are available:
Cipher Type: Select AES, TKIP, or Both. AES is recommended.
Group Key
Interval:
Enter the Group Key Interval. The default is 100 seconds.
Advanced Settings (continued)

D-Link DSL-3788 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	866 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Product type	Tabletop router
Product color	Black
Antennas quantity	2
Output current	5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 95 %
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	30.75 mm
Width	210 mm
Height	150 mm
Weight	277.4 g
