Section 4 - Conguration

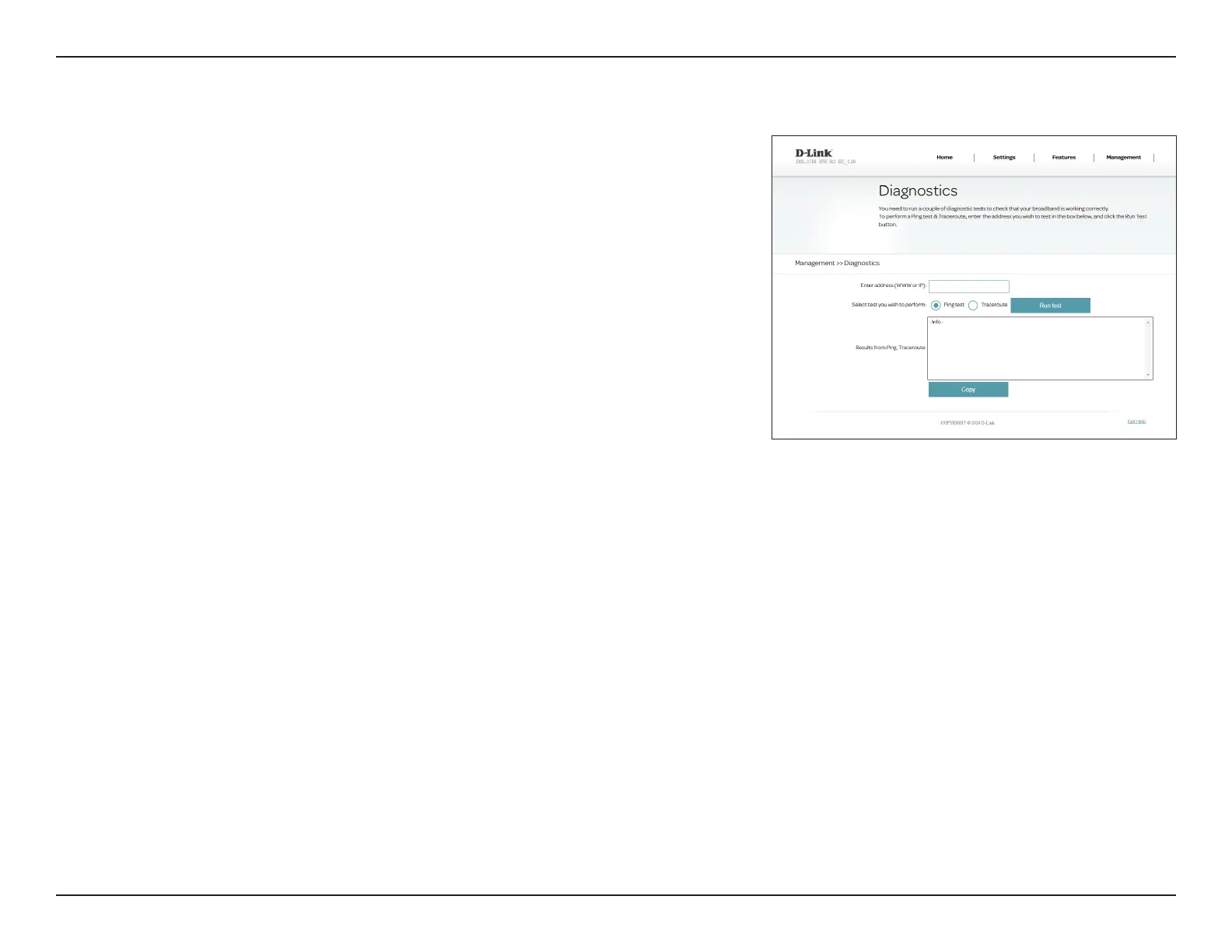

Diagnostics
This page is used to test the router's connection to the Internet. To access this
page, click Diagnostics from the Management menu on the bar on the top
of the page.
Enter either an IP address or web address, select either Ping or Tracert test,
and click Run Test.
The results of the test will be displayed in the dialog box. You may copy the
results by pressing the Copy button.

D-Link DSL-3788 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	866 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Product type	Tabletop router
Product color	Black
Antennas quantity	2
Output current	5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 95 %
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	30.75 mm
Width	210 mm
Height	150 mm
Weight	277.4 g
