D-Link DSL-3788 User Manual

45D-Link DSL-3788 User Manual
Section 4 - Conguration

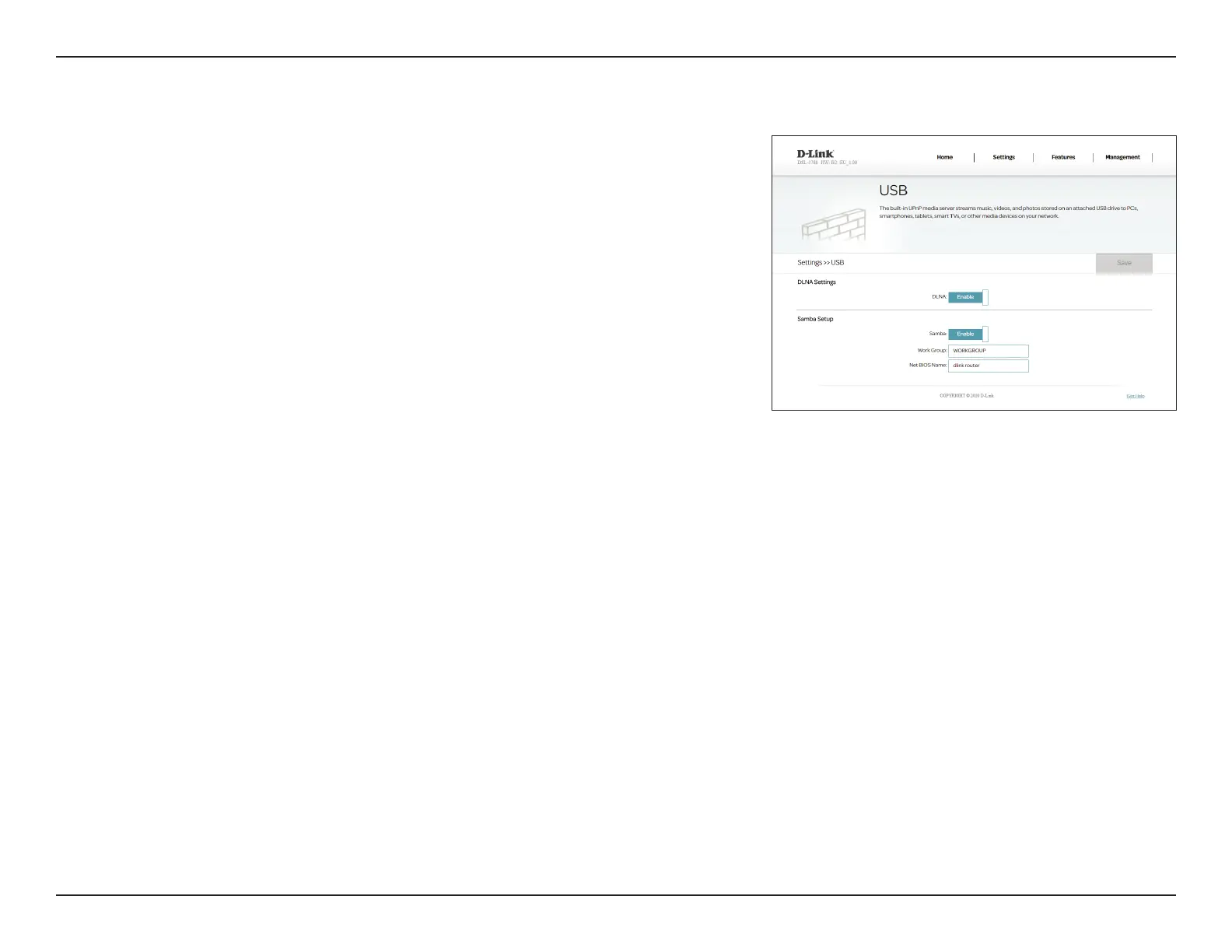

USB
This page will allow you to set up access to les on an external USB device
plugged into the router. You can do this through the local network. To access
this page, click USB from the Settings menu on the bar on the top of the
page.
DLNA Settings
DLNA: Enable or disable the DLNA media server functions, allowing
connected DLNA clients access to media les over the network.
Samba Setup
Samba: Enable or disable Windows File Sharing, or Samba. Computers and
devices which support Samba will be able to access the les on the
USB device connected to this router.
Work Group: Enter the Windows workgroup name.
Net BIOS Name: Enter the name for this device as you wish it to appear on your
network.
Click Save when you are done.
For information on how to access your USB drive from a Windows-based PC
refer to Connect and Share a USB Storage Device on page 69.

D-Link DSL-3788 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	866 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Product type	Tabletop router
Product color	Black
Antennas quantity	2
Output current	5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 95 %
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	30.75 mm
Width	210 mm
Height	150 mm
Weight	277.4 g
