53D-Link DSL-3788 User Manual
Section 4 - Conguration
If you enabled IP ltering, click Add Rule to create a new IP ltering rule.

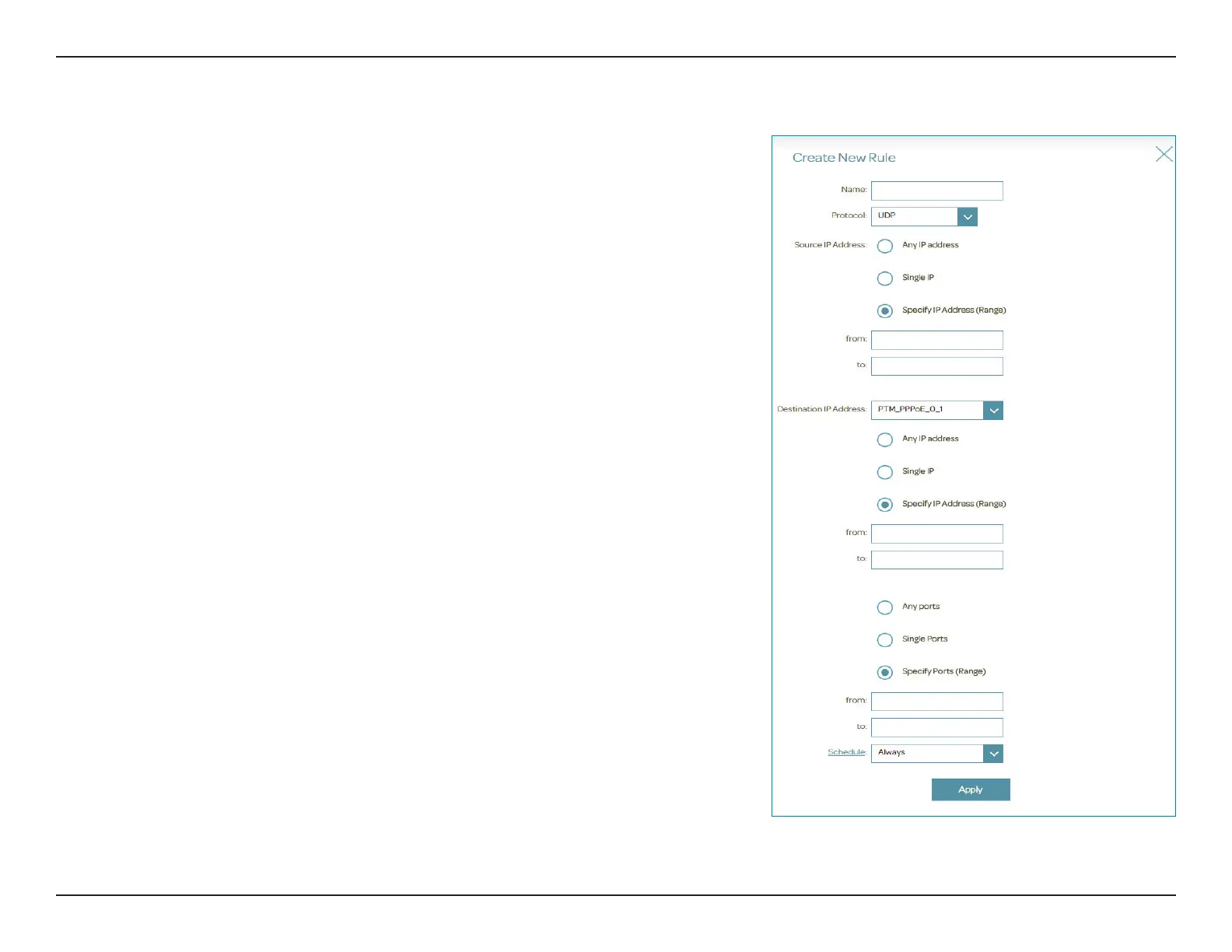

Create New Rule
Name: Create a name for the rule.
Protocol: Select the protocol type: Any, UDP, TCP, or ICMP.
Source IP Address: Select Any IP address, Single IP, or Specify IP Address (Range). If
you selected Single IP or Specify IP Address (Range), enter the IP
address into the From and To elds.
Destination IP
Address:
Select the destination to apply the rule to: ATM, PTM, or WAN.
Select Any IP address, Single IP, or Specify IP Address (Range). If
you selected Single IP or Specify IP Address (Range), enter the IP
address into the From and To elds.
If you selected UDP or TCP as the Protocol above, you may lter Any Port, a Single Port,
or Specify a Port Range.
Schedule: Use the drop-down menu to select the time schedule that the rule will
be enabled on. The schedule may be set to Always, or you can create
your own schedules in the Schedules section. Refer to Schedule on
page 61 for more information.
Click Apply when you are done.
IP Filter (continued)
