Section 6 - Connecting to a Wireless Network

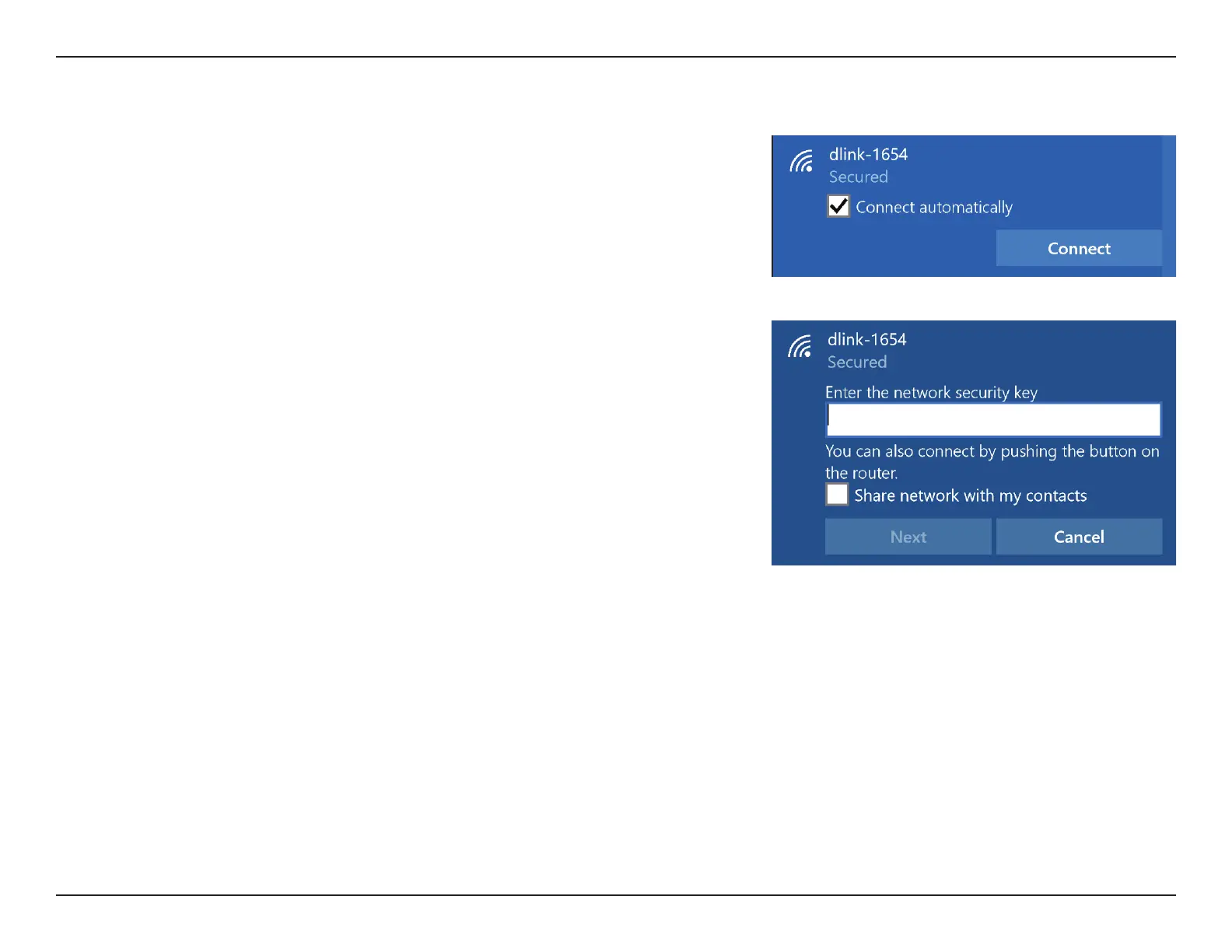

To connect to the SSID, click Connect.
To automatically connect with the router when your device next detects the
SSID, click the Connect Automatically check box.
You will then be prompted to enter the Wi-Fi password (network security key)
for the wireless network. Enter the password into the box and click Next to
connect to the network. Your computer will now automatically connect to this
wireless network when it is detected.
You can also use Wi-Fi Protected Setup (WPS) to connect to the router.
Press the WPS button on your D-Link device and you will be automatically
connected.

D-Link DSL-3788 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	866 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Product type	Tabletop router
Product color	Black
Antennas quantity	2
Output current	5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 95 %
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	30.75 mm
Width	210 mm
Height	150 mm
Weight	277.4 g
