D-Link DWA-172 User Manual

42D-Link DWA-172 User Manual
Appendix B - Networking Basics
Windows
®
XP Users
• Windows
®
XP - Click on Start > Control Panel. Make sure you are in Classic View. Double-click on the Network Connections icon.
• Right-click on the Local Area Connection which represents your D-Link wireless network adapter (or other adapter) which will be connected
to your router.

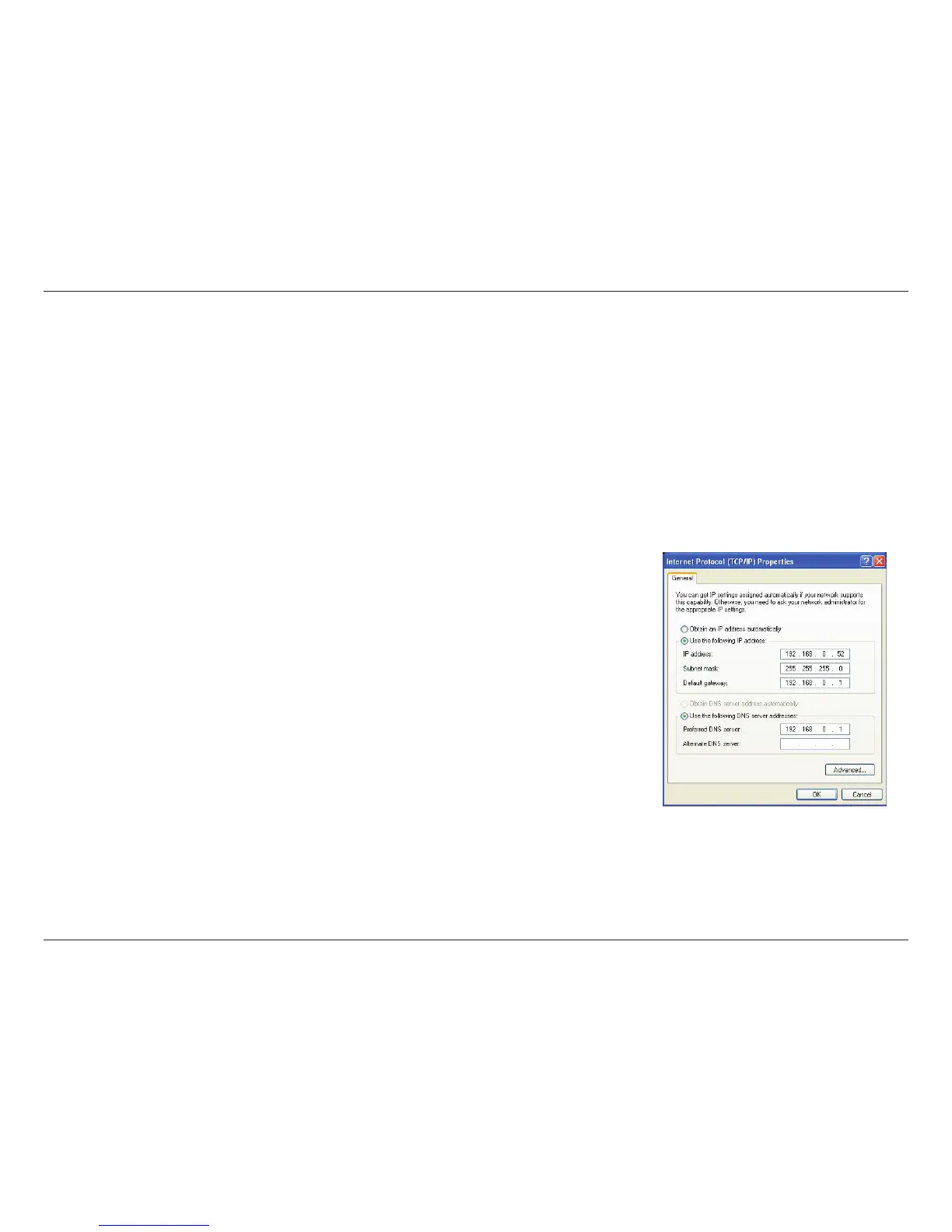

• Highlight Internet Protocol (TCP/IP) and click Properties.
• Click Use the following IP address and enter an IP address that is on the same subnet as your network or LAN IP address on your router.
Example: If the router’s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X where X is a number between 2 and 99. Make sure
that the number you choose is not in use on the network.
• Set Default Gateway the same as the LAN IP address of your router or gateway.
• Set Primary DNS the same as the LAN IP address of your router or gateway.
• The Secondary DNS is optional (you may enter a DNS server from your ISP).
• Click OK to save your settings.

D-Link DWA-172 Specifications

General

Interface	WLAN
USB ports quantity	1
Connectivity technology	Wireless
Chipset	-
Internal	No
Certification	FCC Class B\\r IC\\r CE\\r C-Tick\\r Wi-Fi Certified\\r Wi-Fi Protected Setup
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Frequency range	2.4 - 5 GHz
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	WPA, WPA2, WPS
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	433 Mbit/s
WLAN data transfer rates supported	1, 2, 5.5, 11, 12, 24, 36, 48, 54, 150, 433 Mbit/s
Gain	3 dBi
Storage temperature (T-T)	-20 - 75 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	208 mm
Package width	137 mm
Package height	36 mm
Package weight	60 g
Output voltage	5 V
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	2100 mm
Pallet gross weight (air)	191200 g
Quantity per pallet (air)	960 pc(s)
Harmonized System (HS) code	85176990
Shipping (inner) case width	443 mm
Shipping (inner) case height	320 mm
Shipping (inner) case length	457 mm
Shipping (inner) case weight	7300 g
Shipping (inner) case net weight	6300 g
Number of cartons per pallet (air)	24 pc(s)
Quantity per shipping (inner) case	40 pc(s)

Weight and Dimensions

Depth	15 mm
Width	15.7 mm
Height	193 mm
Weight	23.2 g
