D-Link DWR-978 User Manual

15D-Link DWR-978 User Manual
Section 3 - Conguration

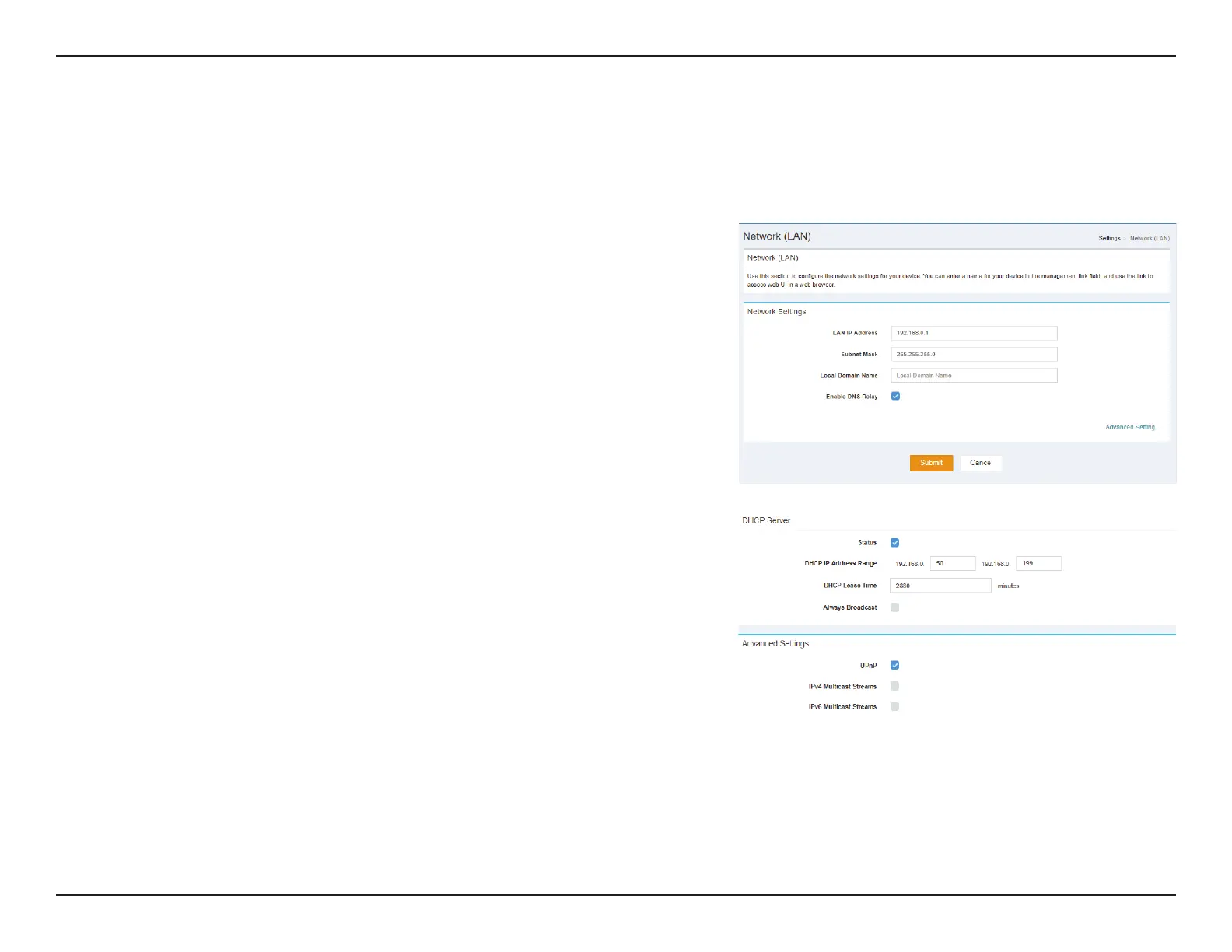

Network (LAN)
Network Settings
LAN IP
Address:
Enter the IP address you want to use for the router. The default
IP address is 192.168.0.1. If you change the IP address, you will
need to enter the new IP address in your browser to get into the
conguration utility.
Subnet Mask: Enter the subnet mask of the router. The default subnet mask is
255.255.255.0
Local Domain
Name:
Enter the local domain name for your network. (Optional)
Enable DNS
Relay:
Disable to transfer the DNS server information from your ISP to
your computers. If enabled, your computers will use the router
for a DNS server.
Click Submit to save your settings, or Cancel to revert to your previous settings.

D-Link DWR-978 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
3G/4G USB modem compatibility	-
4G standard	LTE-FDD
3G standards	WCDMA
SIM card type	NanoSIM
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1733 Mbit/s
Product type	Tabletop router
Product color	White
LED indicators	LTE, Power, WAN, WLAN
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11k, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPA3
Antennas quantity	8
Output current	1 A
Output voltage	12 V
Power source type	AC
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Mobile operating systems supported	Android, iOS
Number of products included	1 pc(s)
Sustainability certificates	CE, RoHS

Weight and Dimensions

Depth	245 mm
Width	234.5 mm
Height	55.25 mm
Weight	920 g
