RJ-45 PIN SPECIFICATION
The following diagram and tables show the standard RJ-45
receptacle/connector and their pin assignments.
RJ-45 Connector pin assignment
Contact
Media Direct Interface Signal
1
Rx +(receive)
2
Rx - (receive)
3
Tx + (transmit)
4
Not used
5
Not used
6
Tx - (transmit)
7
Not used
8
Not used
RJ-45 pin assignment

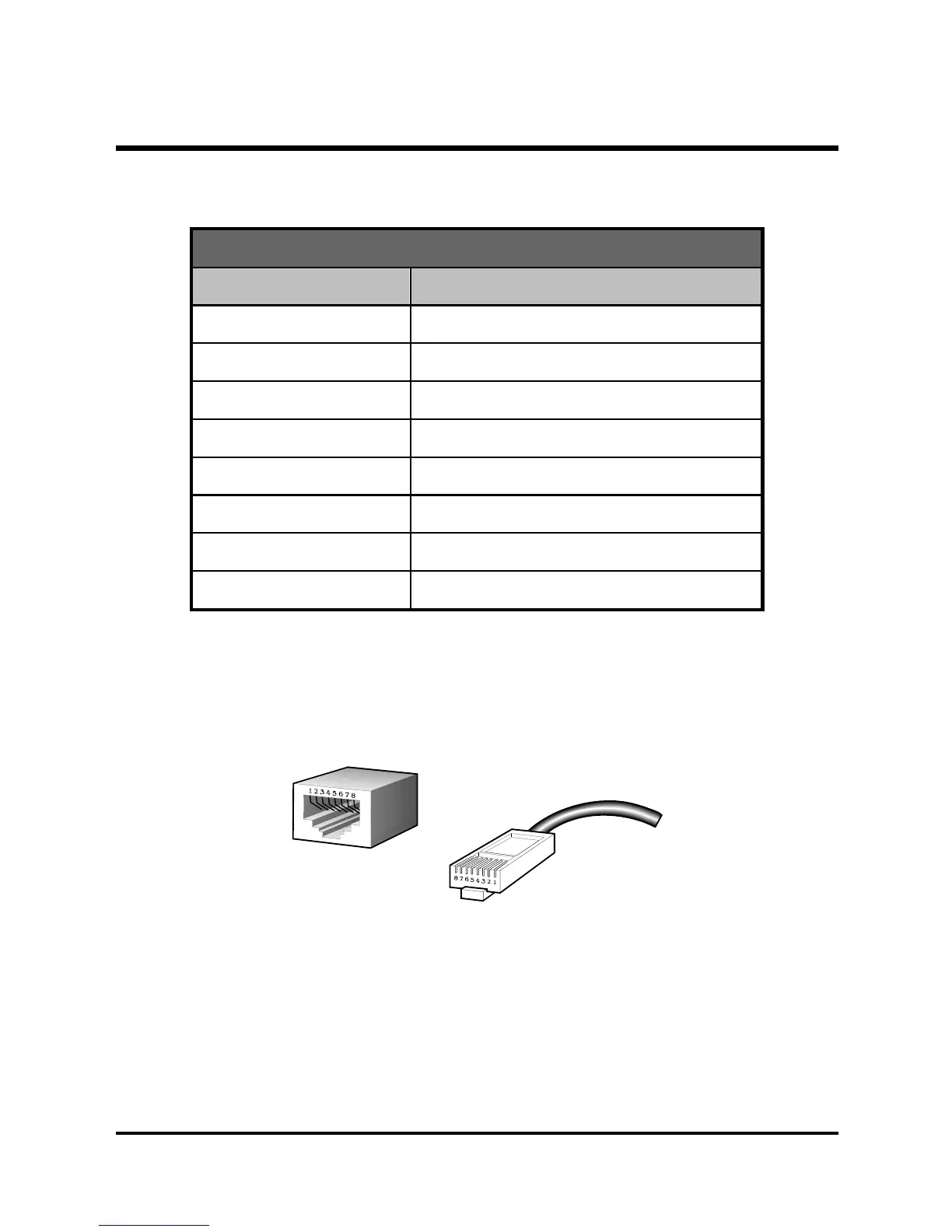

Standard RJ-45 receptacle/connector

D-Link GO-SW-5E Specifications

General

Switch type	Unmanaged
Switch layer	-
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity	5
10G support	No
Full duplex	Yes
Networking standards	IEEE 802.3, IEEE 802.3az, IEEE 802.3x
MAC address table	2000 entries
Power consumption (typical)	0.9 W
Number of power supply units	1
Product color	White
LED indicators	Activity, Link
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	47.85 mm
Width	87 mm
Height	21.7 mm
