Electrical Connections
This appliance is tted with a fused three-pin plug to BS 1363. If the plug
has to be removed, it should be cut o and carefully disposed of
immediately. To avoid a possible shock hazard, do not insert the
discarded plug into a mains socket.
Fitting a new plug

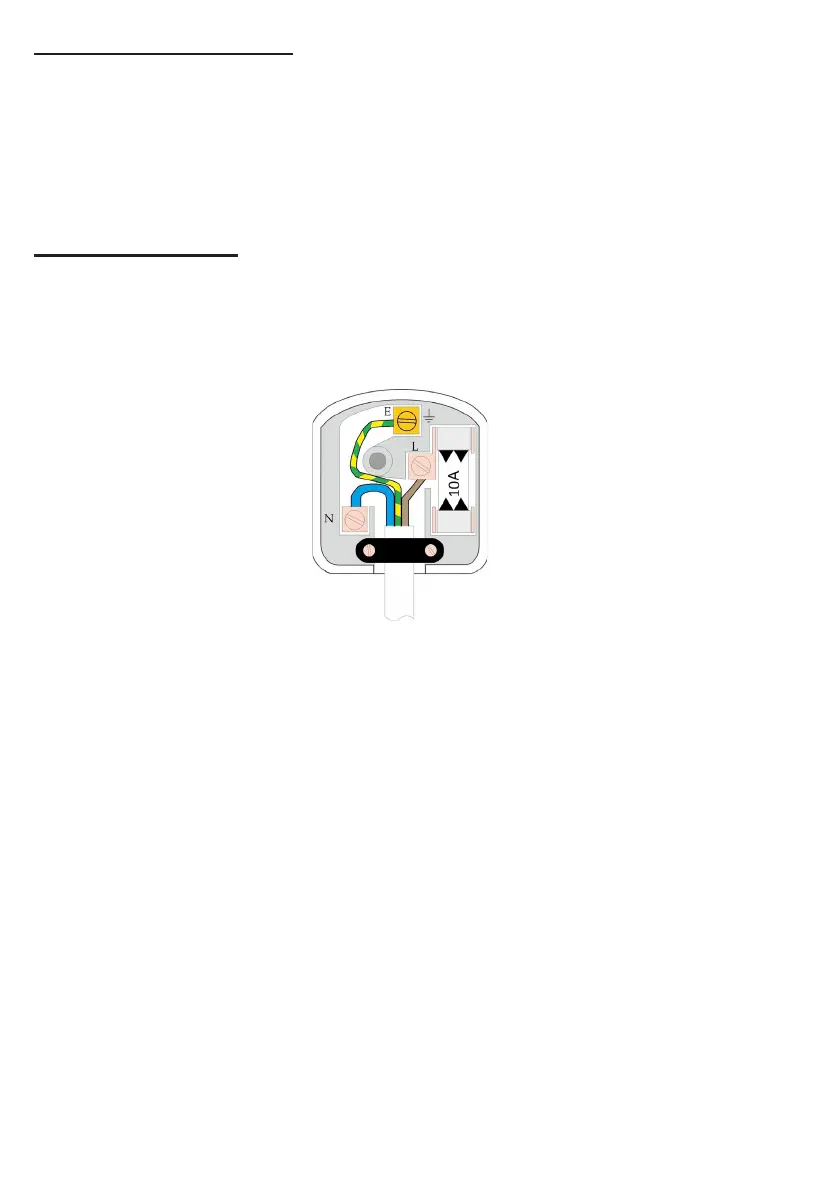

If for any reason you need to t a new plug, the exible mains lead must
be connected as shown below. The wires in the mains lead tted to this
appliance are coloured in accordance with the following code:
Connect Green and
Yellow to Earth (E)
Connect Blue to
Neutral (N)
Connect Brown to
Live (L)
Ensure the outer sheath is
securely held by the cord clamp
• The Blue wire must be connected to the terminal marked N or
coloured Black.
• The Brown wire must be connected to the terminal marked L or
coloured Red.
• The Green & Yellow wire must be connected to the terminal marked
E or coloured Green.
• Check that there are no cut or stray strands of wire inside the plug.
• Use a 10 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
• If you are in any way unsure which plug or fuse to use, always refer
to a qualied electrician.
• After replacing or changing a fuse on a moulded plug, the cover must
be retted to the plug; the appliance must not be used without a fuse
cover.
