15
LOC
A

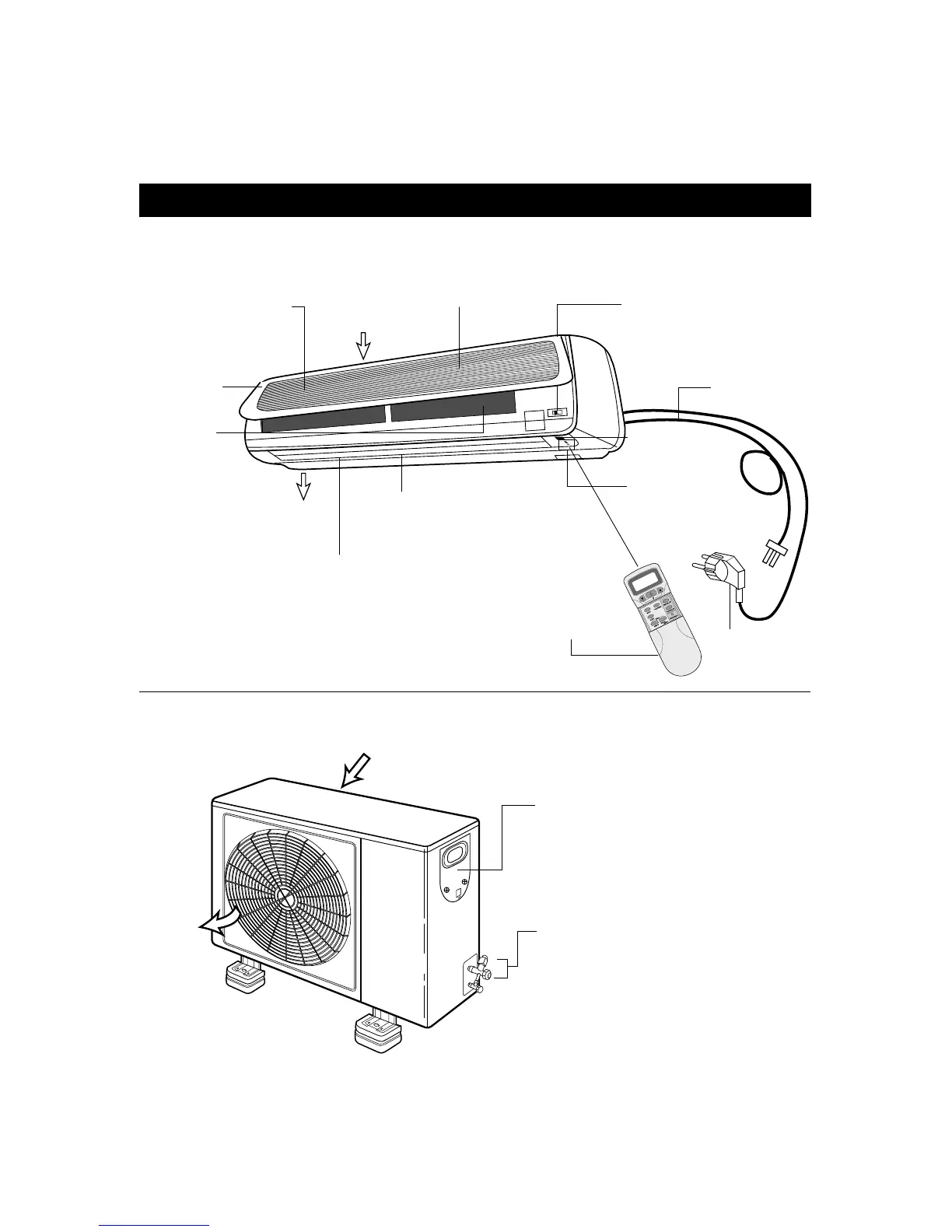

TION OF CONTROLS
OPERATING SECTION
Indoor Cover
Electrostatic Filter
Removes dust
particles from the air.
(Option Filter)
Deodorizing Filter
Removes bad
smells from the air.
(Option Filter)
Emergency/
Remote Switch
Slide to select
the desired position.
Indicators
Indicate the
AC setting.
Remote Sensor
Power Plug
Air Cleaning
Filters
Removes dust
and prohibits
germs.
AIR OUT
Air In
Sensor Wire
Fan Direction
(Up/Down)
Fan Direction
(Left/Right)
ON
OFF
ENTER
CANCEL
TIMER
RESET
FAN DIR.
FAN SPEED
MODE
SLEEP
ON/OFF
TEMP.
LCD Remote Controller
INDOOR UNIT
Connection Cover
Remove cover to access the AC connection
from this unit to the indoor unit.
Service Valves
The indoor and outdoor units
are connected by copper tubes
which are connected here.
AIR IN
AIR OUT
OUTDOOR UNIT
15
17
Table of Contents
Default Chapter
2
Safety Instructions
2
Table of Contents
3
Contents
3
Installation Section
4
Basic Accessories
4
Remote Holder Screws
4
Copper Tubing
4
Copper Tubing Supplied Is Available at most Dealers or A/C Shops. Make Sure the New Copper Tubing Has the Exact same
4
Specifications and Diameter as the Original Copper Tubing and Is as Short as Possible
4
Optional Accessories
5
Copper Tubing
5
Installation Diagram
6
Copper Tubing
6
Installation
7
Selecting a Site
7
Installing the Wall Bracket
7
Copper Tubing
7
Installing the Indoor/Outdoor Wire to the Indoor Unit for AC Connection
8
Mounting the Indoor Unit
9
Preparing the Copper Tubing
10
Connecting Copper Tubes
10
Connecting the Drain Hose
10
Installing the Indoor/Outdoor Wire to the Outdoor Unit for AC Connection
11
Taping up the Wire/Tubes/Hose
12
Applying Putty and Inserting Wall Cap
12
Copper Tubing
12
Air Purging
13
Air Purging with Vacuum Pump
13
Test Run
15
Pump down
15
Operating Section
16
Location of Controls
16
Indoor Unit
16
Outdoor Unit
16
Remote Controller
18
Remote Display
18
Battery
18
Operation
19
Connecting the AC Cord
19
How to Install Batteries
19
Setting the Unit for Remote Operation
19
Celsius to Fahrenheit Conversion Chart
20
To Set the Unit to Auto Mode
20
To Set Unit to Quick Mode
21
To Set Unit to Cool Mode
21
To Operate Fan Only
22
To Set Unit to Dehumidifier Mode
22
To Set Unit to Heat Mode
23
To Select the Fan Direction
23
To Set the on Timer Mode
24
To Set the off Timer Mode
25
To Set Unit to Sleep Mode
26
Emergency Operation
26
Changing/Cleaning the Air Filters
27
Installing the Remote Bracket
27
Care and Maintenance
28
Troubleshooting Guide
29
Specifications
30
Deodorizing Filter
30
Electrostatic Filter
30
