MECHANICAL DISASSEMBL
Y(DECK)
9
1.
Earth Bracket Ass'y
2.
FE Head
3.
S-Slant Pole Ass'y
4.
Tension Lever Ass'y
5.
Reel Table
6.
Main Base Ass'y
7.
S-Sub Brake Ass'y
8.
S-Main Brake Ass'y
9.
Idler Plate Total Ass'y
10.
T-Main Brake Ass'y
11.
T-Sub Brake Ass'y
12.
Relay Lever
13.
Capstan Motor
14.
Pinch Lever Total Ass'y
15.
L/C Bracker Total Ass'y
16.
Cam Gear
17.
AC Head Total Ass'y
18.
T-Slant Pole Ass'y

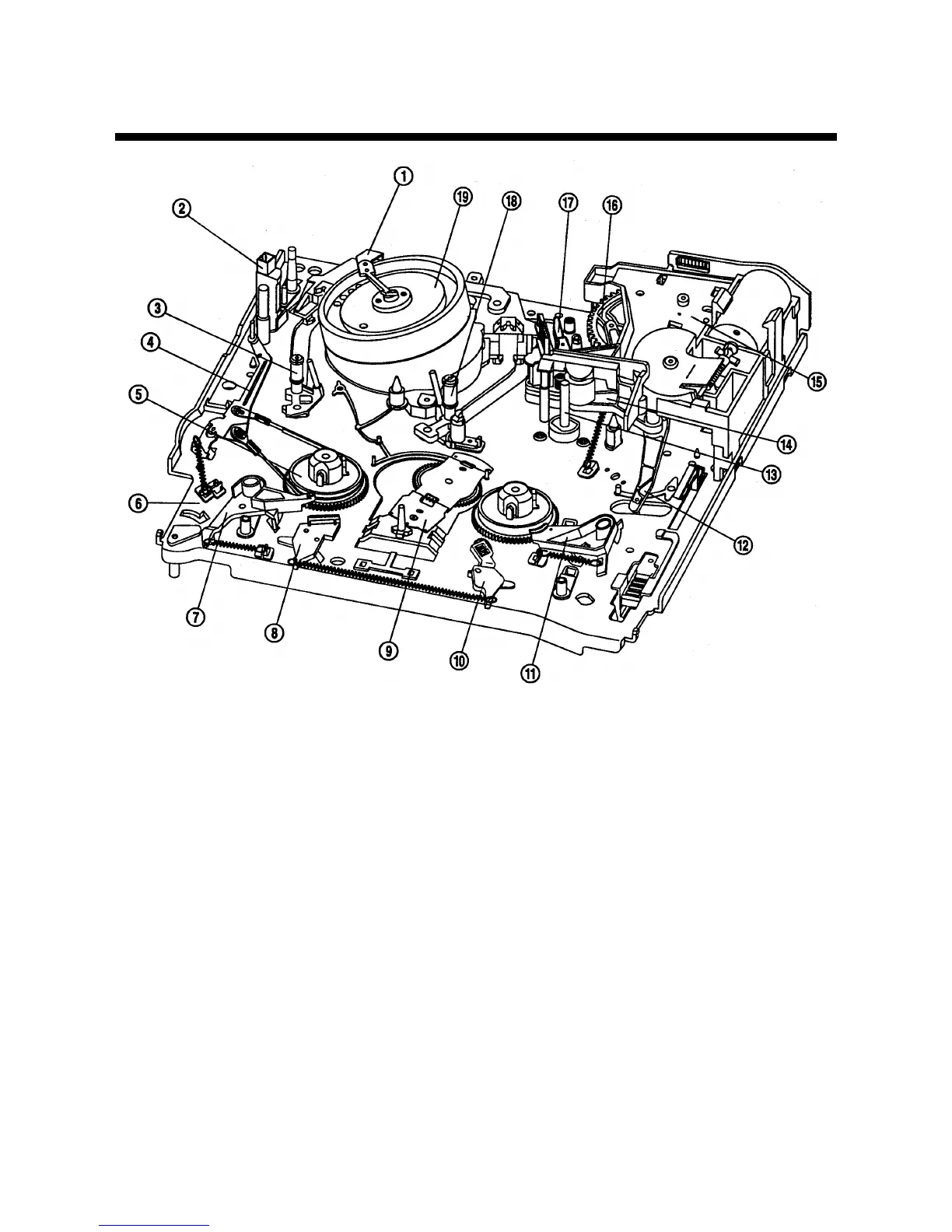

Fig. 9- tape Transport Mechanism Identification (Top View)
1.TOP VIEW
11
13
Table of Contents
Default Chapter
2
Table of Contents
2
Specifications
4
Satety Checking after Servicing
5
Insulation Resistance Test
5
Dielectric Strength Test
5
Clearance Distance
5
Leakage Current Test
5
Important Service Notes
6
X-RAY Radiation Precaution
6
Safety Precaution
6
Product Safety Notice
6
Service Notes
6
General Adjustment
7
General
7
Vertical Height Adjustment
7
Focus Adjustment
7
RF AGC Adjustment
7
High Voltage Check
7
X-RADIATION Protection Circuit Test
7
White Valance Adjustment
7
Convergence Magnet Assembly Positioning
8
Leadless(Chip) Instruction
10
Cleaning and Rubrication of Deck Mecanism
10
Leadless(Chip) Component Removal Instruction
10
Leadless(Chip) Component Identification
11
Mechanical Disassembly(DECK)
12
Top View
12
Bottom View
13
F/L Mechanism View
14
General Removal View
15
Mechanical Checks/Gear Alignment
20
Mechanical Adjustments
25
Shape & Equipment of DVN-14/20F6N
27
Dvn-14F6N/Dvn-20F6N
27
Panel View
29
Remote Controller
30
Electrical Adjustments
32
Servo
32
Audio
34
Video
36
Signal Flow
38
Video & Audio
38
Troubleshooting According to
87
Power Supply Unit
87
Vertical, Horizontal Unit
89
Servo/Syscon Unit
91
Video Unit
96
Audio Unit
100
Electrical Parts List
103
Standard Part Number Coding
103
