6
TIMER SPIN
SAFETY DEVICE FOR MOTORS
- Function
The Spin Timer is the switch providing power to the spin motor(Drain Pump motor) during the set spin dry time,
and is a spring-type time switch comes on upon turning and those contact point comes off after the set time.
In case excessive strain is placed on the motor due to excessive
electricity, over heating, or overloading so that the
temperature of motor reaches to about 130˚C the thermal
protector attached to the motor shuts off the motor automatically.
In the case the motor does not operate, until the temperature of
motor drops to about 85˚C. It takes about an hour.
SAFETY DEVICE FOR SPIN DRYER
The spin dryer is an apparatus which eliminates the water from the laundry through centrifugal separation generated by
rapid revolution(approximately 1700rpm for frequency of 60Hz).
Accordingly, there are a door switch to cut off the power going into the spin motor when door spin o is opened and a
brake system to stop the rotating spin dryer.

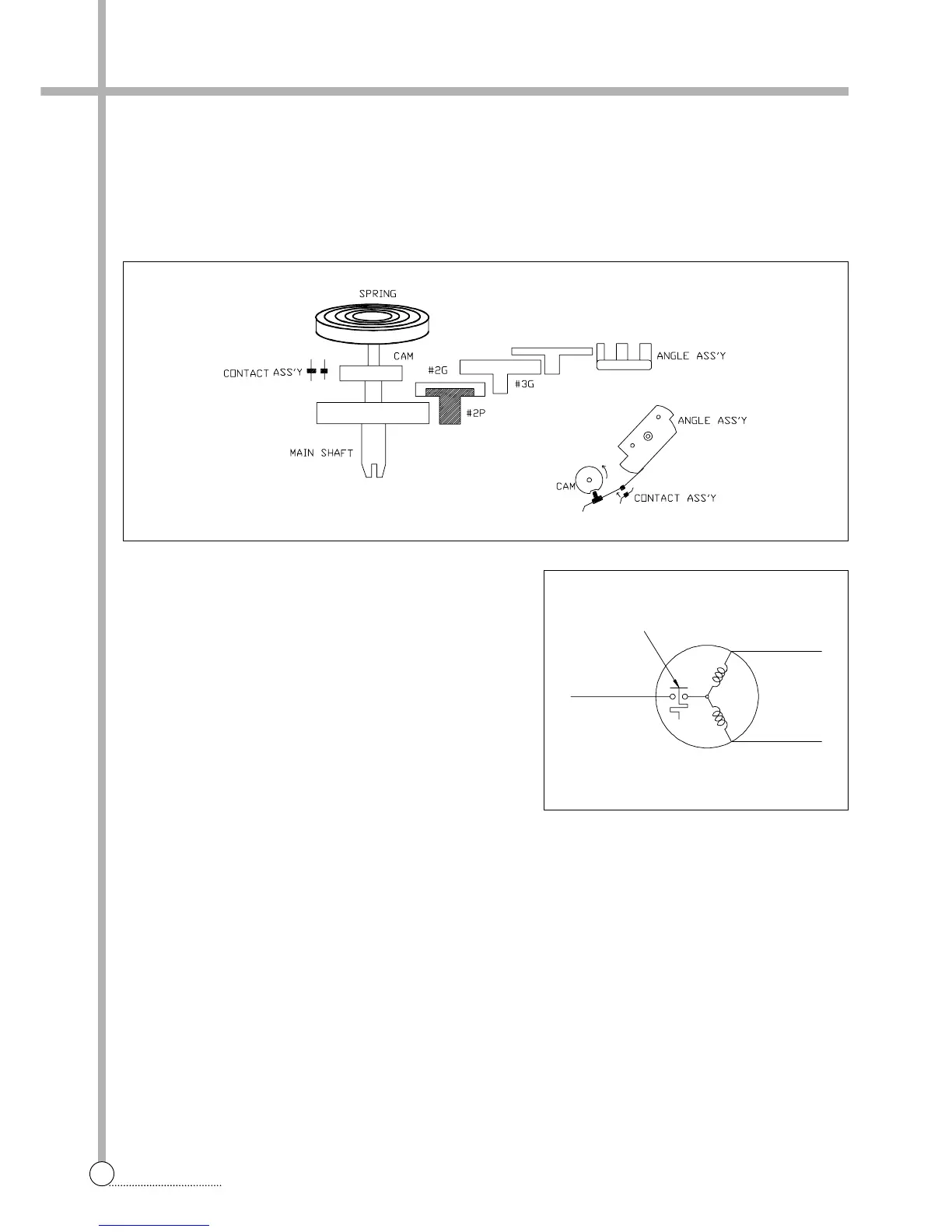

Structure and Principle of Activation
Thermal
Protector
MAIN
(Violet)
SUB
(Blue)
Common
(White)
To Next Page
