Daewoo DWF-1098 - Functional Principle of Bubble Washing Machine

16
EXPLANATION
ACROSS SECTION
FUNCTIONAL PRINCIPLE

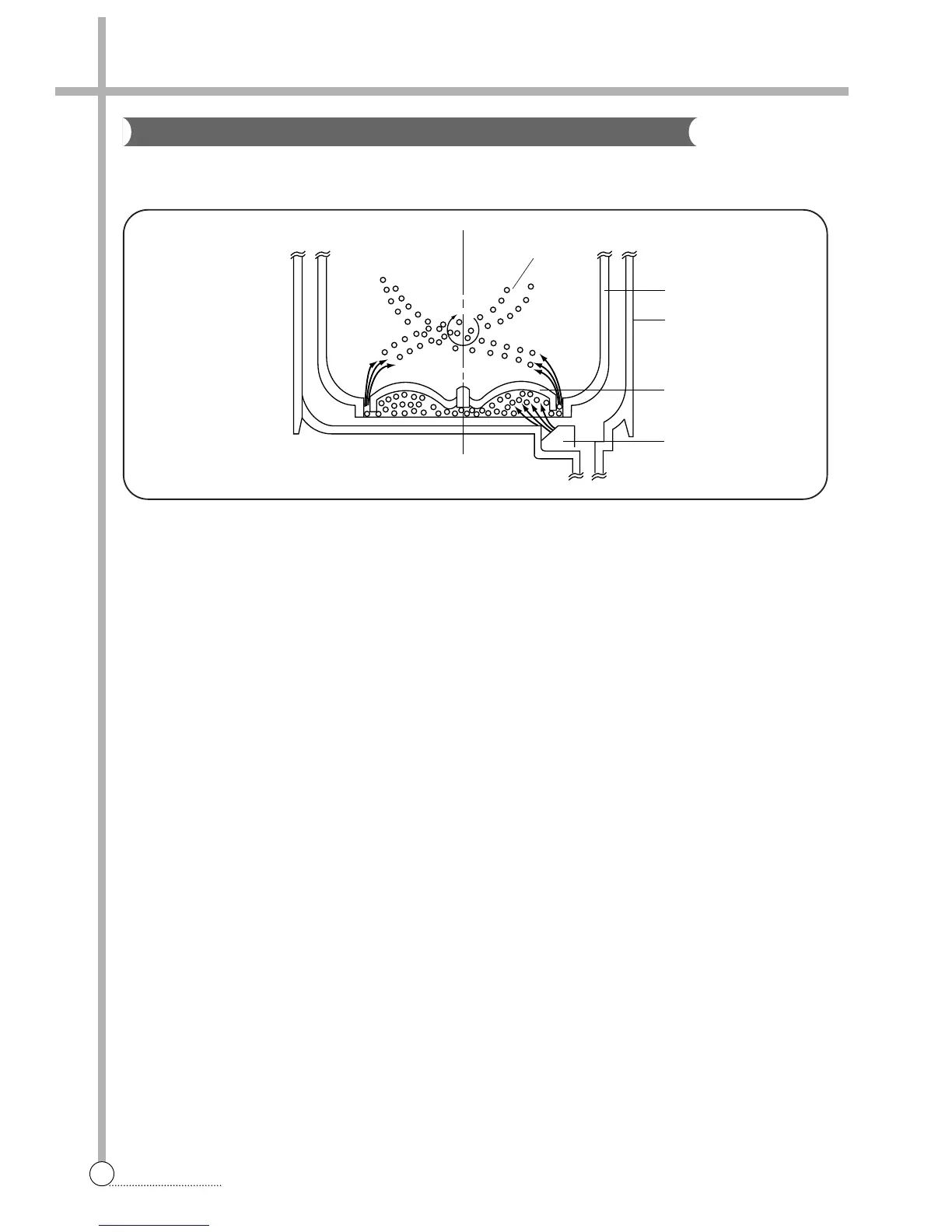

Bubble generator supplies the air from the bottom of outer tub to the inner space of pulsator, the air is dispersed by
the rotation of pulsator. Air-bubble is created by the centrifugal force, and rises up.
Air bubble
Tub
Outer tub
Pulsator
Nozzle
Functional Principle of Bubble Washing Machine
