17
DIRECTIONS

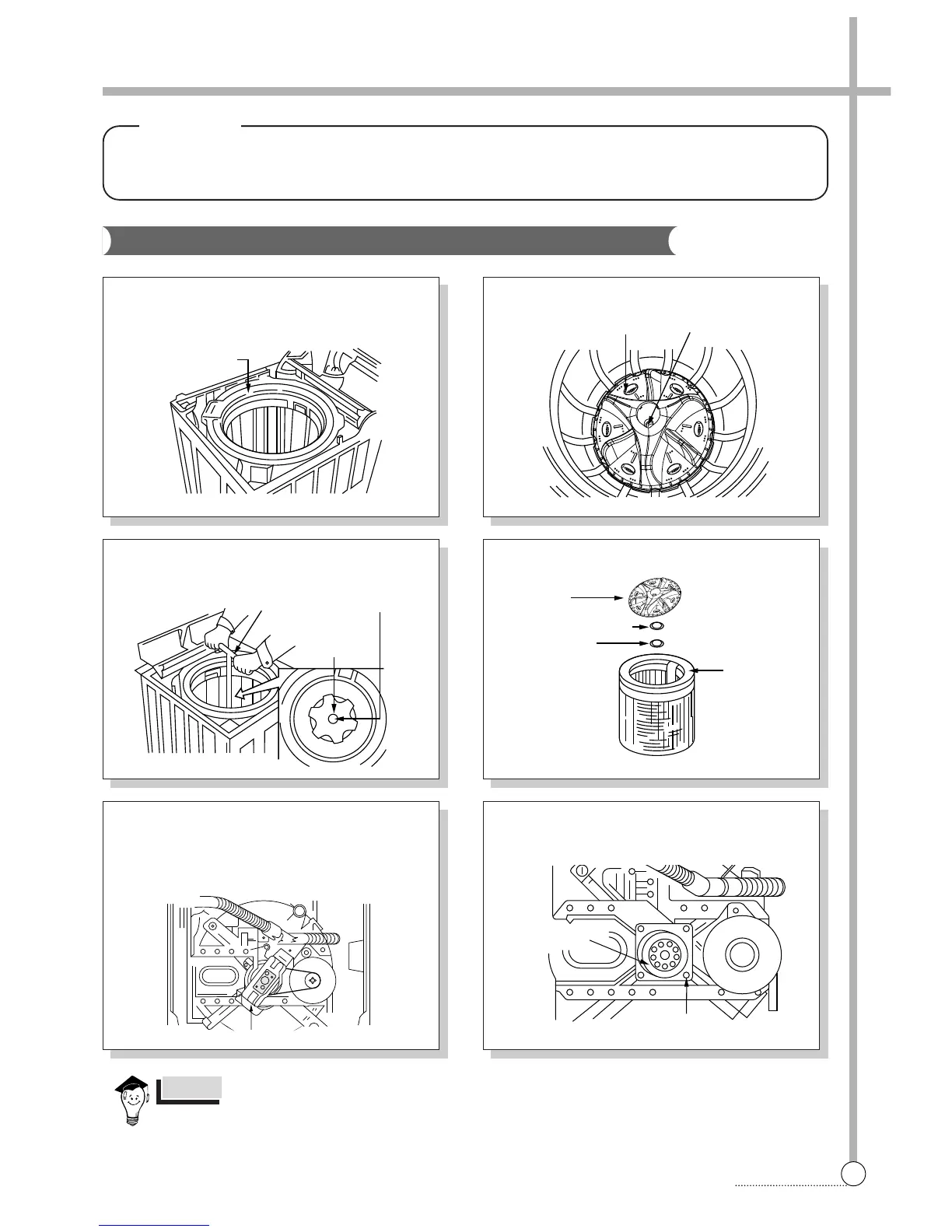

7. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
● Raise the top plate on the outer cabinet.
● Loosen four screws mounting outer tub cover and
remove outer tub cover from the tub ass’y.
● Remove the spinner shaft flange nut by using ‘T’
type box wrench.
● Lay the front of the washer on the floor.
● Remove four bolts mounting the plate-gear protect
by using a box wrench and remove plate-gear pro-
tect.
● Remove the V-belt.
● Loosen the pulsator mounting screw and remove
the pulsator.
● Remove the tub ass’y.
● Remove four bolts mounting the gear mechanism
ass’y by using a box wrench.
● Pull out the gear mechanism ass’y.
Gear Mechanism Ass’y Replacement
BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE WASHING MACHINE, DISCONNECT
THE POWER CORD FROM THE ELECTRIC OUTLET.
Warning
To assemble the gear mechanism ass’y, reverse
the disassembly procedure.
NOTES
To Next Page
