18
DIRECTIONS

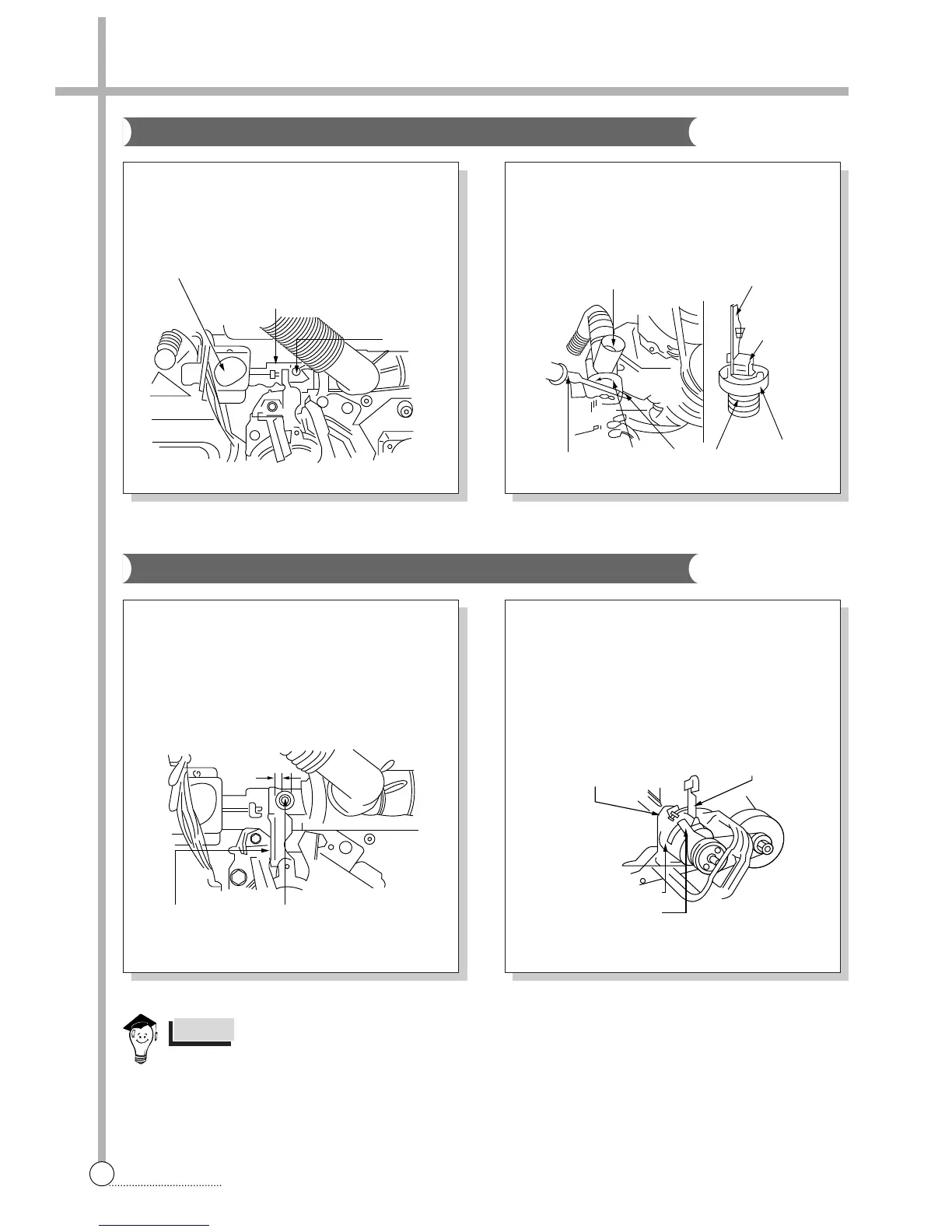

● Lay the front of the washer on the floor.
● Loosen the adjustment screw and four bolts
mounting the drain motor.
● Take out the wire of drain motor from the bracket.
● Loosen the adjustment screw fastening the brack-
et and place the adjustment screw to the brake
lever as shown in figure.
● Tighten the adjustment screw completely.
● Loosen the adjustment bolt and turn the adjust-
ment bolt until the end of the bolt touches to the
brake lever.
● Tighten the lock nut and apply a small amount of
paint-lock.
● Separate the drain motor from the bracket.
● Turn the valve lid by using screw driver as shown
in figure and remove the valve lid from the valve
frame.
Drain Motor and Valve
Brake Adjustment
1. The brake adjustment has been made at the factory, so that it is not to re-adjust. However, in case of insuf-
ficient brake operation, perform the upper procedure.
2. Overtightening of the adjustment bolt will cause poor brake performance.
3. Undertightening of the adjustment bolt will cause continuous bracking and, thereby, cause the problems of
the motor during the spin cycle.
NOTES
