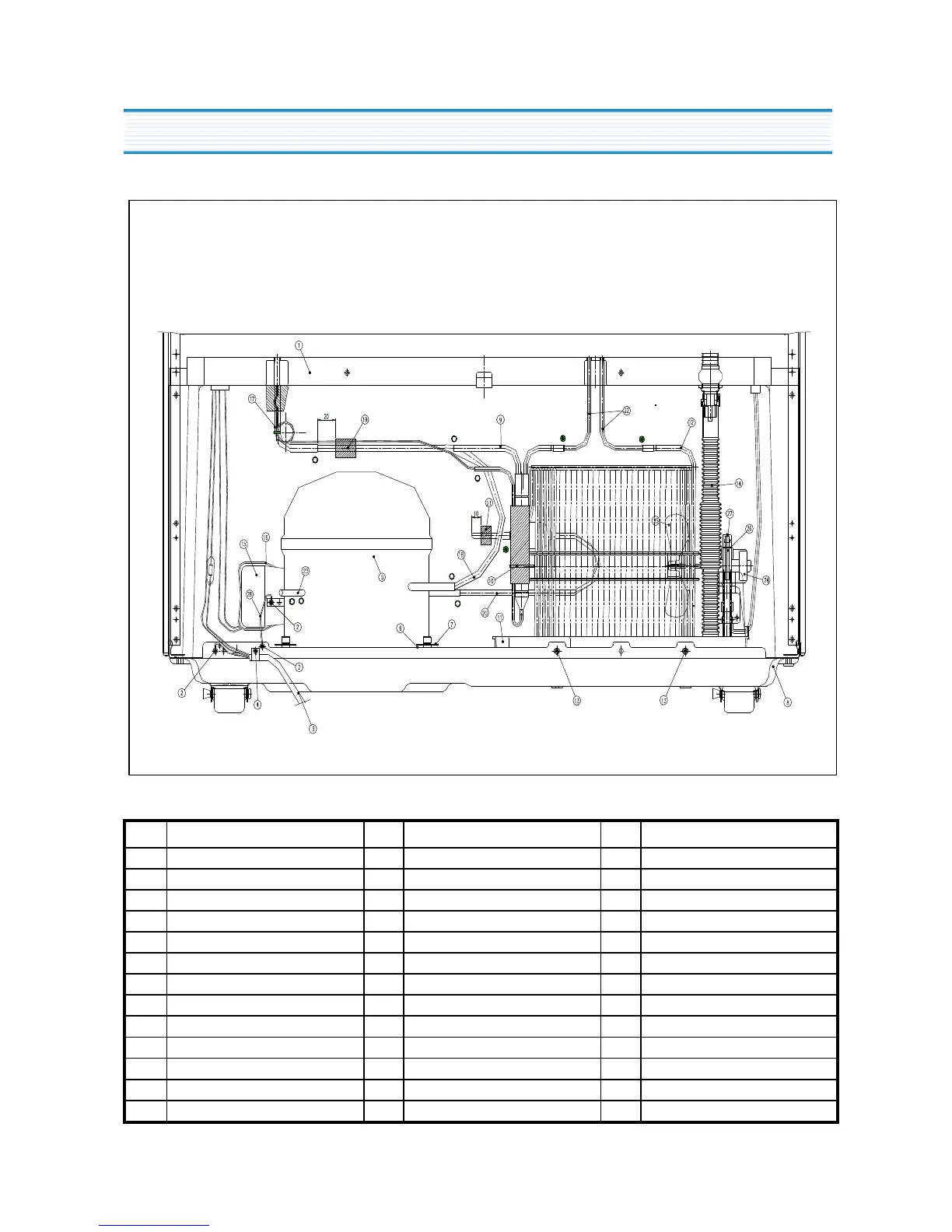

6-3 MACHINE ROOM EXPLODED VIEW AND PARTS LIST
NO PART NAME NO PART NAME NO PART NAME
1 BASE CAB AS 8-3 SHAFT CASTER *B 17 PIPE SUC AS
2 SCREW MACHINE 8-4 CASTER *B 18 PIPE SUC CONN
3 CORD POWER AS 9 DRYER AS 19 ABSORBER PIPE
4 SCREW TAPPING 10 CABLE TIE 20 PIPE MUFFLER AS
5 COMPRESSOR 11 VASE VAPORI AS 21 ABSORBER PIPE A
6 ABSORBER COMP AS 11-1 CASE VAPORI 22 PIPE HOT
6-1 ABSORBER COMP RUB B 11-2 SEAL CASE VAPORI 23 PIPE SERVICE
6-2 ABSORBER COMP RUB A 12 PIPE WICON AS 24 MOTOR C
6-3 ABSORBER COMP SPRING 13 SCREW TAPPING 25 FAN C AS
7 WASHER SPECIAL 14 HOSE DRAIN B AS 26 FIXTURE C MOTOR
8 BASE COMP AS 14-1 HOSE DRAIN B 27 ABSORBER C MOTOR
.8-1 BASE COMP 15 COVER C FAN 28 HARNESS EARTH
8-2 SPECIAL BOLT 16 BAND RELAY
5. DISASSSEMBLY AND ASSEMBLY
49
