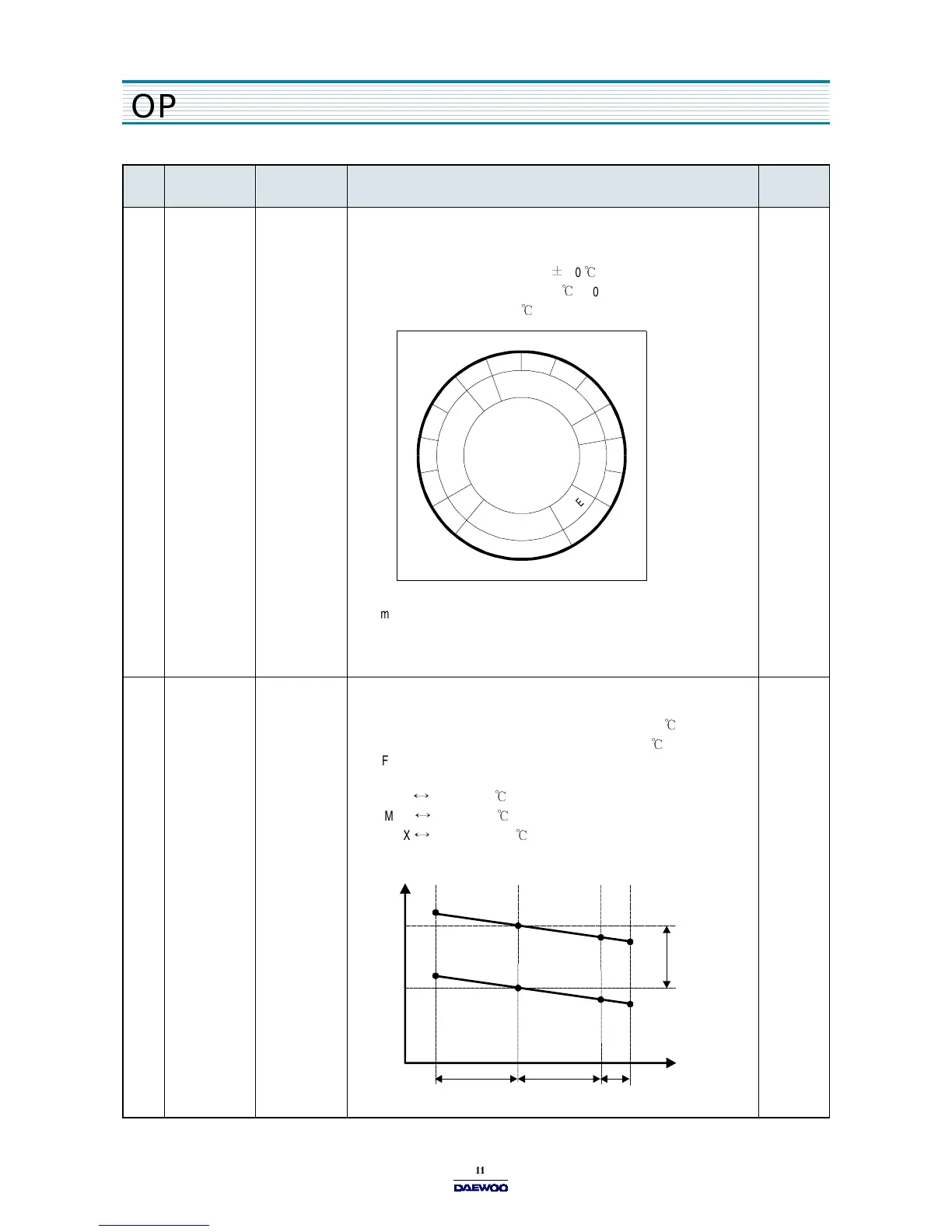

OPERATION AND FUNCTIONS
NO
CONTROL
FUNCTION
CONTROL
OBJECTS
CONTENTS REMARK
1 Temperature
Regulation
COMP
Fan
1. Temperature Regulation of Fresh Food Compartment
1) Maximum angle clockwise : Temperature setting for WINTER
2) Maximum angle counter-clockwise : Temperature setting for MIN
3) Maximum rotation angle : 280
10
4) Minimum Step Difference : 0.35
/ 20°
5) Total Step Difference : 5
2. Temperature Regulation of Freezer Compartment
1) Temperature is regulated by moving the lever to the left and/or
the right.
2) Temperature has nothing to do with PCB control.
2 Control of
Temperature
COMP
Fan
1. How to Control
1) COMP is controlled by On/Off point of R-Sensor at each mode.
2) Middle Off Point of Fresh Food Compartment : 3.5
3) On/Off Difference of Freezer Compartment : 1.0
4) Fan Delay : Fan is On/Off after 1 minute of Comp On/Off.
5) Step Difference of Fresh Food Compartment
MIN
MED : 2
MED
MAX : 2
MAX
WINTER : 1
MED
MIN
MAX
WINTER
