Daewoo FR-550NT User Manual


EXPLODED VIEW AND PARTS LIST

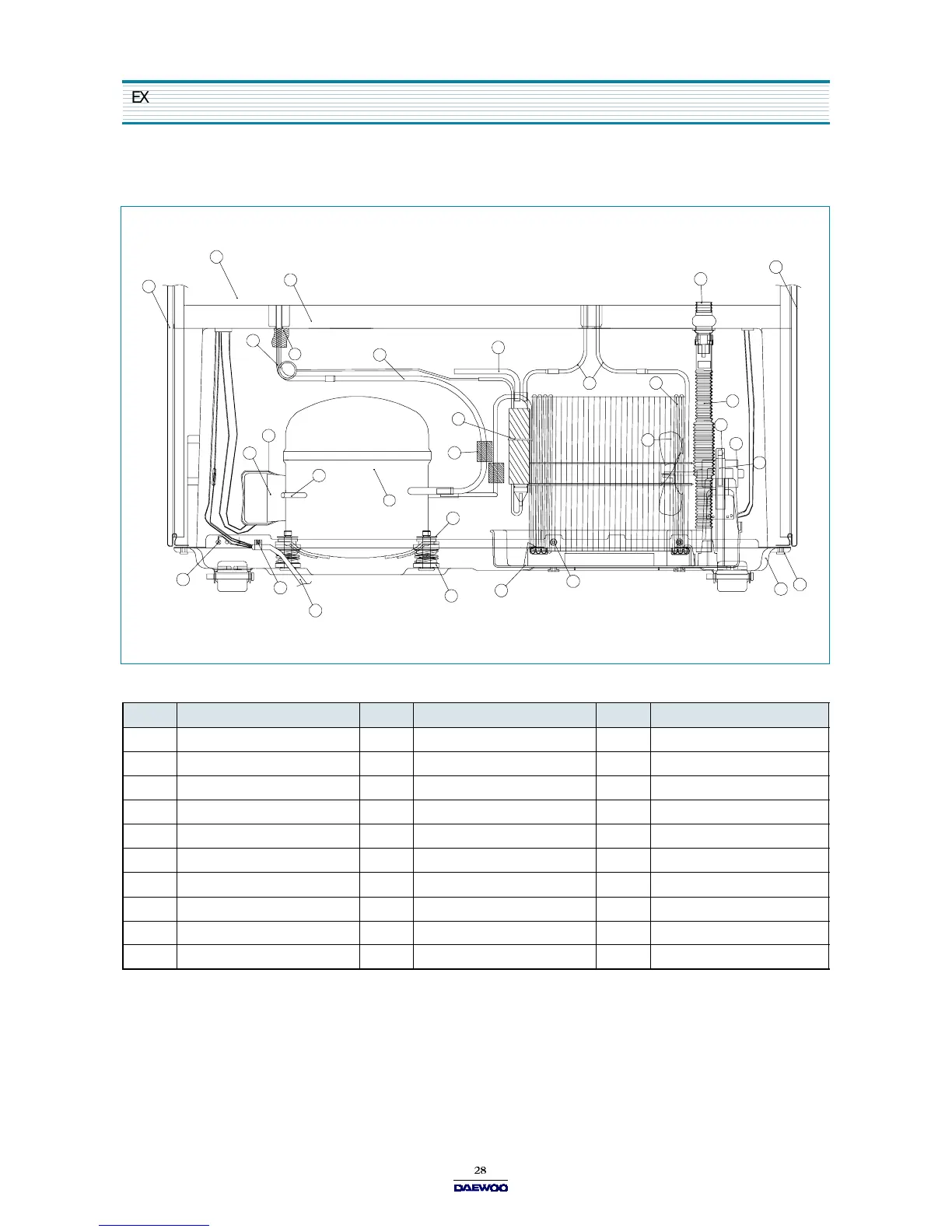

3. MACHINE ROOM EXPLODED VIEW AND PARTS LIST
NO PART NAME NO PART NAME NO PART NAME
1 PLATE CAB *L 11 CABLE TIE 21 HOSE DRN B
2 PLATE CAB *R 12 ABSORBER PIPE 22 CASE VAPORI
3 BASE CAB 13 ABSORBER COMP AS 23 SCREW TAPPING
4 COVER CAB 14 WASHER SPECIAL 24 SCREW MACHINE
5 COMPRESSOR 15 WSWITEC P-RELAY AS 25 CORD POWER AS
6 PIPE WI-CON AS 16 BAND RELAY 26 SCREW TAPPING
7 PIPE HOT 17 ABSORBER PIPE A 27 FIXTURE C MOTOR
8 DRYER AS 18 MOTOR C 28 ABSORBER C MOTOR
9 PIPE SUCTION AS 19 FAN 29 PIPE SERVICE
10 PIPE SUC CONN 20 HOSE DRN A 30 BASE COMP AS
4
2
3
9
12
10
16
15
29
5
26
25
24
14
13
22
23
30
31
21
28
18
27
76
19
8
11
17
20
1
