49
NO
DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE
1 4
2 5
3 6
▷Remove 2 screws.
▷Pull forward Bracket Geared Motor.
▷Unscrew (4 points).
▷Separate 6 pin housing of Bracket
Geared Motor from the top connector.
▷Check Solenoid Valve and Geared Motor.
2) How to Check Hose Ice Maker Tube Assembly
SPEC. CRITERION
▷GOOD : 11.3Ω(±10%)
(10.8 ~ 12.7Ω)
▷DEFECTIVE ;
Change the Geared Motor.
PARTS HOW TO CHECK
▷GOOD : 145Ω(±8%)
(133 ~ 156Ω)
▷DEFECTIVE ;
Change the Cube Sol Valve.
▷Check resistance value of
2 terminals with a Multi Tester.
▷SPEC. NAME
:DAG-6502DEC
▷VOLTAGE
:220/240V,50Hz
▷SPEC. NAME
:Cube SN8
▷VOLTAGE
:220/240V,50Hz
▷Check resistance value of
2 terminals with a Multi Tester.
Geared Motor
Cube Sol Valve

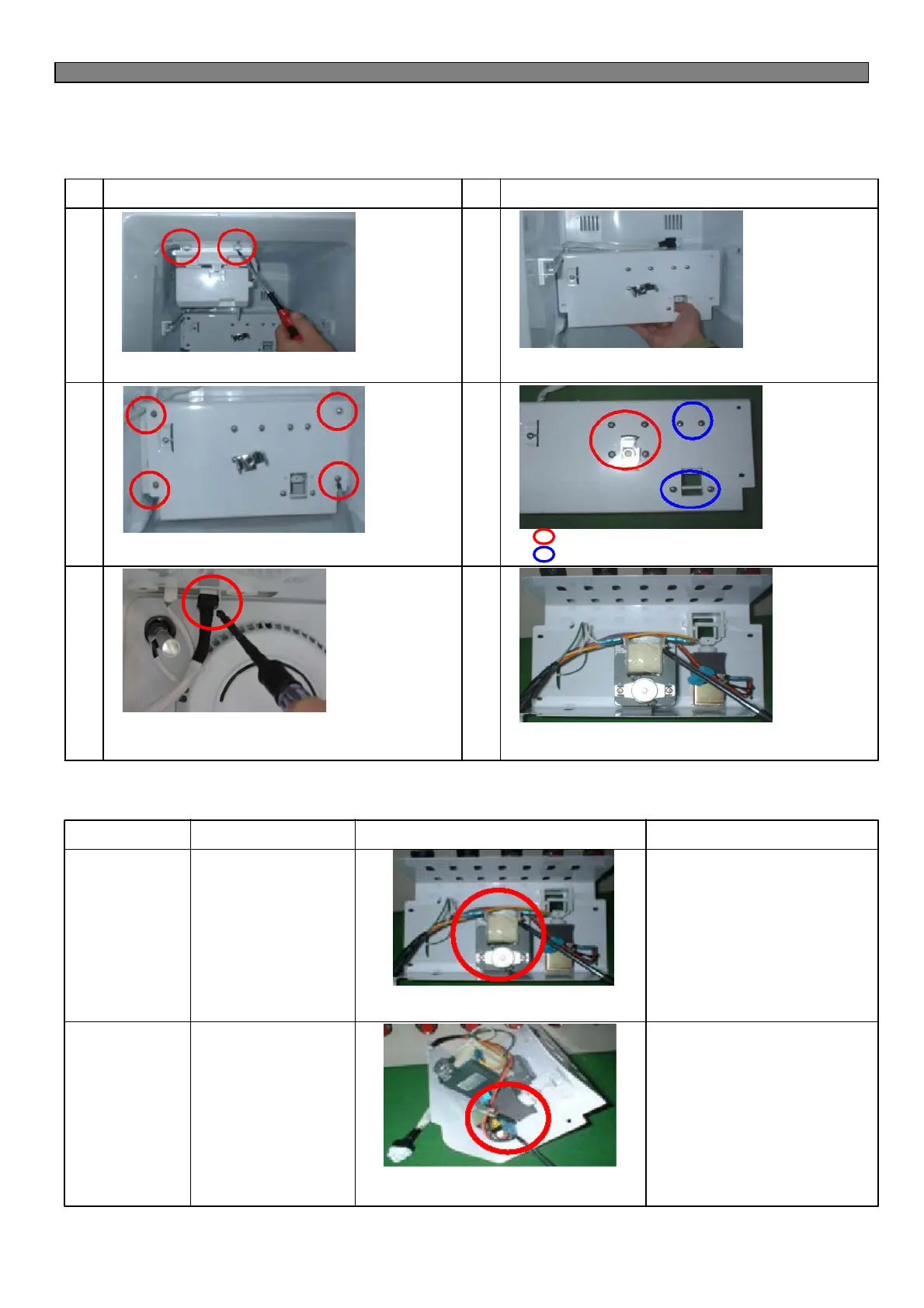

8-2. Bracket Geared Motor Assembly
1) Disassembling Procedure
Unscrew (red 4 screws).
Unscrew (blue 4 screws).
To Next Page
