50
NO
DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE
1 3
2
▷ Insert (-) screw driver into bottom hole of
Dispenser Button Guide.
Pull up forward to remove the guide.
(Be careful not to damage guide surface.)
▷ Remove Micro switch.
2) How to Check Micro Switch
CRITERION
▷GOOD :
▷DEFECTIVE :
Change Micro Switch.
PARTS HOW TO CHECK
SPEC. NAME
: VP333A-OD-8
VOLTAGE
:125V,3A

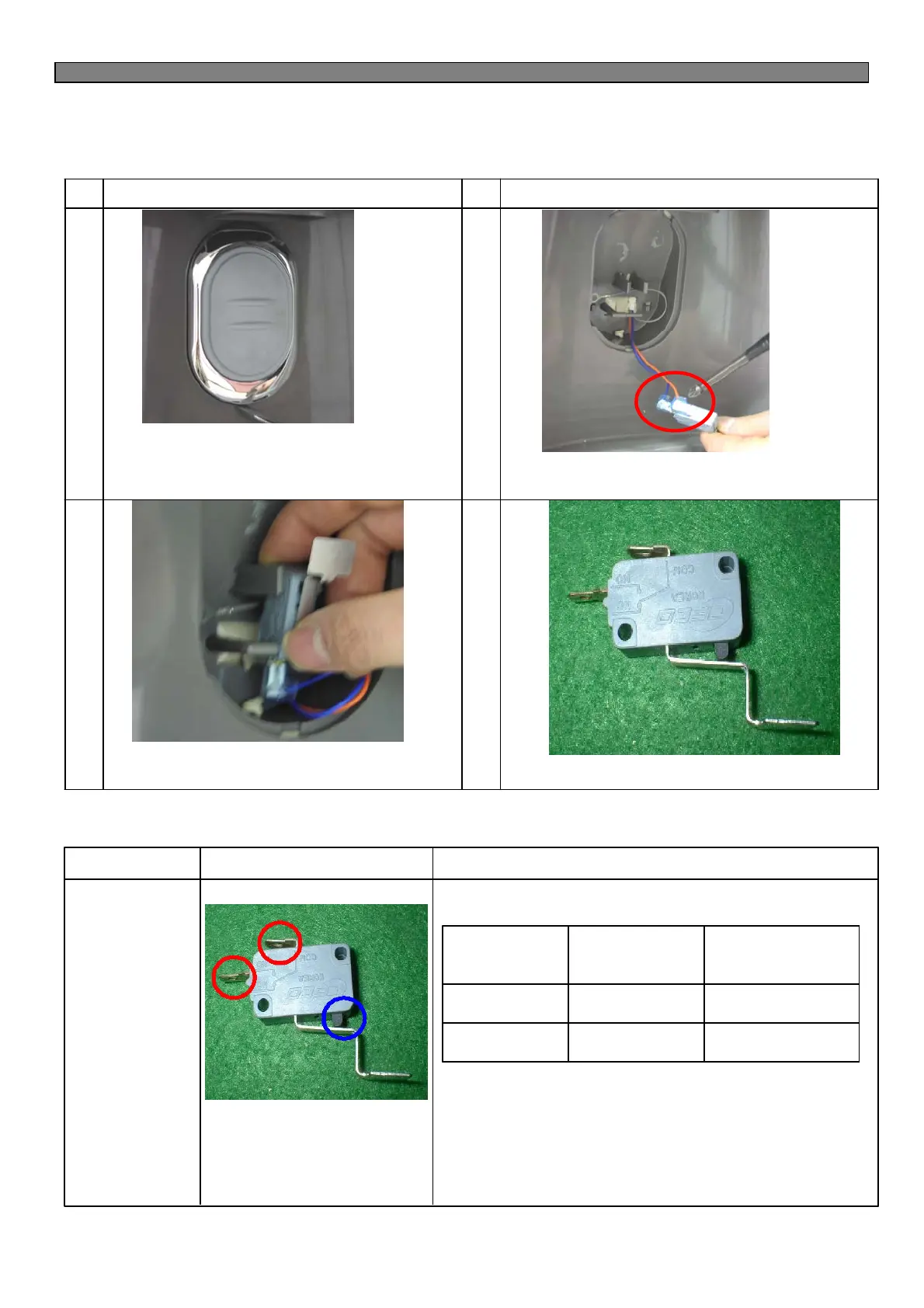

8-3. Dispenser Micro Switch
1) Disassembling Procedure
▷Check both terminals
(red circle) with a Multi Tester
(Tester Mode : Resistance (Ω).
Tact Switch
(Blue Circle)
Terminals
(Red circle)
Tester Result
(Resistance Mode)
ON (Close) Connected Some Value
OFF (Open) Disconnected No value (0)
▷Check Micro Switch.
▷Separate wire connectors
from Micro Switch.
4
To Next Page
