BUILT-IN INSTALLATION INSTRUCTIONS
1. Check Mounting Cabinet Hole to Install Microwave oven.
1) This product is designed to be installed under proper mounting hole size only.

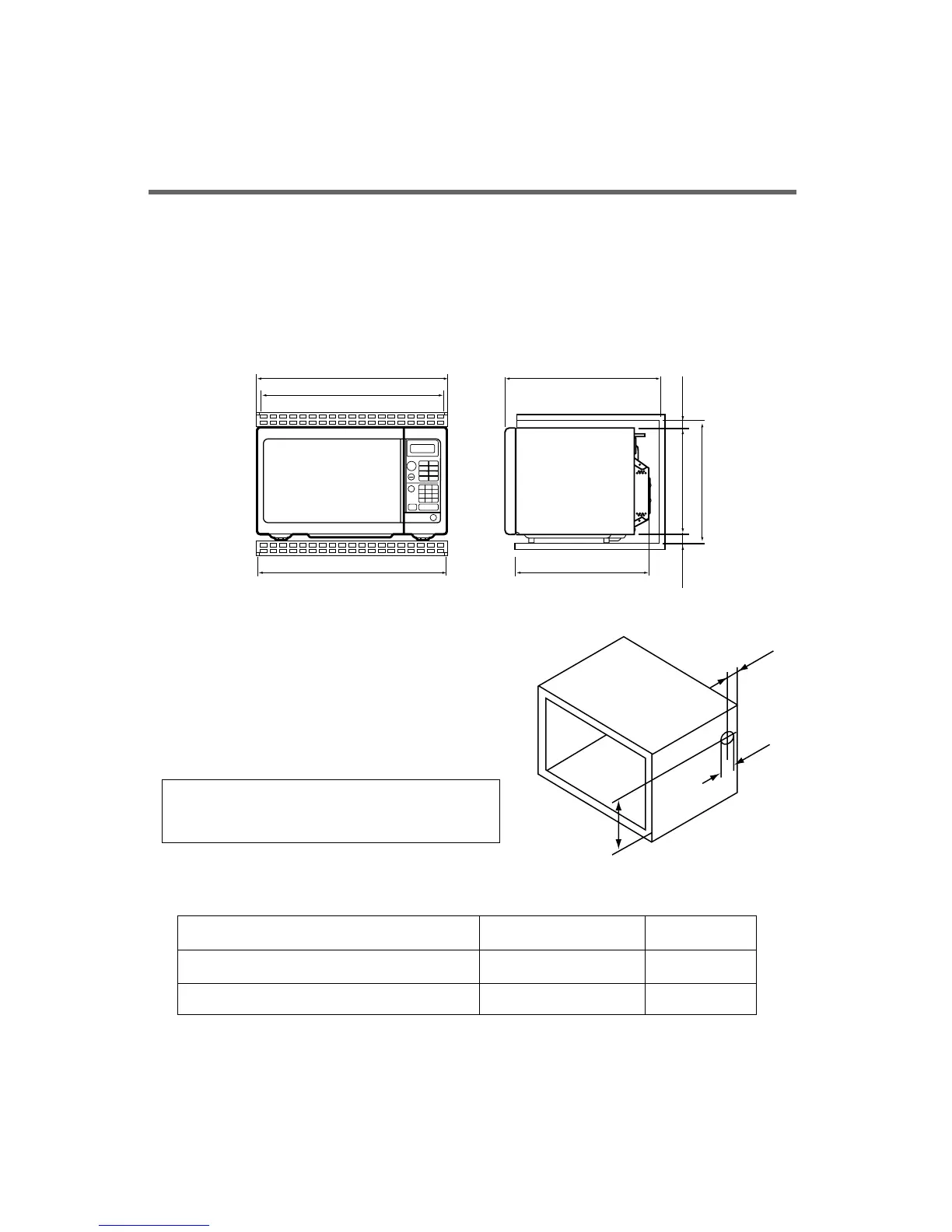

2) Mounting hole dimensions should be provided as below;
Width : 19 1/2 inch (tolerance ± 1/12 inch)
Height : 13 9/10 inch (tolerance ± 1/8 inch)
Depth : 15 3/4 inch (tolerance ± 1/5 inch)
2. Check power supply
1) Check power supply as the Installation
Instructions “5 Power Supply”
2) Make a plug passing hole in the right inside wall
which should be located as illustrated.
More than 1 2/5” dia. is needed for hole.
3) A receptacle should be located at outside mounting
cabinet hold.
3. Check installation parts.
1) The parts the you need for installation of oven in listed as below.
2) Remove all parts from packing box and compare them with the parts list.
SPEEDY
COOK
AUTO
DEF.
More
Less
123
456
78
0
9
POWER
START
STOP/
CLEAR
CLOCK/
A START
POPCORN
MCM980AR
SOUP
MMFAN
BAKED
POTATO
FROZEN
PIZZA
DINNER
PLATE
FRESH
VEGETABLE
BEVERAGE
19.02
M
19.53
M
15.75
M
19.49
M
13.91
M
13.90
M
10.79
M
1.38
M
1.73
M
9.09
M
1.38
M
1.48
M
NOTE : Do not cover or block the opening in
the right side of the mounting cabinet.
PART NAME PART CODE QUANTITY
Front Bracked 3510604200 2
Sponge Blocking Bar 3517002300 1
