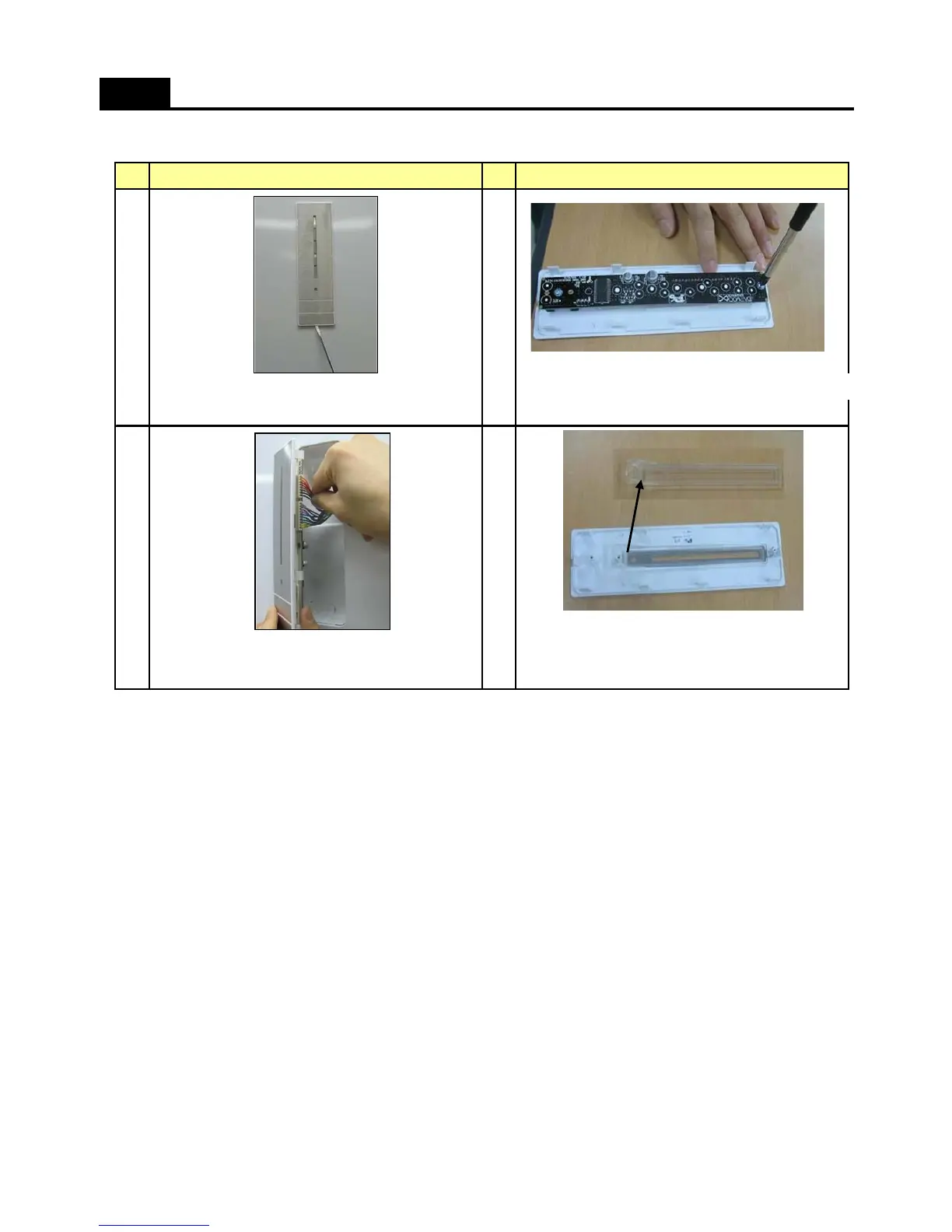

DISASSEMBLY
1. Front PCB
No
No
Put a (-) driver into aperture locating the botton of
Un
screw 2 points with (+) dr
iver and Separate FCP from
Panel F control. ( Be careful not to scratch the surface. )
Panel F control.
Lift up the Panel F control and Disconnect this
from
Deco F control can be separated easily.
housing.
Procedure
3
4
Procedure
1
2
19
19
21
Table of Contents
Model Information
2
Specifications
2
Interior Parts
3
Features Are Model Dependent (below Is RN-425N** Model)
3
Machine (Compressor) Compartment View
4
Refrigerant Cycle
5
Temperature Diagram
6
Vegetable Compartment
6
Freezer Mode
6
Wiring Diagram
7
Main PCB Circuit Diagram
8
Functions
9
Display
9
Operation
9
Temperature Control of Refrigerator Compartment
10
“Temp” Button
10
“S-Cool” Mode
10
Temperature of Freezer Control
10
Defrost Mode
11
Initial Defrost
12
Flow Chart of Defrost Start
12
Function of Low Ambient Temperature (RT)
13
Condition of Low RT
13
Prevention of Compressor Restart
13
Buzzer Sound
13
Time Reduction
14
Demonstration Function
14
Control of R-Sensor off Point
15
Low Cooling Option (Weak Cooling)
15
Error Display
18
Function Key Summary Table
19
Disassembly
20
Front PCB
20
Door Switch
21
Multi-Duct as (in Freshfood Compartment)
21
Freezer Louver as
22
Led Lamp (in Freshfood Compartment)
23
How to Change Door Position
26
Remove the Door as
26
Reverse the Door Accessories
26
Reassemble the Freezer and Refrigerator Door
27
How to Charge R-600A Refrigerant
28
Safety Warning (R-600A Refrigerant Models)
28
Tools
28
Process Summary
29
In Detail Precess
29
Cabinet Compartment
33
Refrigerator & Freezer Compartment
35
Refrigerator & Freezer Door Compartment
36
4
