4–18 FRONT
5. FRONT PILLAR
5-1. GENERAL DESCRIPTION
The front pillar area is part of the frame door opening
panel. It's connected to the roof, windshield, door hinges
and floor frame and is important as a support for the
front side of the cabin. Connection of the front pillar
determines the position of the windshield and front door.
Align the fender, door and windshield while the front
pillar is temporary mounted, and check the clearances
and level differences.

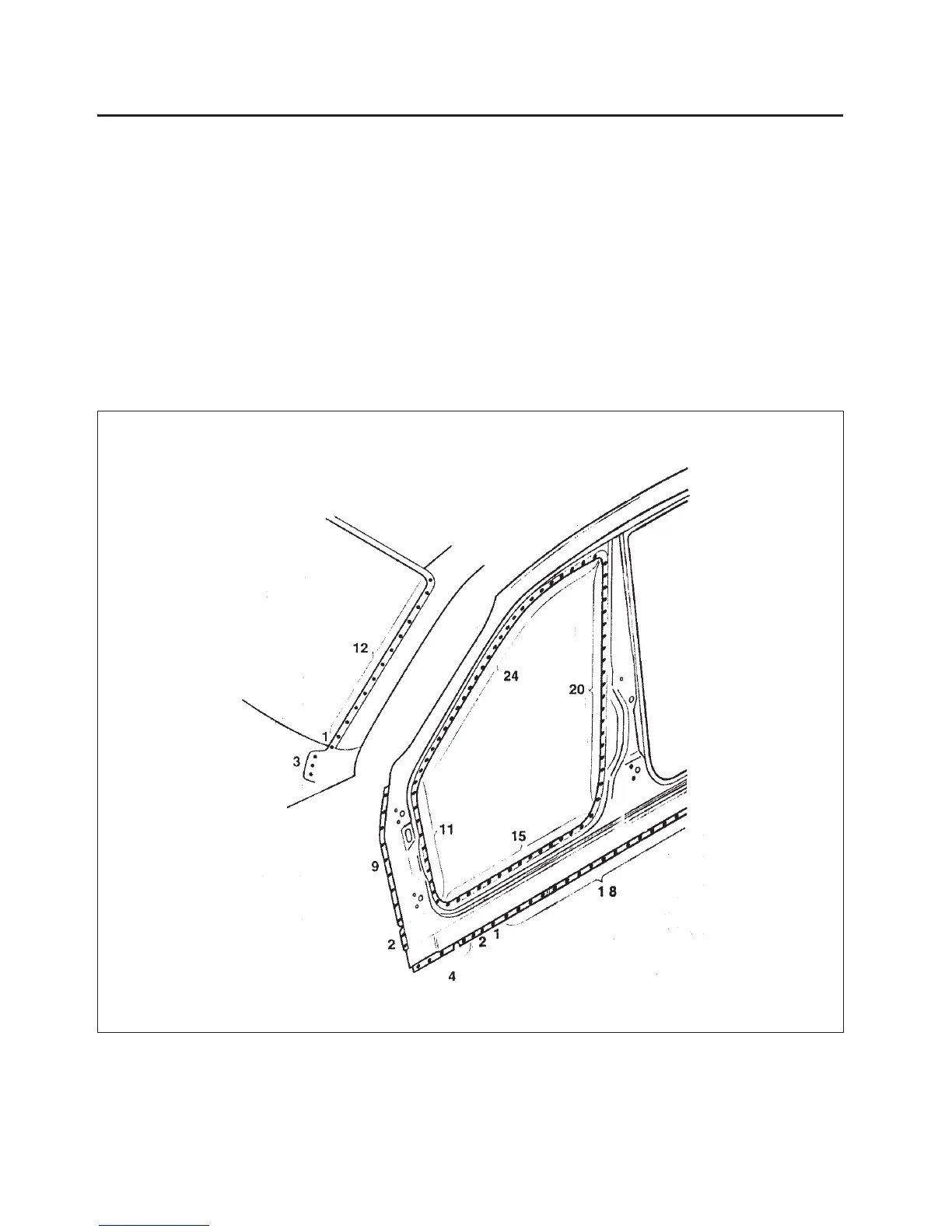

Fig. 26 Front Pillar Welding Assembly
