FENDER, HOOD AND TRUNK LID 7–3
6. Apply the mastic sealer.
• Apply the mastic sealer to the mounting bolts.
NOTE: Before apply the new sealer, check the cur-
rent sealer status.
7. Preinstall the fender.
• Fasten to the wheelhouse at two places with bolts.
Close the hood and check the front and rear clear-
ances and level differences of the hood and door.
Fig. 4
8. Tighten fully.
• After checking and adjusting the mounting posi-
tion, tighten all bolts fully.
9. Install the related parts.
• Install in the reverse order in which they were re-
moved.
10.Check clearance
• Check clearance of front bumper.

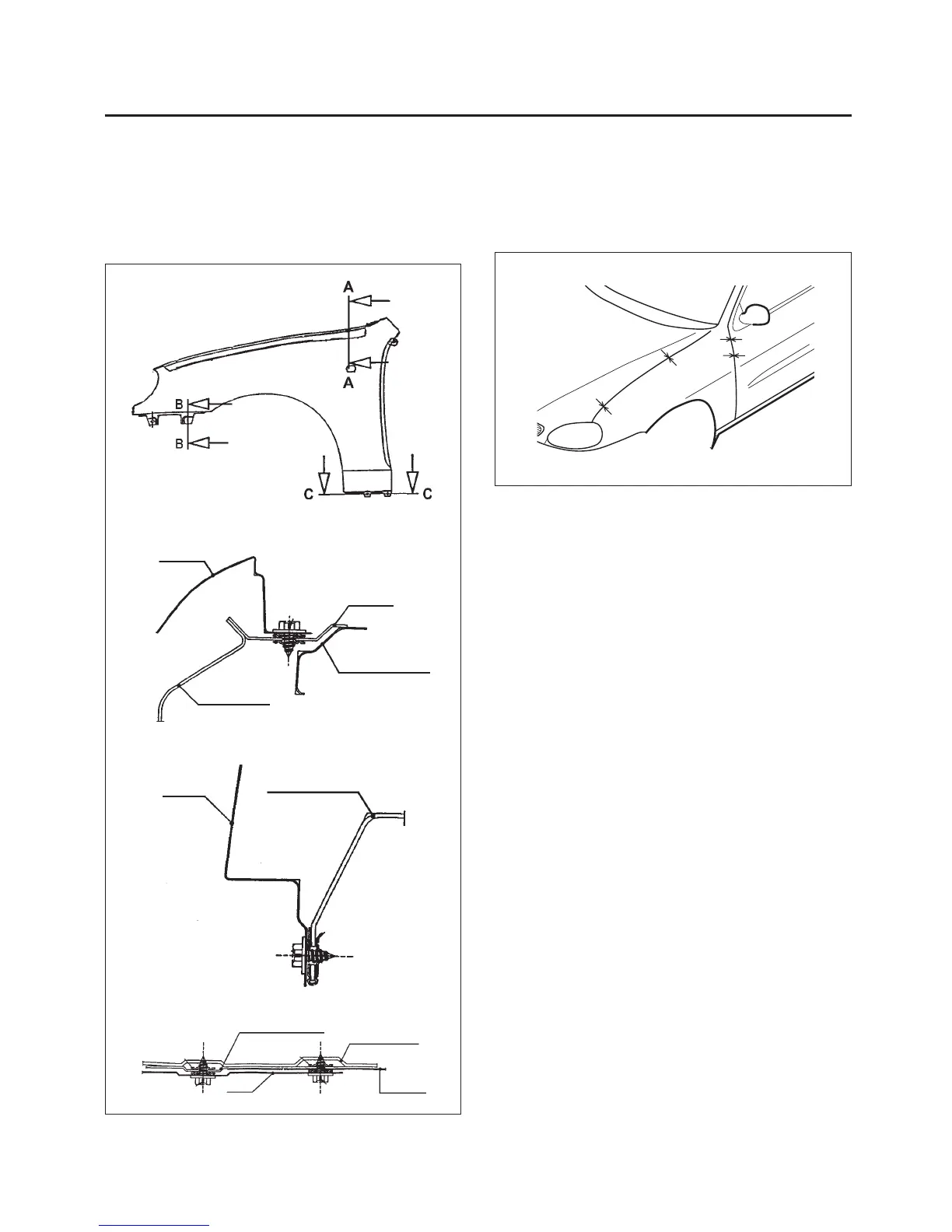

Fig. 3
FENDER
SECT AA
FENDER
DASH-TOP
REINF-HOOD, HINGE
BRACE-W/HOUSE
SECT BB
BRACKET-FENDER
FENDER
SECT CC
REINF-FRT PILLAR LWR
To Next Page
