Daikin Altherma 3 R F+W Operation Manual

4 Operation
Operation manual
7
EHBH/X04+08EA/EJ6V+9W + EHVH/X04+08S(U)18+23EA/EJ3V
+6V+9W
Daikin Altherma 3 R F+W
4P629084-2 – 2020.08

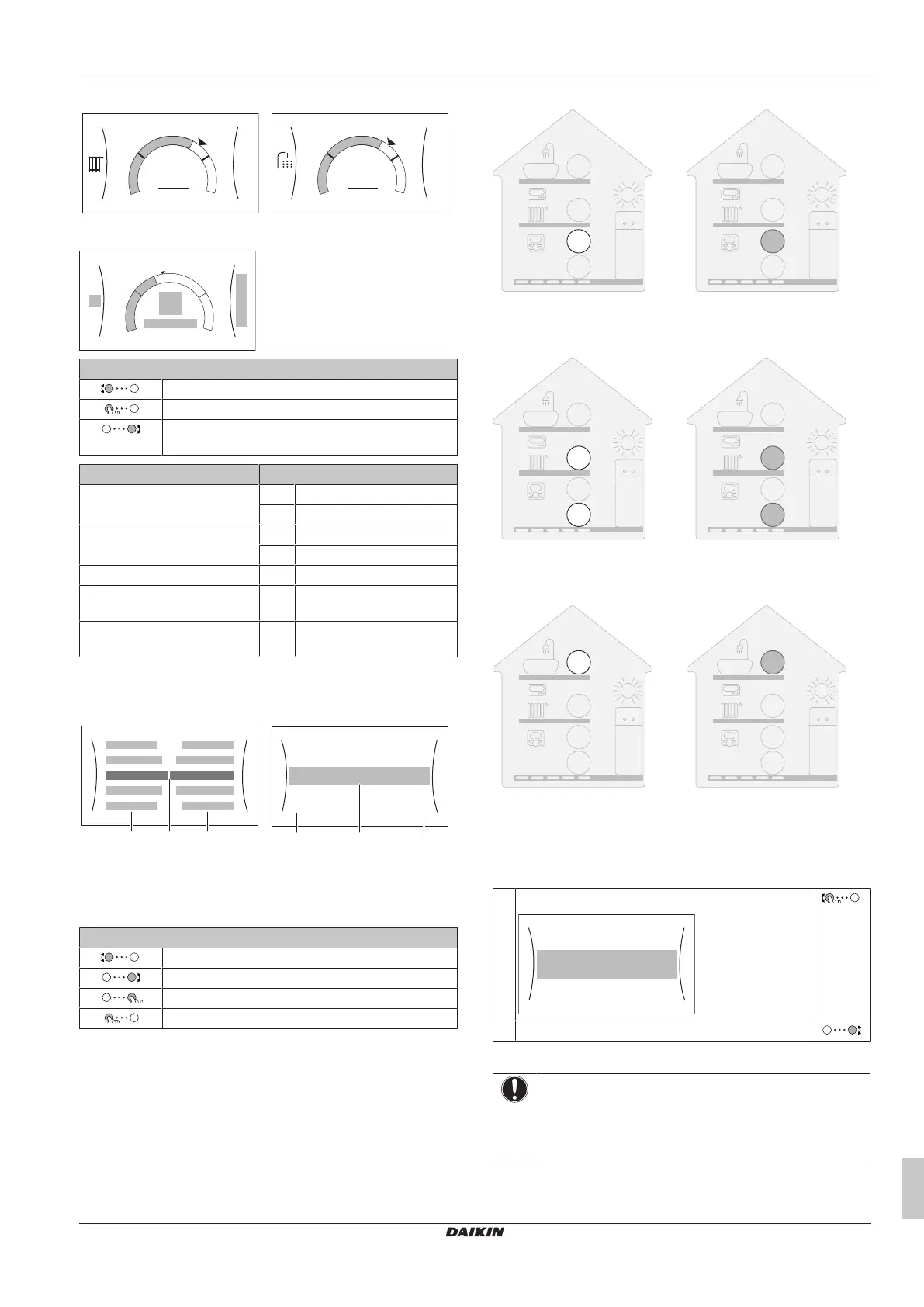

[3] Additional zone screen
+
–
45°C
3
Additional zone
[5] Tank temperature screen
+
–
50°C
5
Tank
Explanation
a1
d
+
–
d
e
d
e
c
a2
b1
b2
Possible actions on this screen
Go through the list of the submenu.
Go to the submenu.
Adjust and automatically apply the desired
temperature.
Item Description
Minimum temperature limit a1 Fixed by the unit
a2 Restricted by the installer
Maximum temperature limit b1 Fixed by the unit
b2 Restricted by the installer
Current temperature c Measured by the unit
Desired temperature d Turn the right dial to
increase/decrease.
Submenu e Turn or press the left dial to
go to the submenu.
4.2.4 Detailed screen with values
Example:
a bc
a bc
7.2.1
Time/date
Hours
11
30
Minutes
a Settings
b Values
c Selected setting and value
Possible actions on this screen
Go through the list of settings.
Change the value.
Go to the next setting.
Confirm changes and proceed.
4.3 Turning operation ON or OFF
4.3.1 Visual indication
Certain functionalities of the unit can be enabled or disabled
separately. If a functionality is disabled, the corresponding
temperature icon in the home screen will be greyed out.
Room temperature control
1.6
bar
55
21
35
45
a
1.6
bar
55
21
35
45
b
a Room temperature control ON
b Room temperature control OFF
Space heating/cooling operation
1.6
bar
55
21
35
45
c
1.6
bar
55
21
35
45
d
c Space heating/cooling operation ON
d Space heating/cooling operation OFF
Tank heating operation
1.6
bar
55
21
35
45
e
1.6
bar
55
21
35
45
f
e Tank heating operation ON
f Tank heating operation OFF
4.3.2 To turn ON or OFF
Room temperature control
1 Go to [C.1]: Operation > Room.
Operation
Room
Space heating/cooling
On
On
C.1
2 Set operation to On or Off.
Space heating/cooling operation
NOTICE
Room frost protection. Even if you turn OFF space
heating/cooling operation ([C.2]: Operation > Space
heating/cooling), room frost protection –if enabled– will
remain active.
