Field Setting SiAU18-715

144 Test Operation

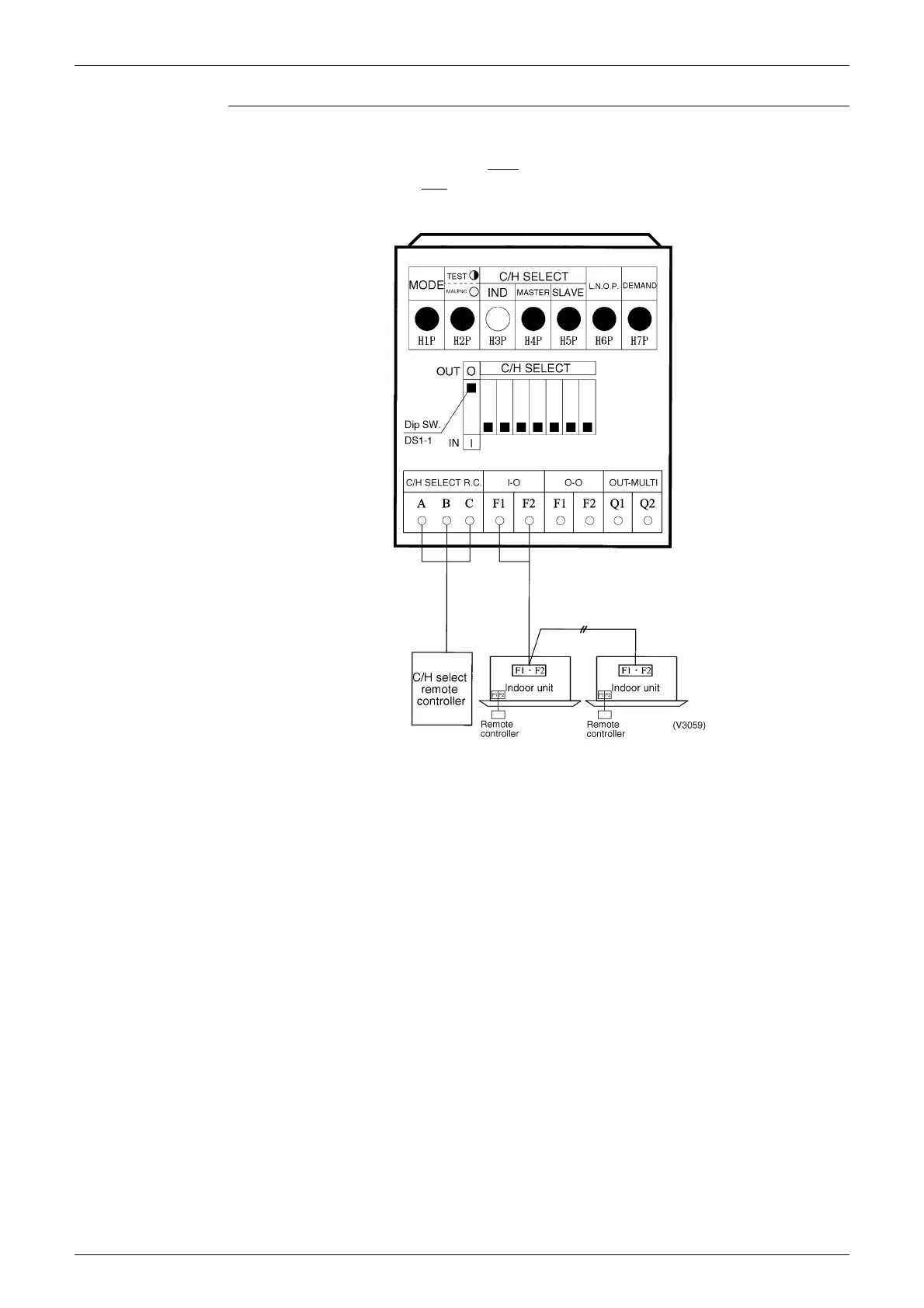

d Set Cool / Heat Separately for Each Outdoor Unit System by Cool/Heat Switching Remote Controller



It does not matter whether or not there is outdoor - outdoor unit wiring.



Set outdoor unit PC board DS1-1 to OUT (factory set).



Set cool/heat switching to IND (individual) for “Setting mode 1” (factory set).
