6 | Unit installation

Installer reference guide

CVXM20+FVXM25~50A2V1B

Split system air conditioners

4P625991-1 – 2020.06

23 When the complete installation is finished, attach the front panel and the

front grille in their original position.

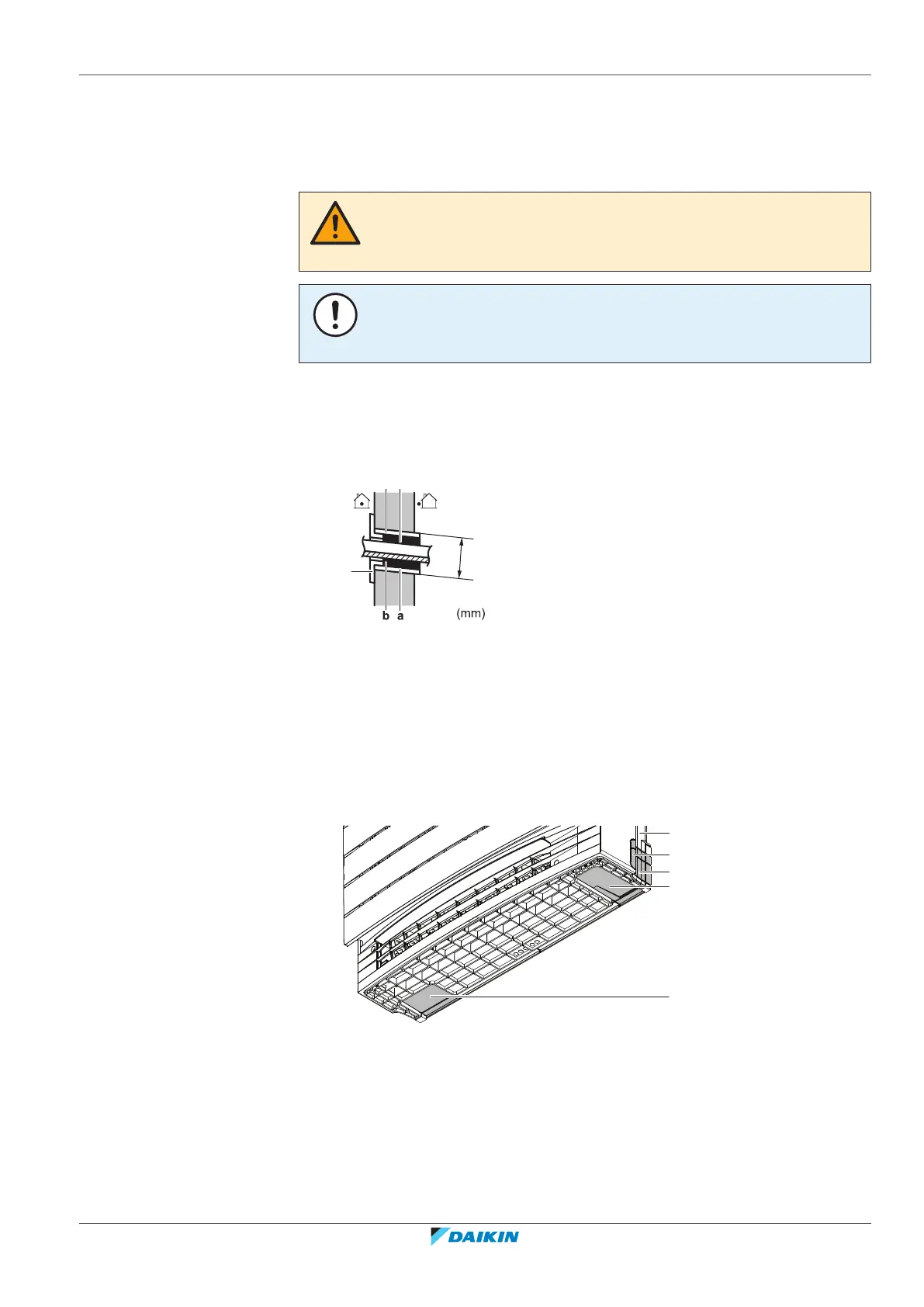

6.3.2 To drill a wall hole

CAUTION

For walls containing a metal frame or a metal board, use a wall embedded pipe and

wall cover in the feed-through hole to prevent possible heat, electrical shock, or fire.

NOTICE

Be sure to seal the gaps around the pipes with sealing material (field supply), in order

to prevent water leakage.

1 Bore a 65 mm large feed-through hole in the wall with a downward slope

towards the outside.

2 Insert a wall embedded pipe into the hole.

3 Insert a wall cover into the wall pipe.

Ø65

a Wall embedded pipe

b Putty

c Wall hole cover

4 After completing wiring, refrigerant piping and drain piping, do NOT forget to

seal the gap with putty.

6.3.3 To remove the slit portions

For side piping (left/right) and bottom piping (left/right) slit portions must be

removed. Remove slit portions according to where the piping is taken out.

a Bottom frame

b Slit portion for side piping on the front grille (same on the other side)

c Slit portion for side piping on the bottom frame (same of the other side)

d Slit portion for the bottom piping

1 Cut off the slit portion using nippers.
