LRYEQ16A7Y1 + LCBKQ3AV1(E)
CONVENI-PACK
4P448940-1A – 2016.07
Operation manual
4
Do not operate the CONVENI-PACK when using
a room fumigation - type insecticide.
Failure to observe could cause the chemicals to
become deposited in the unit, which could
endanger the health of those who are hypersen-
sitive to chemicals.
Never press the button of the remote controller
with a hard, pointed object.
The remote controller may be damaged.
Never pull or twist the electric wire of a remote
controller.
It may cause the unit to malfunction.
Never touch the internal parts of the controller.
Do not remove the front panel. Touching certain
internal parts will cause electric shocks and dam-
age to the unit. Please consult your dealer about
checking and adjustment of internal parts.
Do not leave the remote controller wherever
there is a risk of wetting.
If water gets into the remote controller there is a
risk of electrical leakage and damage to elec-
tronic components.
Watch your steps at the time of air filter clean-
ing or inspection.
High-place work is required, to which utmost
attention must be paid.
If the scaffold is unstable, you may fall or topple
down, thus causing injury.
There is a possibility that periodic inspec-
tions for refrigerant leakage are sched-
uled. Consult your local dealer for more
information.
[Installation site]
Is the unit installed in a well-ventilated place
with no obstacles around?
Do not use the product in the following
places.
a. Places with mineral oil, such as cutting oil.
b. Places directly exposed to seawater spray and
briny air.
c. Places where sulphide gas is generated, such
as hot springs.
d. Places with radical voltage fluctuations, such as
factories.
e. In vehicles or on board ships.
f. Places with sprays of oil or excessive steam,
such as kitchens.
g. Places with machines generating electromag-
netic waves.
h. Places with acid gas, alkaline gas, or steam.
i. Places with poor drainage.
j. Places in potentially explosive atmosphere.
Install the unit, power supply wiring, trans-
mission wiring and refrigerant piping at least
1 meter away from televisions, radios and ste-
reo sets.
Otherwise, the picture and sound may be inter-
fered with noise.
Are snow protection measures taken?
For detailed arrangements, such as the installa-
tion of a snow protection hood, consult your
dealer.
Is there no clearance around the through hole
between the internal and external units?
The chilled air will leak from the clearance and
the cooling efficiency of the unit will be degraded.
Is service space secured?
[Electrical work]
Do not attempt to conduct electrical work or
grounding work unless you are licensed to do
so.
Consult with your dealer for electrical work and
grounding work.
Check that the power supply is suitable to the
unit and that an exclusive circuit is provided
to the unit.
Check the electric capacity and voltage.

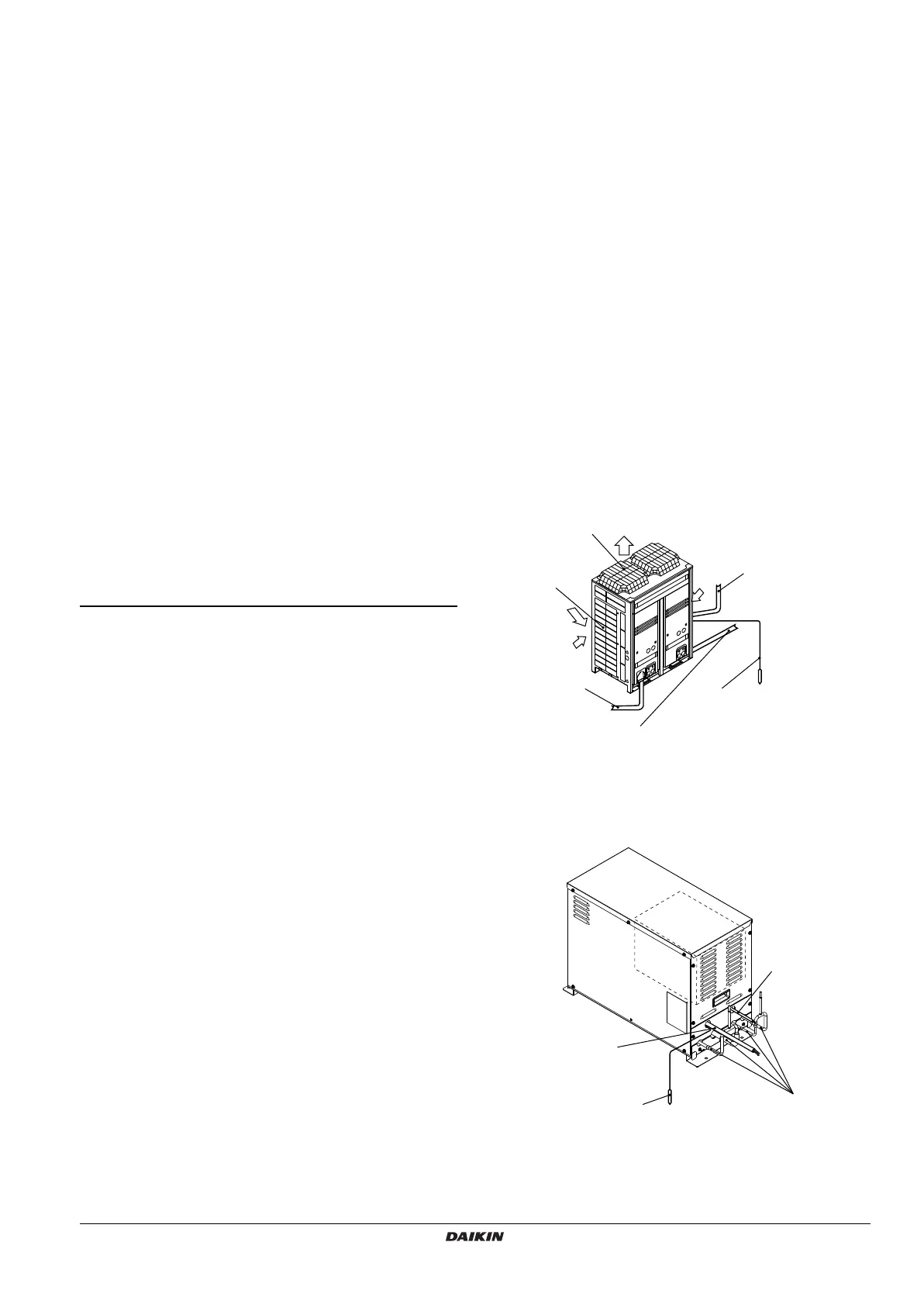

2. NAME OF PART
2-1
In the case of LRYEQ16A7Y1
2-2 In the case of LCBKQ3AV1(E)
Air outlet
Fan
Air inlet
Heat exchanger
(aluminium fin)
Transmission
wiring
Refrigerant
piping
Earth wire
A wire that makes the system
safe by connecting the outdoor
unit to the ground for the
prevention of electric shocks
or fire resulting from electric
leakage.
Power supply wires
(to dedicated earth
leakage breaker)
Power supply wires
(to dedicated earth
leakage breaker)
Earth wire
A wire that makes the system
safe by connecting the outdoor
unit to the ground for the
prevention of electric shocks
or fire resulting from electric
leakage.
Refrigerant
piping
Transmission
wiring
4PEN448940-1A.book Page 4 Thursday, August 25, 2016 11:23 AM
