Daikin LRYEQ16A7Y1 User Manual

LRYEQ16A7Y1 + LCBKQ3AV1(E)
CONVENI-PACK
4P448940-1A – 2016.07
Operation manual
6
10.Display “ ” (under centralized
control)
When this display shows, the system is under
centralized control. (This is not a standard
specification.)
11.Display “ ” (fan speed)
This display shows the fan speed you have
selected.
12.Display “ ” (time to clean air filter)
Refer to the operation manual of indoor unit.
13.Display “ ” (defrost/hot start)
Refer to the chapter “Operation procedure -
Explanation of heating operation.”
14.Timer mode start/stop button
Refer to the chapter “Operation procedure -
Programming start and stop of the system with
timer.”
15.Timer on/off button
Refer to the chapter “Operation procedure -
Programming start and stop of the system with
timer.”
16.Inspection/test operation button
This button is only used by qualified service
persons for maintenance purposes.
17.Programming time button
Use this button for setting the programming
start and/or stop time.
18.Temperature setting button
Use this button for setting the desired tempera-
ture.
19.Filter sign reset button
Refer to the operation manual of indoor unit.
20.Fan speed control button
Press this button to select the fan speed of your
preference.
21.Operation mode selector button
Press this button to select the operation mode
of your preference.
22.Air flow direction adjust button
Refer to the chapter “Operation procedure -
Adjusting the air flow direction”.
23.Fan only/air conditioning selector switch
Set the switch to “ ” for fan only operation or
to “ ” for heating or cooling operation.
24.Cool/heat changeover switch
Set the switch to “ ” for cooling operation or
to “ ” for heating operation.
25.Thermistor
It sense the room temperature around the
remote controller.
26.These button are used when the ventilation
unit are installed (These are optional acces-
sories)
Refer to the operation manual of the ventilation
unit.
NOTE
• In contradistinction to actual operating situa-
tions, the display on figure 2 shows all possible
indications.
• Figure 1 shows the remote controller which is
opened the cover.
5. OPERATION PROCEDURE
• Operation procedure varies according to the com-
bination of outdoor unit and remote controller.
Read the chapter “What to do before operation”.
• To protect the unit, turn on the main power switch
6 hours before operation.
• And do not turn off the power supply during the
air conditioning season because of smoothly
start up.
• If the main power supply is turned off during
operation, operation will restart automatically
after the power turns back on again.
5-1 COOLING, HEATING, AUTOMATIC AND
FAN ONLY OPERATION

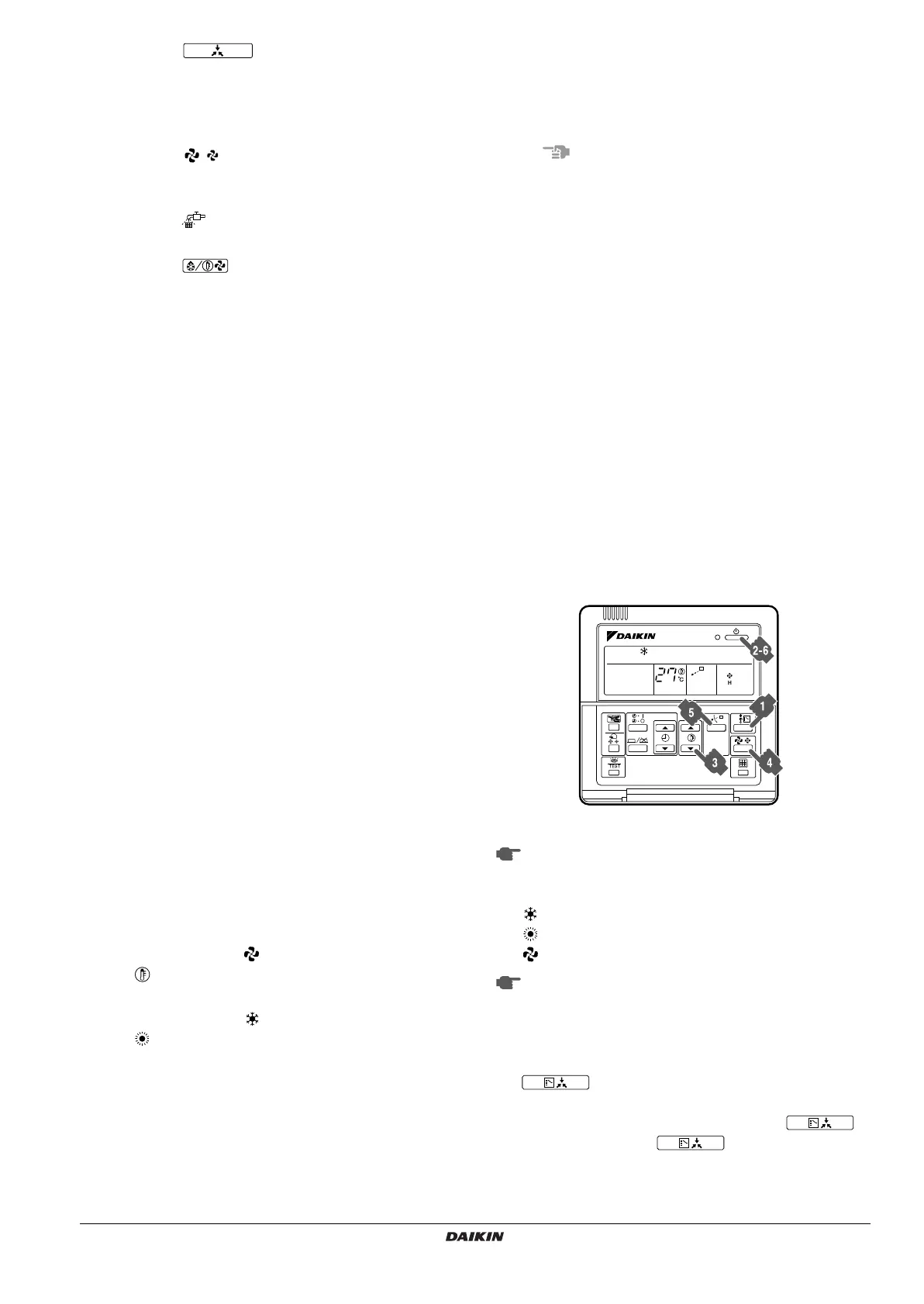

Fig.2
Press the operation mode selector button
several times and select the operation mode
of your choice;
• “ ” Cooling operation
• “ ” Heating operation
• “ ” Fan only operation
Press the on/off button.
The operation lamp lights up and the system
starts operation.
•
The operation mode cannot be changed with the
remote controller whose display shows
“ ” (changeover under control).
Change the operation mode with the remote con-
troller whose display does not show “ ”.
• When the display “ ” (changeover
under control) flashes, refer to the chapter
“Operation procedure - Setting the master
remote controller”.
1
2
4PEN448940-1A.book Page 6 Thursday, August 25, 2016 11:23 AM
