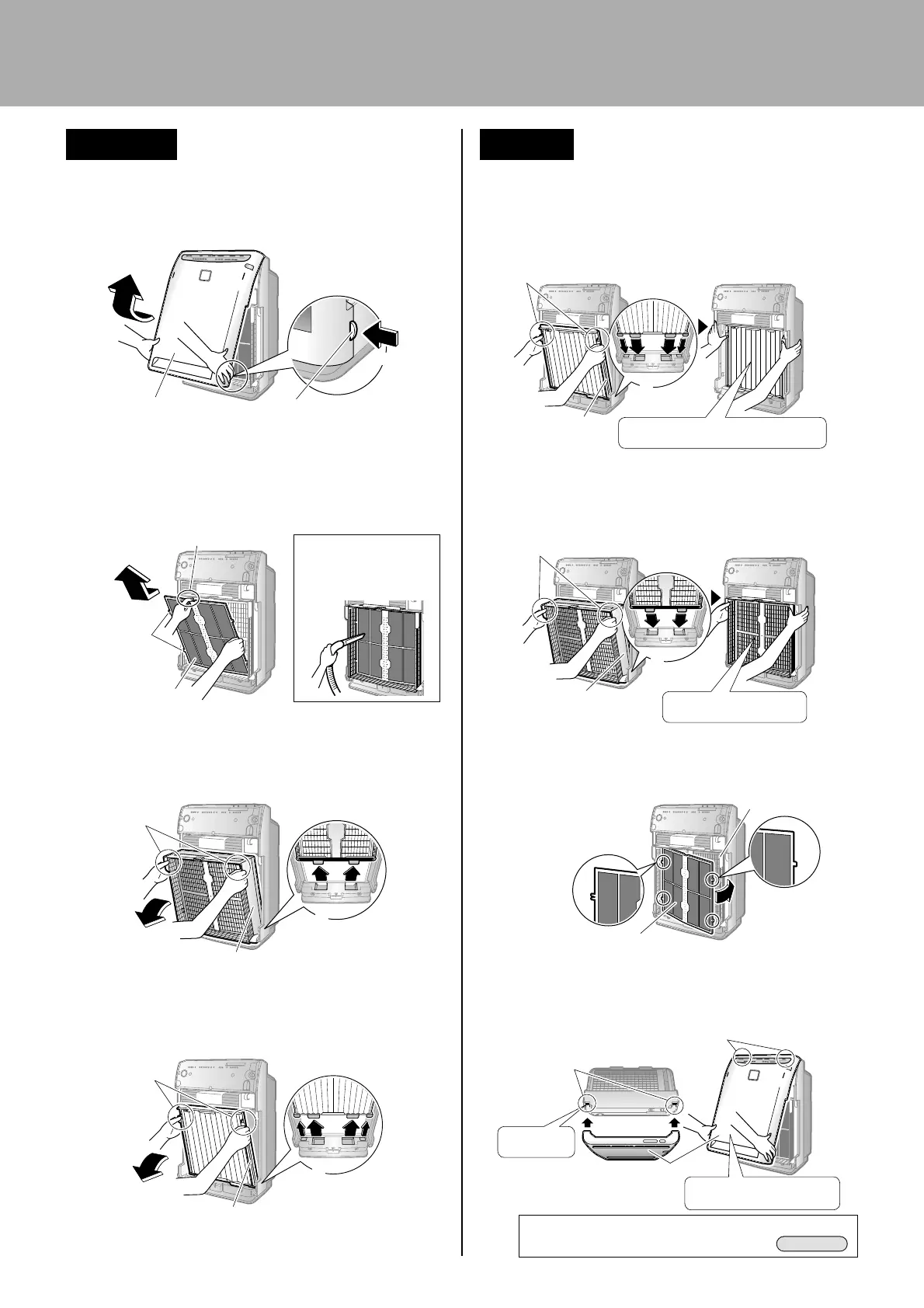

Removing and Attaching Each Part
Remove
Remove the front panel.1
Push the 2 clips (right and left), and pull the front panel •
upward and remove it.
Push
Clip
(1 each on right and left)
Front panel
Remove the prefi lter.2
Hold the indent and pull the prefi lter. Then, unhook the •
tabs (4 locations) of the prefi lter from the holes (2 each on
the right and left) of UNIT1.
Pull the prefi lter to remove it.
Tabs
(2 each on
right an left)
Prefi lter
Note
Use a vacuum cleaner to
remove the dust before
removing the prefi lter.
Remove UNIT1.3
Holding UNIT1 by the handles, pull UNIT1 upward and •
remove it.
Handles
UNIT1
1)
Pull
2)
Up
Remove the deodorising catalyst unit.4
Holding the deodorising catalyst unit by the handles, pull •
the deodorising catalyst unit upward and remove it.
Handles
Deodorising catalyst unit
1)
Pull
2)
Up
Attach
Attach the deodorising catalyst unit. 1
Holding the deodorising catalyst unit by the handles, fi t the •
projections into the grooves (4 locations) at the bottom of
the main unit and, press the deodorising catalyst unit into
the main unit.
Handles
Deodorising
catalyst unit
1)
Fit here.
2) Press the deodorising catalyst unit
until you hear clicking sound.
Attach UNIT1.2
Holding UNIT1 by the handles, fi t the projections into the •
grooves (2 locations) at the bottom of the main unit, and
press UNIT1 into the main unit.
Handles
UNIT1
1)
Fit here.
2) Press UNIT1 until you
hear clicking sound.
Attach the prefi lter.3
Fit the tabs (4 locations) of the prefi lter into the holes •
(2 each on the right and left) of UNIT1.
Prefi lter
Other tabs
(3 locations)
Upper left tab (1 location)
(The upper left tab is shaped
differently from the others.)
UNIT1
Attach the front panel. 4
Fasten the top hooks (2 locations) of the front panel to the •
top grooves (2 locations) of the main unit and then close
the front panel.
Front panel
Top hooks (2 locations)
2) Press the front panel until
you hear clicking sound.
1) Fasten the
hooks.
Top grooves
(2 locations)
[View from above]
If the front panel is improperly set, the safety switch
may be activated. Operation may not start.
Page 16.
►
