4 | About the box
Installer reference guide
17
CVXM20A + FVXM25~50A
Split system air conditioners
4P625991-1C – 2021.09

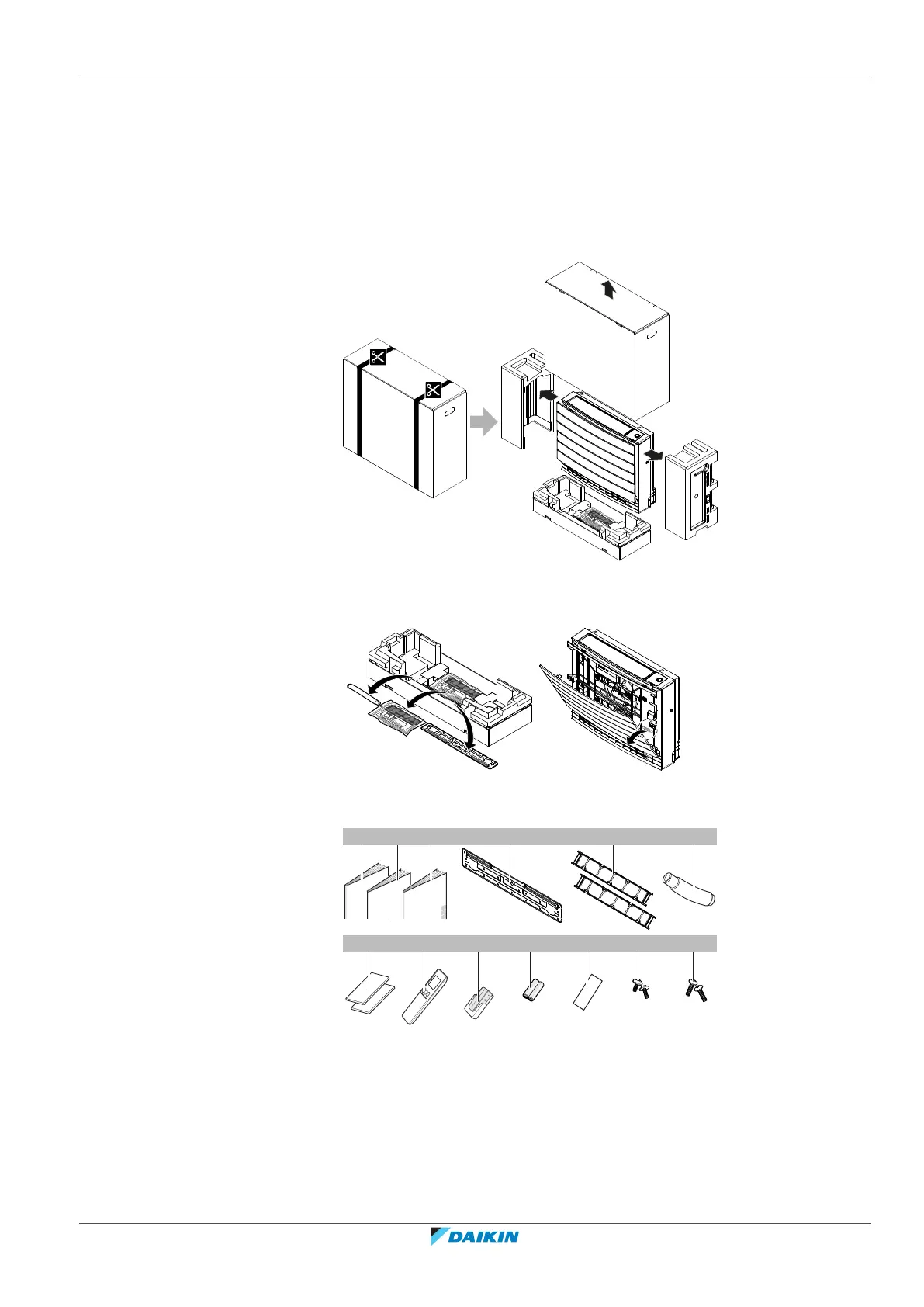

4 About the box
4.1 Indoor unit
4.1.1 To unpack the indoor unit
4.1.2 To remove the accessories from the indoor unit
1 Remove the accessories located at the bottom of the package. Spare SSID
sticker is located on the unit.
1× 2×1× 1× 1×1×
2× 1× 2×1×
edb ca f
1×2× 2×
j k lih
g
m
a Installation manual
b Operation manual
c General safety precautions
d Mounting plate (attached to the unit)
e Titanium apatite deodorising filter
f Drain hose
g Insulation piece
h User interface
i User interface holder
j Dry battery AAA.LR03 (alkaline) for user interface
k Spare SSID sticker (attached to the unit)
