6 | Unit installation
Installer reference guide
25
CVXM20A + FVXM25~50A
Split system air conditioners
4P625991-1C – 2021.09
4×
b
a
a Front grille
b Tabs

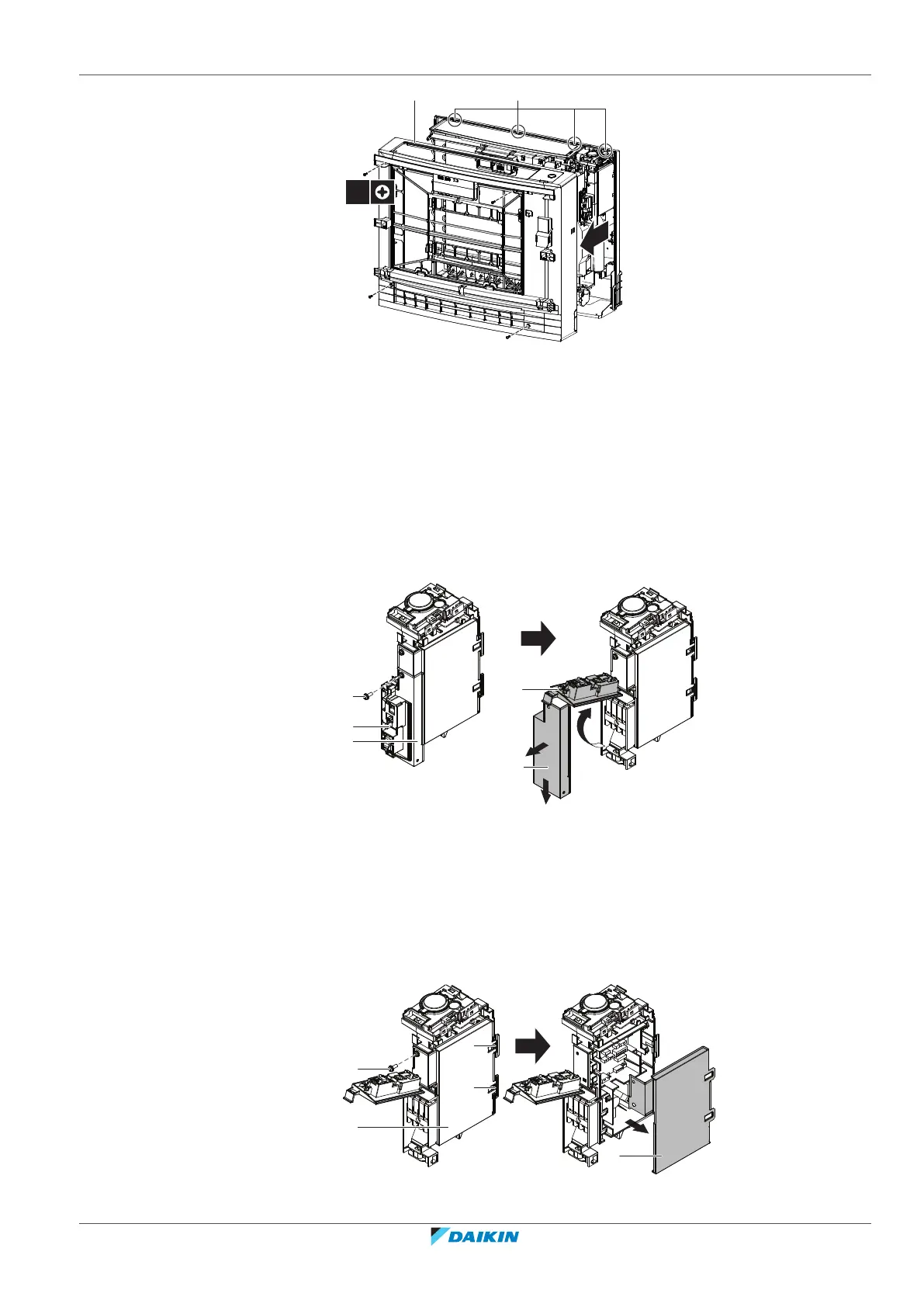

6.2.3 To open the terminal block and remove the electrical wiring box cover
To open the terminal block
1 Remove the front grille.
2 Remove 1 lower screw.
3 Lift the sensor securing plate.
4 Move the metal plate cover down and then towards you to remove it.
c
b
c
b
a
1
2
3
a Screw
b Sensor securing plate
c Metal plate cover
To remove the electrical wiring box cover
1 Open the terminal block.
2 Remove 1 screw from the electrical wiring box.
3 Unhook the 2 tabs on the electrical wiring box cover and remove it.
b
a
c
c
b
a Screw
