English

Installation of indoor unit

Step one: choosing installation location

Recommend the installation location to the client and then confirm it with the client.

Step two: install wall-mounting frame

1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the

level meter and then point out the screws fixing holes on the wall.

2. Drill the screw fixing holes on the wall with impact drill (the specification of drill

head should be the same as the plastic expansion particle) and then fill the plastic

expansion particles in the holes.

3. Fix the wall-mounting frame on the wall with tapping screws (ST4.2X25TA) and

then check if the frame is firmly installed by pulling the frame. If the plastic

expansion particle is loose, please drill another fixing hole nearby.

Step three: open piping hole

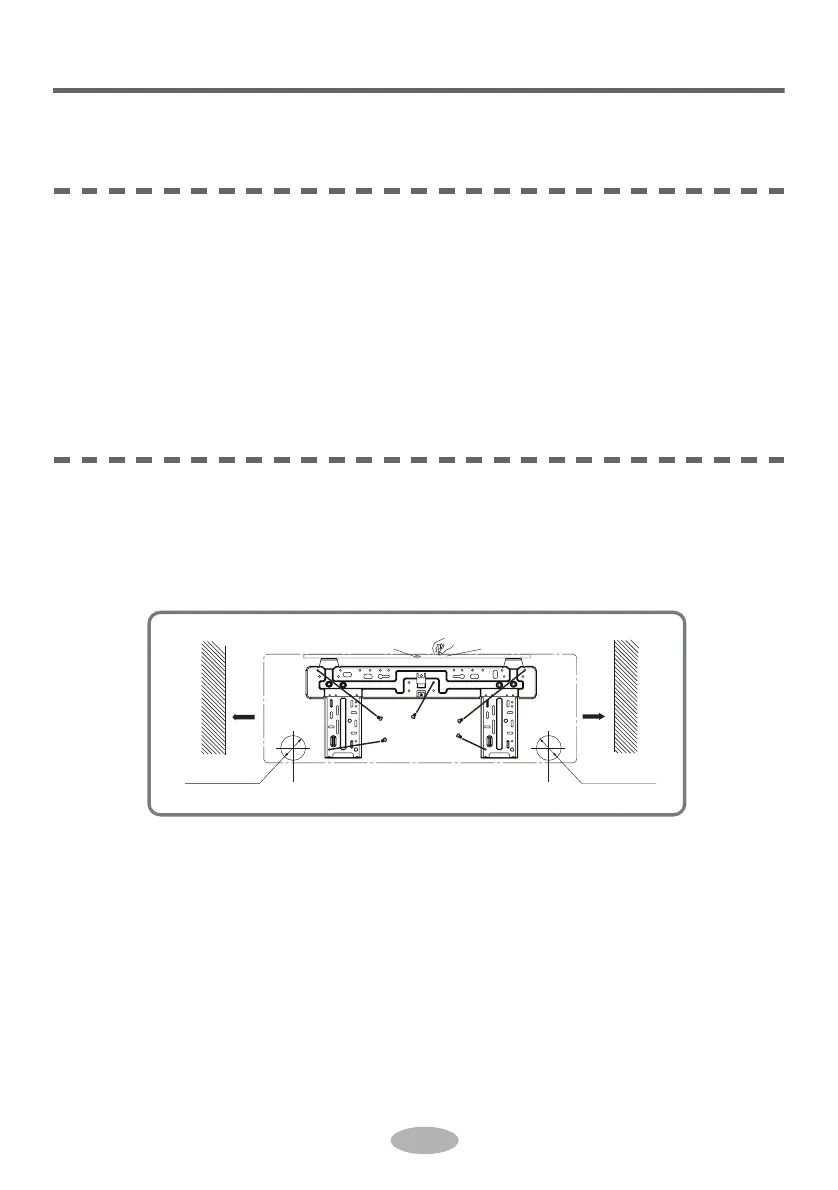

1. Choose the position of piping hole according to the direction of outlet pipe.

The position of piping hole should be a little lower than the wall-mounted frame,

shown as below.

2. Open a piping hole with the diameter of Ø55 or Ø70 on the selected outlet pipe

position. In order to drain smoothly, slant the piping hole on the wall slightly

downward to the outdoor side with the gradient of 5-10°.

Wall

Mark in the middle of it

Level meter

Left

Right

(Rear piping hole)

ø55mm or ø70mm

Space

to the

wall

above

150mm
