32
English

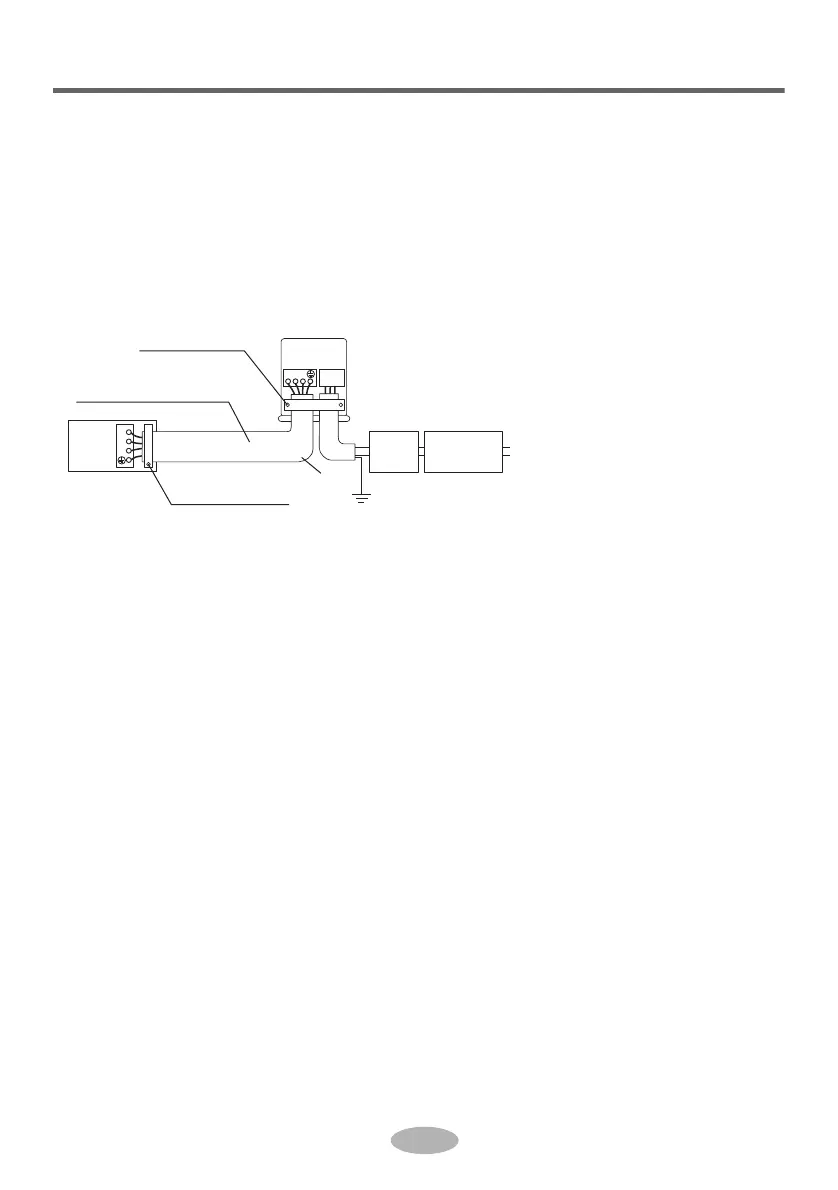

Wiring
● Do not turn ON the safety breaker until all work is completed.
1) For both outdoor and indoor units, strip the insulation from the
wire (40mm).
2) Connect the connection wires between the indoor and outdoor units
so that the terminal numbers match. Tighten the terminal screws
securely. We recommend a flathead screw driver be used to tighten
the screws.
3) For connecting outdoor unit to indoor unit use standardized supply
cable H05RN.
1
2
3
123
Safety
breaker
Earth leakage
circuit breaker
Earth
When wire length exceeds 10m,
use 2.0mm diameter wires.
H05RN
Indoor unit
Outdoor
unit
Power supply
50Hz 220-240V
Firmly fix the wires with
the terminal screws.
Firmly fix the wires with
the terminal screws.
To Next Page
