Daikin RXS09LVJU Service Manual Removal Procedure

Electrical Box Si001155EA
10 Removal Procedure
2. Electrical Box
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

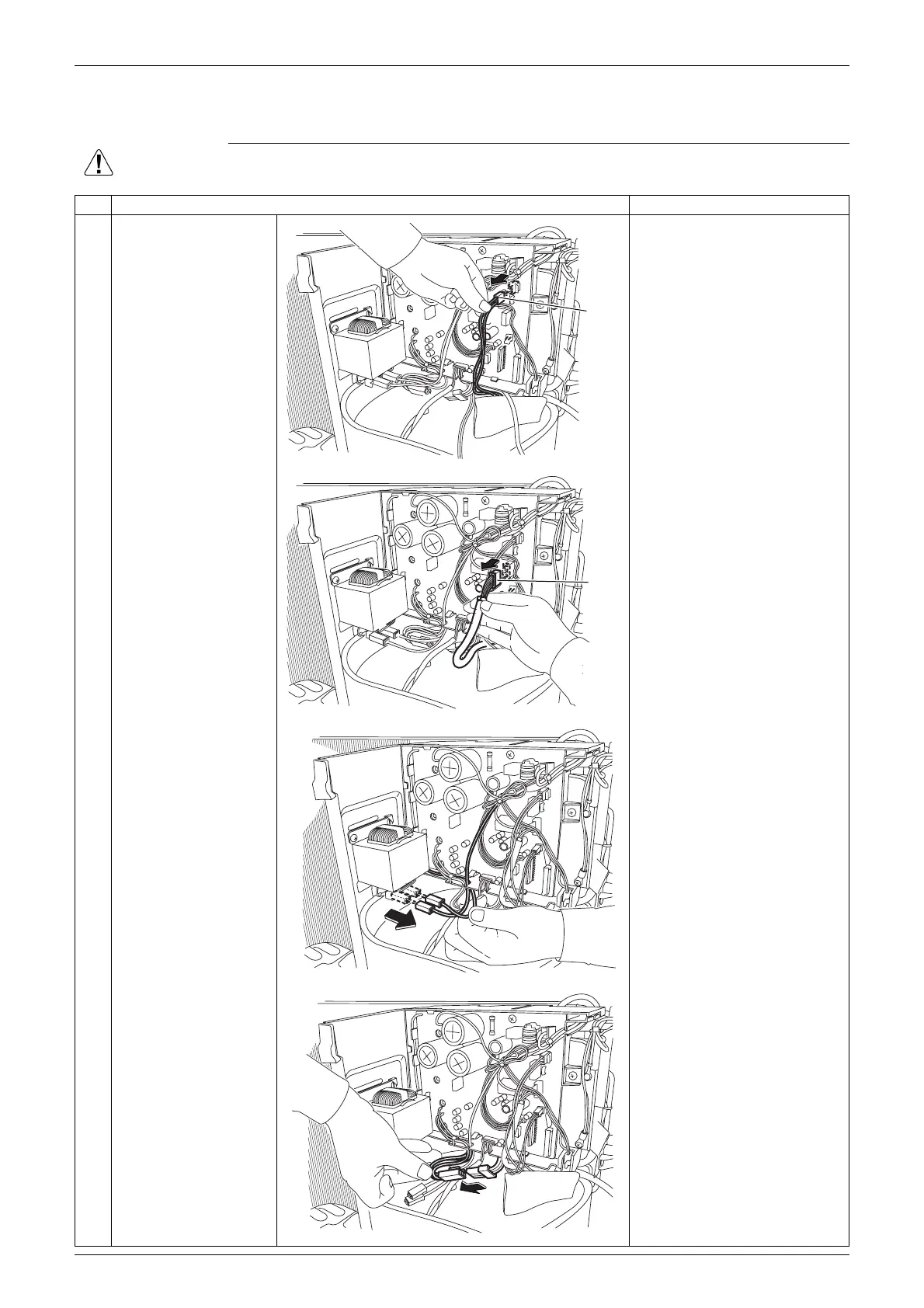

Step Procedure Points
1 Disconnect the
connector [S80].
[S80]: four way valve coil

The cooling only models do
not have the harness for
[S80].
2 Disconnect the
connector [S20].
[S20]: electronic expansion
valve coil
3 Disconnect the 2
connectors for the
reactor.

When reassembling, you
can connect the 2 harnesses
in either way regardless of
the color.
4 Disconnect the relay
connector for the
compressor.
[S80]
(R17144)
(R17050)
[S20]
(R16926)
(R16927)
