Daikin RXS09LVJU Service Manual Removal Procedure

Outer Panels / Fan Motor Si001155EA

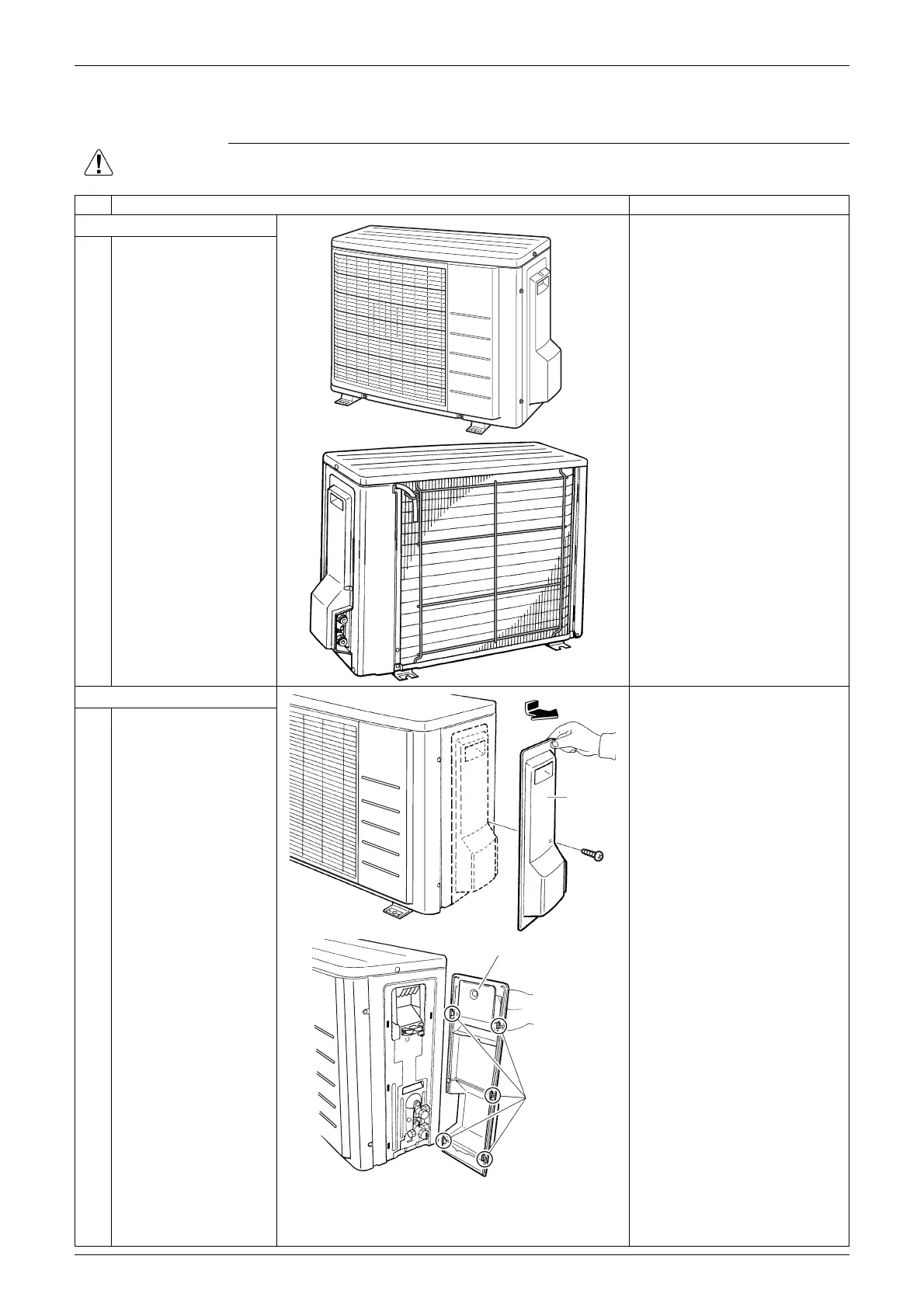

2 Removal Procedure
1. Outer Panels / Fan Motor
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Appearance features

Be careful not to cut your
finger on the fins of the
outdoor heat exchanger.
2. Remove the outer panels.

The stop valve cover is
united with the shield plate.

When reassembling, make
sure the 5 hooks are
securely fastened.
1
2
Remove the screw of
the stop valve cover.
Pull downward and
remove the stop valve
cover.
(R7186)
(R16044)
Stop
valve
cover
(R7188)
Shield plate
Hook
(R13504)
