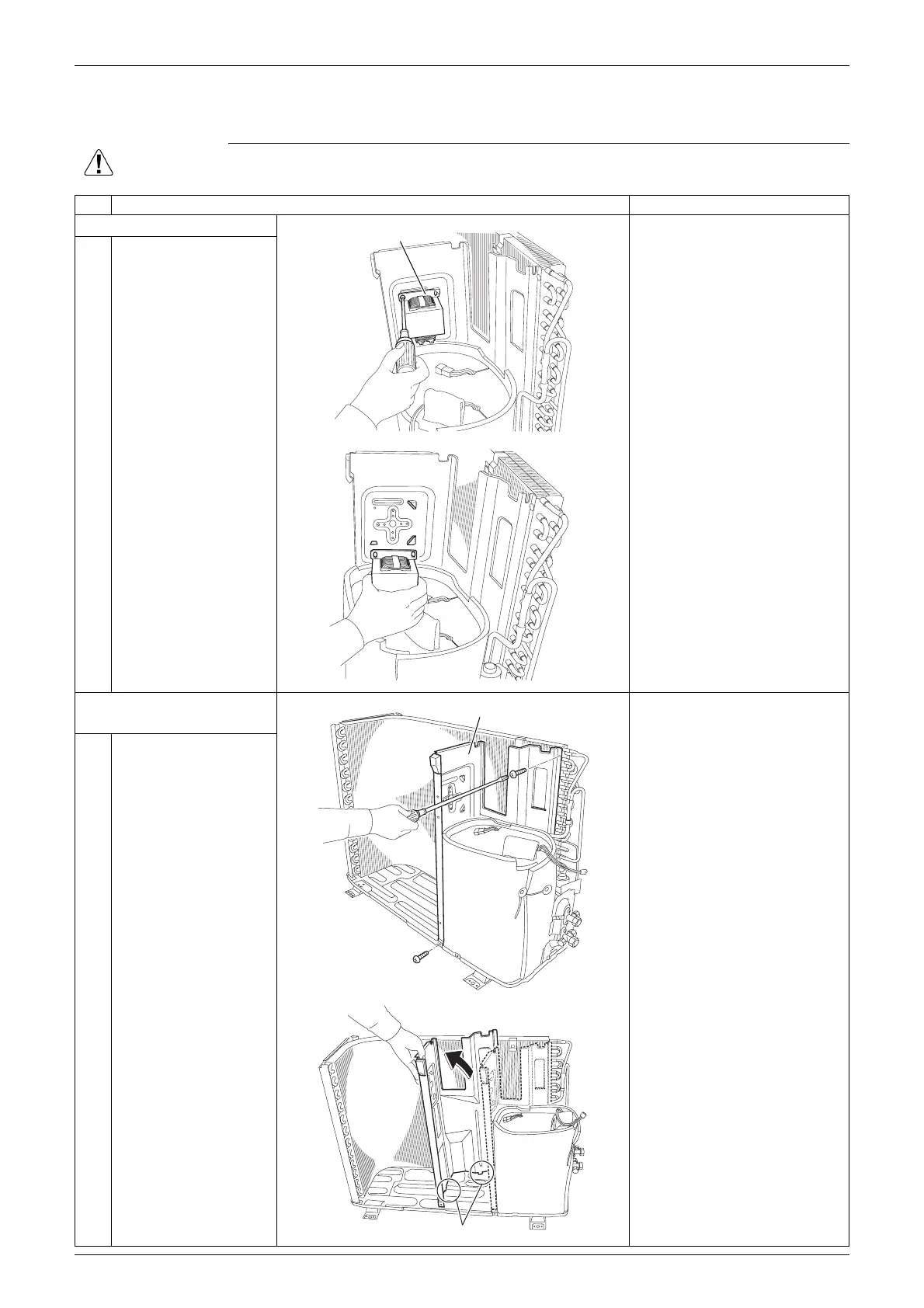

Reactor / Partition Plate Si001155EA
20 Removal Procedure
4. Reactor / Partition Plate
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Remove the reactor.
1 Remove the screw, and
then the reactor.
2. Remove the partition
plate.
1 Remove the 2 screws.
2 Lift and pull the partition
plate to remove.
When reassembling, fit the 2
lower hooks into the bottom
frame.
Reactor
(R11879)
(R11880)
Partition plate
(R12273)
Hook
(R13508)
