Si00-775 Removal of Electrical Box
Removal Procedure 13

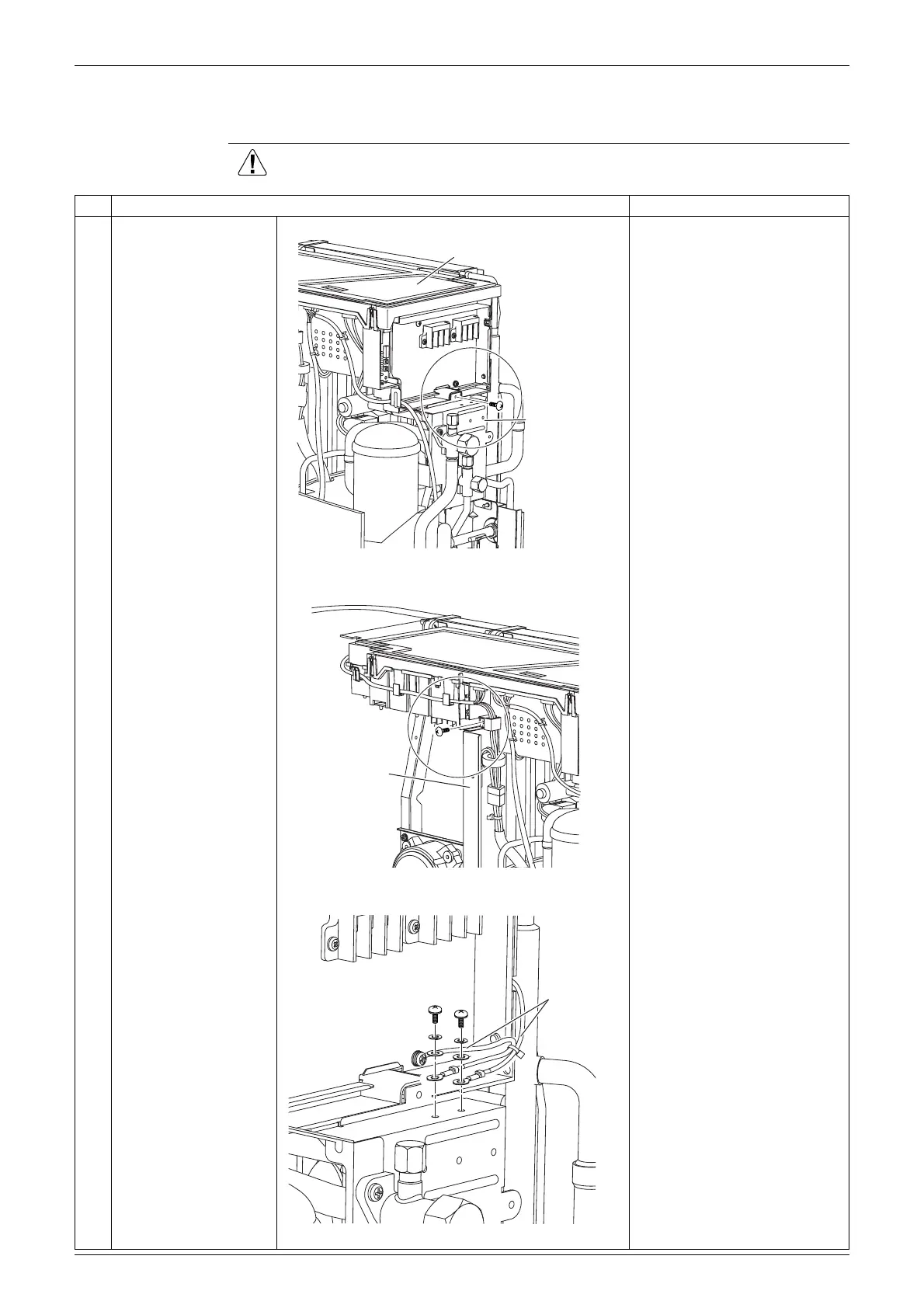

2. Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1 Remove the screw on
the stop valve mounting
plate.
2 Remove the screw on
the partition plate (1).
3 Remove the 2 screws
to detach the earth
wires.
Electrical box
Stop valve
mounting plate
(R16605)
Partition
plate (1)
(R16606)
Earth wire
(R17112)
