Si00-775 Removal of PCBs
Removal Procedure 17

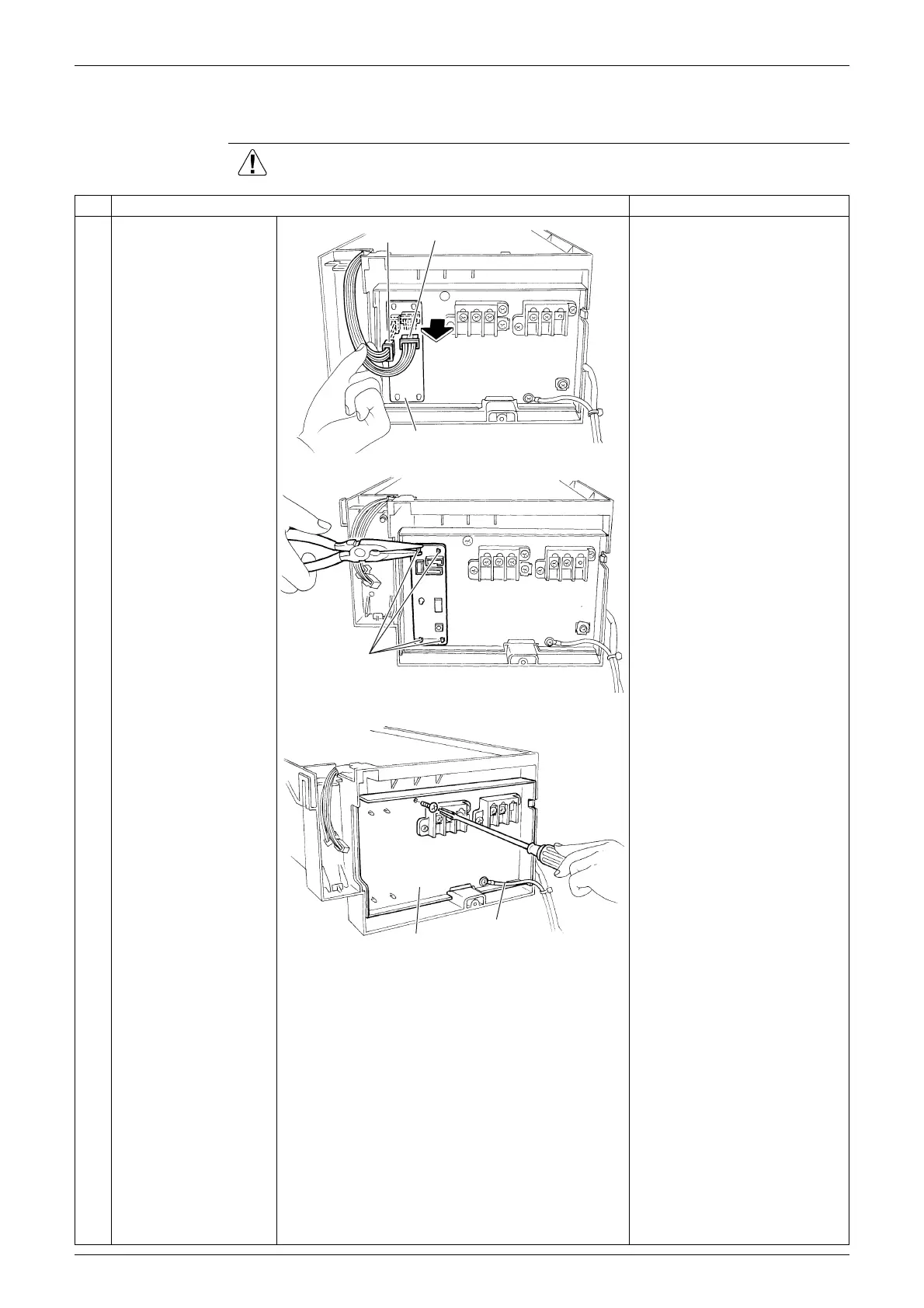

3. Removal of PCBs
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Disconnect the
connectors [S52]
[S102] from the service
monitor PCB.
Preparation

Remove the electrical box
according to the "Removal of
Electrical Box".
2
Detach the 4 clamps
with pliers and remove
the service monitor
PCB.
3
Remove the screws of
the terminal board and
the earth wire.
Service monitor PCB
[S52]
[S102]
(R16707)
Clamp
(R16708)
(R17030)
Terminal board
Earth wire
