Removal of Fan Motor Si00-775
20 Removal Procedure

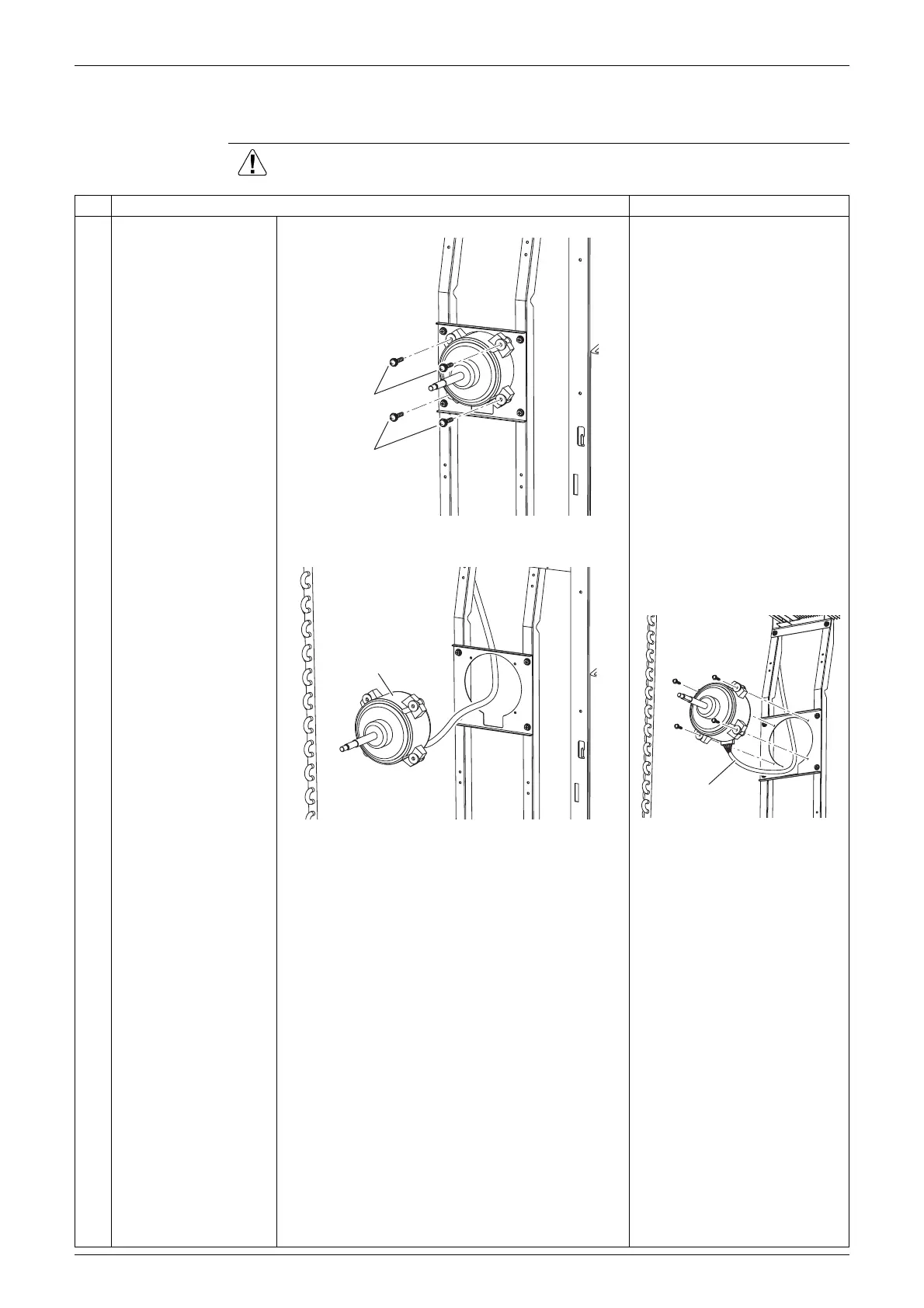

4. Removal of Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
2
Remove the 2 lower
screws first.
Then, remove the 2
upper screws.
Preparation
Remove the electrical box
according to the "Removal of
Electrical Box".
Be sure to remove the lower
screws first. If the top screws
are removed first, the fan
motor may tilt down or fall
and cause injury because its
center of gravity is shifted to
the front.
3 Remove the fan motor.
When reassembling, make
sure that the wire harness is
facing downward.
2
1
(R6442)
Fan motor
(R6443)
Harness
(R6444)
To Next Page
