15 About the units and options
In this chapter
15.1 Overview: About the units and options ................................................................................................................................. 52
15.2 Identification label: Outdoor unit........................................................................................................................................... 52
15.3 About the outdoor unit .......................................................................................................................................................... 53
15.4 System layout.......................................................................................................................................................................... 53
15.5 Combining units and options.................................................................................................................................................. 54
15.5.1 About combining units and options....................................................................................................................... 54
15.5.2 Possible combinations of indoor units................................................................................................................... 54
15.5.3 Possible combinations of outdoor units................................................................................................................ 54
15.5.4 Possible options for the outdoor unit.................................................................................................................... 55
15.1 Overview: About the units and options
This chapter contains information about:
▪ Identification of the outdoor unit
▪ Where the outdoor unit fits in the system layout
▪ With which indoor units and options you can combine the outdoor units
▪ Which outdoor units have to be used as standalone units, and which outdoor
units can be combined

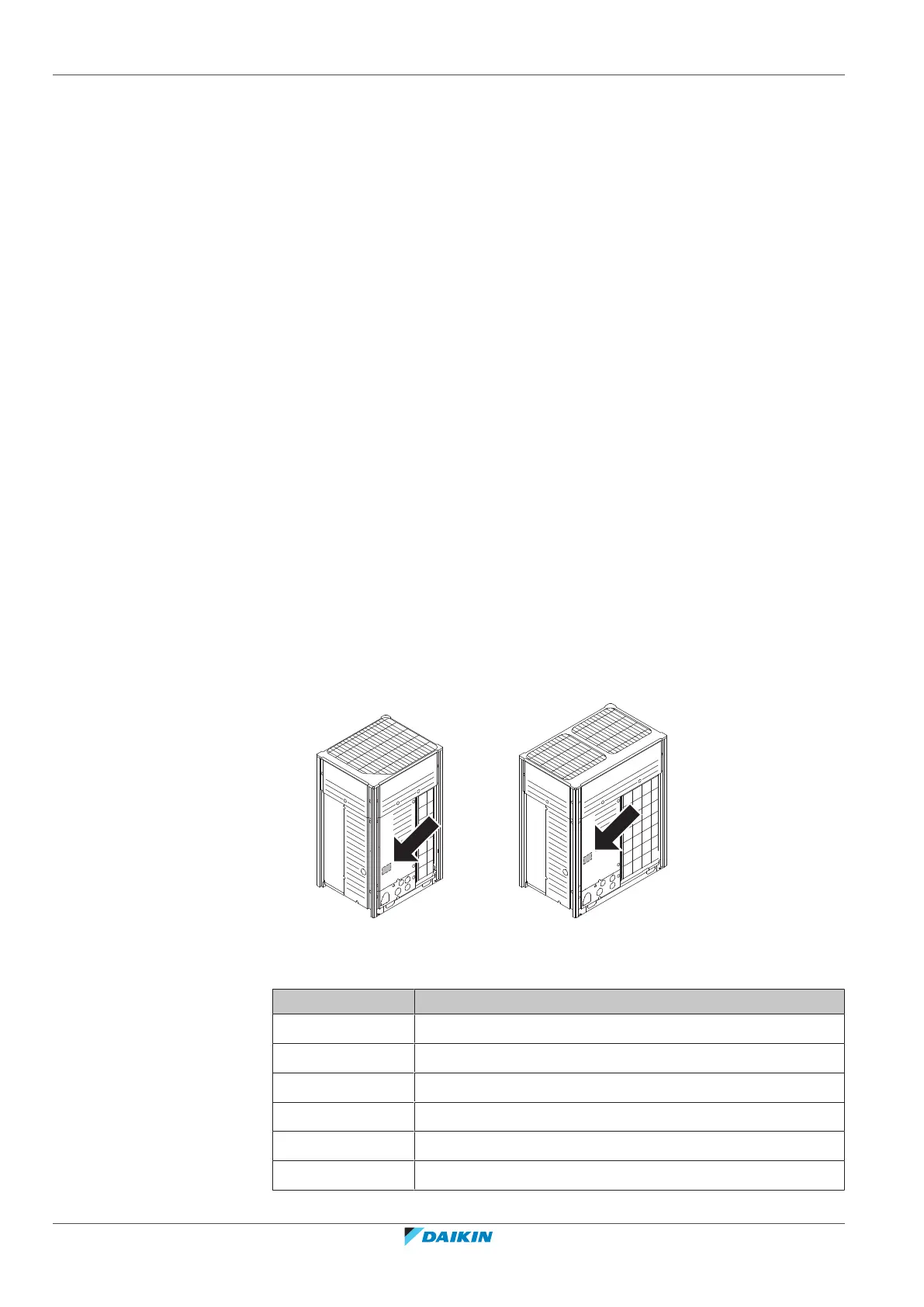

15.2 Identification label: Outdoor unit
Location
10~16 HP8 HP
Model identification
Example: R X Y T Q 8 U7 YF [*]
Code Explanation
R Outdoor air cooled
X X=Heat pump (no continuous heating)
Y Y=Pair module only
T High ambient (tropical) standard grade
Q Refrigerant R410A
8 Capacity class
