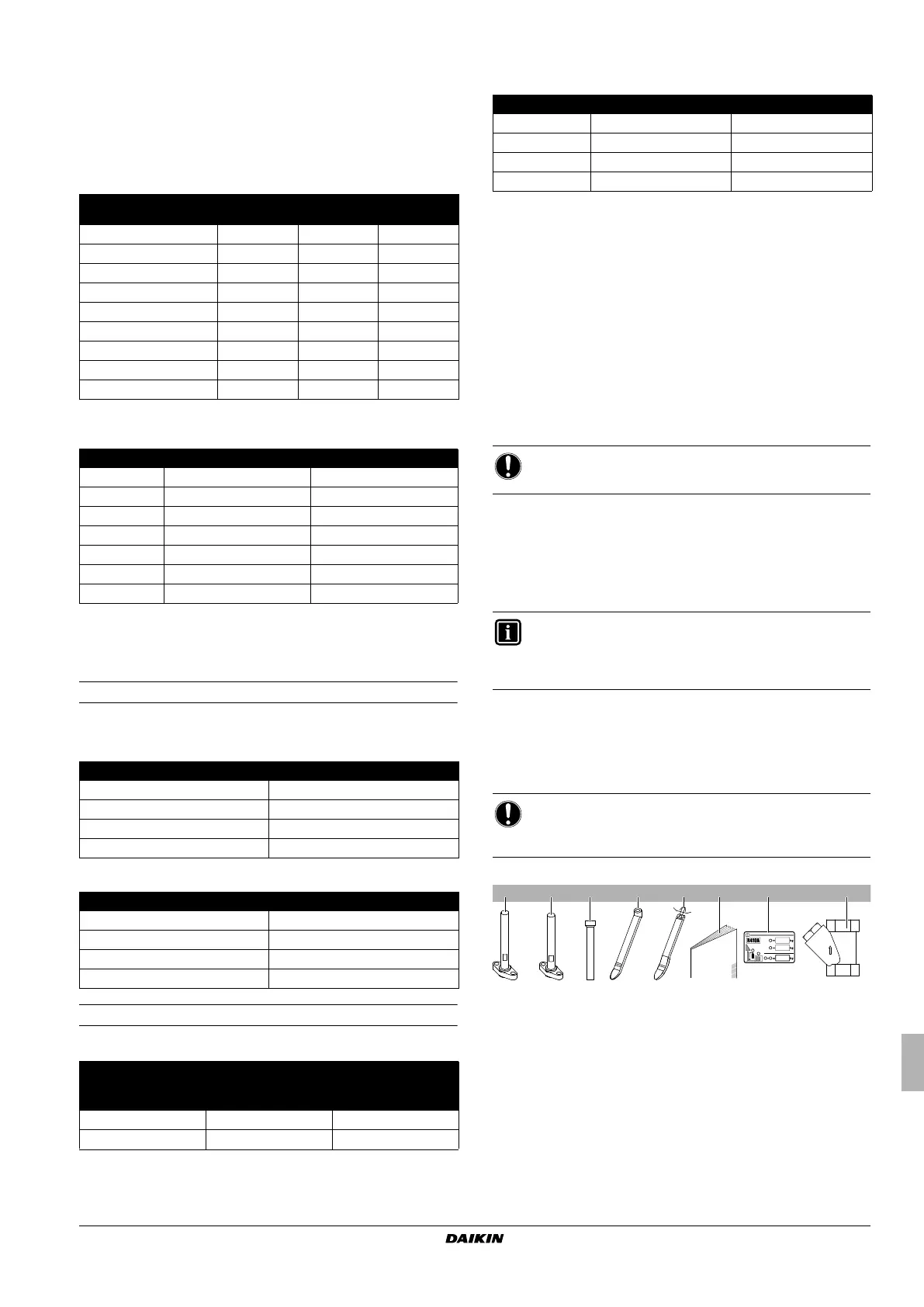

3.5. Combination and options
The indoor units can be installed in the following range.
 Always use appropriate indoor units compatible with R410A.
To learn which models of indoor units are compatible with
R410A, refer to the product catalogues.
 Indoor unit capacity range
The total capacity of indoor units needs to be within the specified
range. Connection ratio (CR): 50%≤CR≤130%
 Standard combinations for multi outdoor unit modules are as
indicated in table below.
3.5.1 Options
To install the above outdoor units, the following optional parts are also
required.
Refrigerant branching kit
Always use an appropriate kit dedicated for your system.
Heat pump system (2-pipe system)
Heat recovery system (3-pipe system)
Multi outdoor unit connection piping kit
Always use an appropriate kit dedicated for your system.
In case the insulation material of the multi outdoor unit piping kit has
to comply with higher fire resistance specifications. Following kits can
be used:
3.5.2 Other options
 KRC19-26A: Cool/heat selector (switch)
 KJB111A: Cool/heat selector (fixing box)
 DTA104A62: External control adapter for the outdoor unit
To instruct specific operation with an external input coming from
a central control, the external control adapter can be used.
Instructions (group or individual) can be instructed for power
consumption limitation.
 EKPCCAB*: For VRV IV water-cooled systems it is also possible
to make several commissioning field settings through a personal
computer interface. For this, option EKPCCAB* is required,
which is a dedicated cable to communicate with the outdoor unit.
The software for the user interface program can be downloaded
from the Daikin Extranet.
3.6. Scope of the manual
This manual describes the procedures for handling, installing and
connecting the VRV IV water-cooled units. This manual has been
prepared to ensure adequate maintenance of the unit, and it will
provide help in case problems occur.
4. Accessories
Make sure that the following accessories are included. Check by
removing the front panel.
Accessories located at the bottom of the indoor unit
1 Accessory pipe (thin marking) (2)
2 Accessory pipe (thick marking) (2)
3 Accessory pipe (2)
4 Clamps (1)
5 Clamps (1)
6 Installation and operation manual (1)
7 Refrigerant charge label f-gas (1)
8 Water filter (3)
See the figure in "5.1. Opening the unit" on page 6 for the location of
the accessories.
The accessories are located behind the front plate, as shown in the
following figure.
Outdoor unit
50%
minimum CR
100%
nominal CR
130%
maximum CR
RWEYQ8 100 200 260
RWEYQ10 125 250 325
RWEYQ16 200 400 520
RWEYQ18 225 450 585
RWEYQ20 250 500 650
RWEYQ24 300 600 780
RWEYQ26 325 650 845
RWEYQ28 350 700 910
RWEYQ30 375 750 975
8Hp 10 Hp
RWEYQ16 2 0
RWEYQ18 1 1
RWEYQ20 0 2
RWEYQ24 3 0
RWEYQ26 2 1
RWEYQ28 1 2
RWEYQ30 0 3
Refnet header Refnet joint
KHRQ22M29H KHRQ22M20TA
KHRQ22M29H KHRQ22M29T9
KHRQ22M64H KHRQ22M64T
KHRQ22M75H KHRQ22M75T
Refnet header Refnet joint
— KHRQ23M20T
KHRQ23M29H KHRQ23M29T9
KHRQ23M64H KHRQ23M64T
KHRQ23M75H KHRQ23M75T
Multi outdoor unit connection kit
Number of outdoor
units
2 3
Heat pump system BHFQ22P1007 BHFQ22P1517
Heat recovery system BHFQ23P907 BHFQ23P1357
EKBHFQ1 EKBHFQ2
BHFQ22P1007 1 0
BHFQ23P907 2 1
BHFQ22P1517 2 2
BHFQ23P1357 4 0
NOTICE
Refer to the manuals of these kits for more information.
INFORMATION
The installation of the indoor unit(s) is described in the
indoor unit installation manual provided with the indoor
units.
NOTICE
Accessory pipes 1 and 3 are not used for the heat pump
system.
1 2 3 4 5 867
