Danfoss FCM 300 Series User Manual

FCM 300 Series
MG.03.B6.02 - VLT is a registered Danfoss trademark20
ItemItem
ItemItem
Item
DescriptionDescription
DescriptionDescription
Description
1 Flinger (when fitted)
2 Drive end oilseal
3 Endshield fixing bolt
4 Drive end endshield
5 Preload washer
6 Bearing
7 Shaft key
8 Rotor assembly
9 Stator assembly with or without fee
10 Connector block
11 Gasket
12 Detachable feet
13 Foot fixing bolt and washer
14 Bearing retention circlip
15 Non-drive endshield
16 Bearing circlip
17 Fan
18 Fan cover
ItemItem
ItemItem
Item
DescriptionDescription
DescriptionDescription
Description
19 Fan cover screw and washer
20 Screwed bung
21 O‘ ring
22 ISM box
23 Cable strap
24 Cable strap screws
25 ISM box lid
26 Torx screw
27 Washer
28 Face endshield
29 Flange endshield
30 Brake hub
31 Brake hub retention circlip
32 Brake and adaptor plate
33 Stub shaft
34 Brake fan cover
35 Force vent fan cover
36 Terminal box

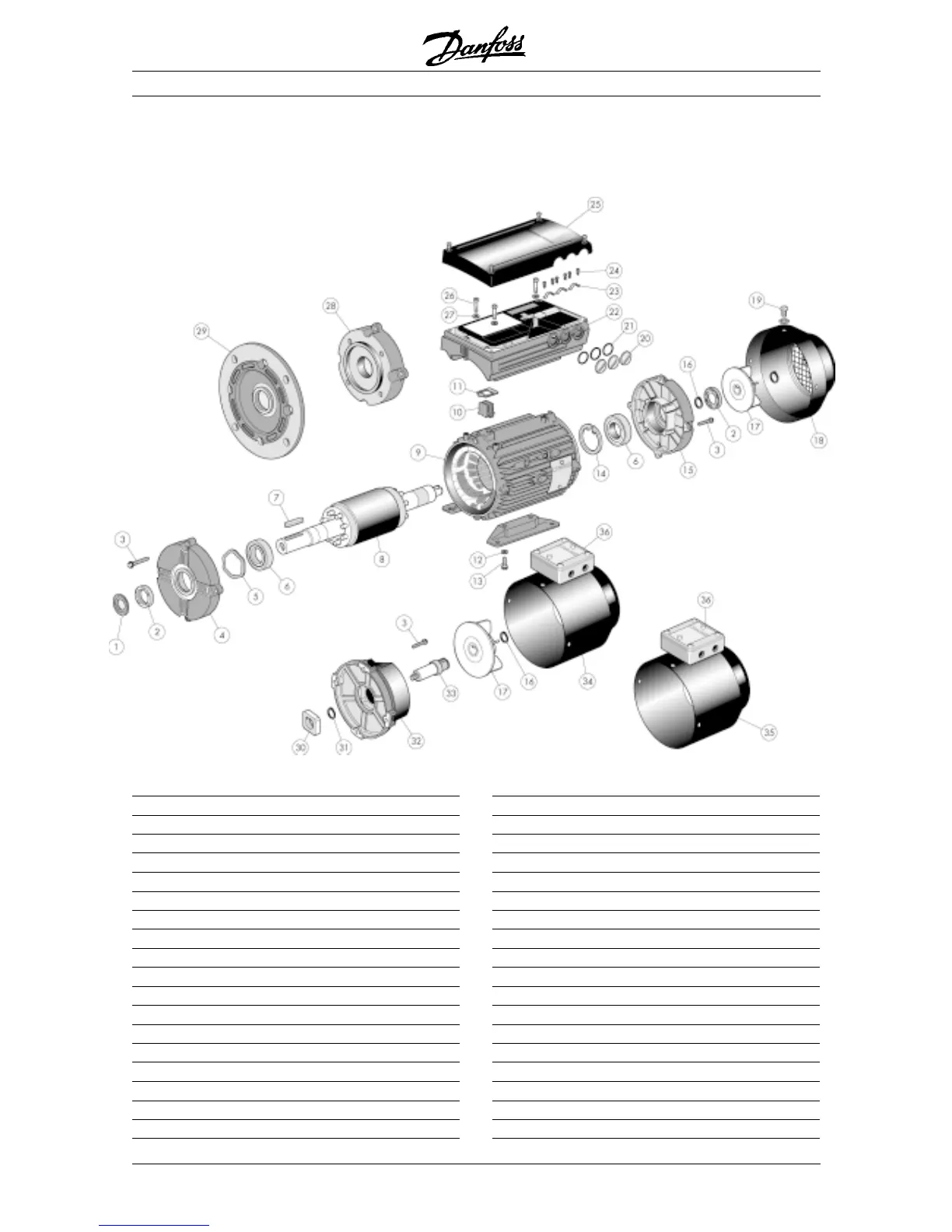

■ Description of the motor
The FC motor consists of the following parts:
