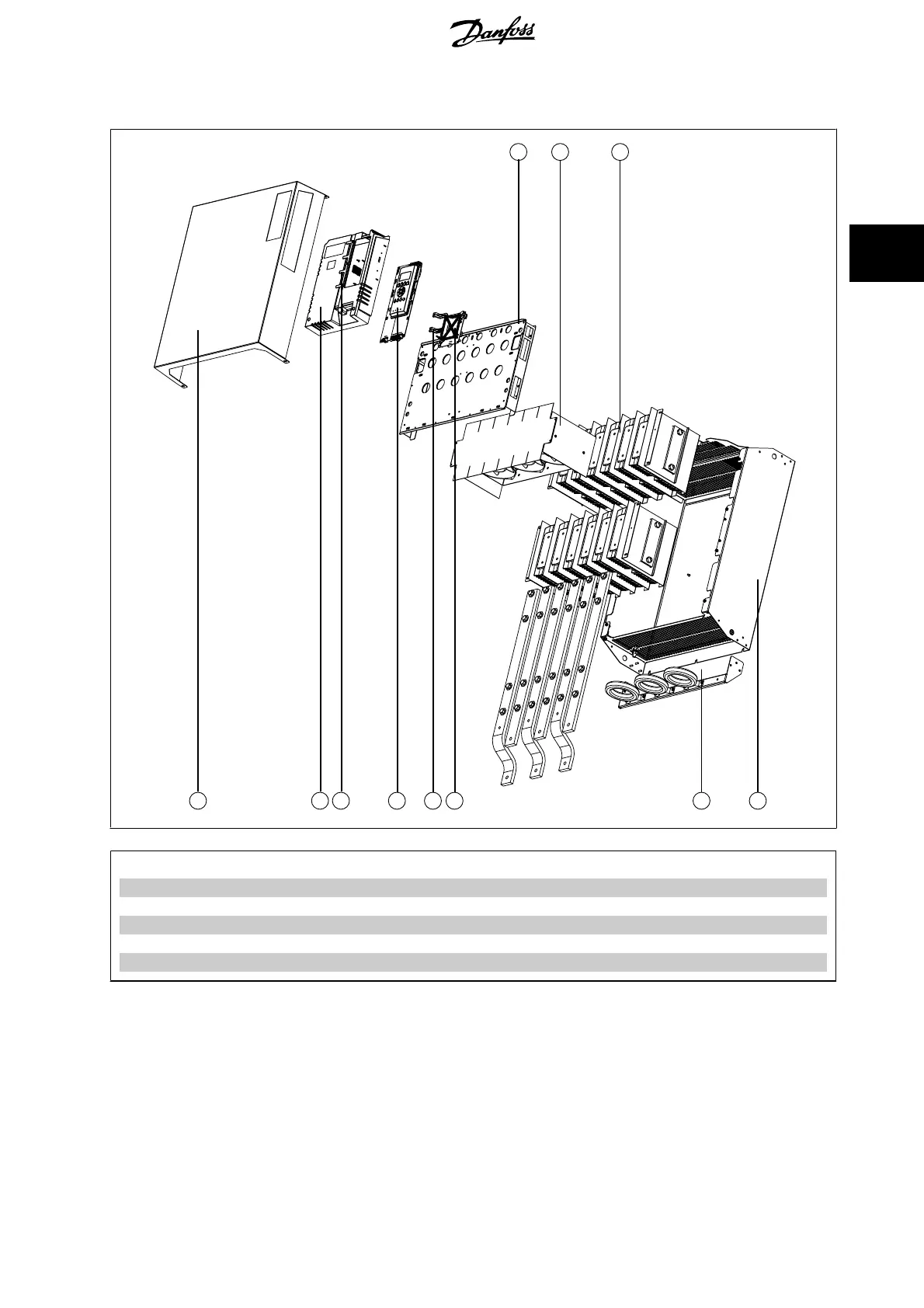

3.1.6 MCD5-1200C - MCD5-1600C (G5C)
1 2 4
7 8 9
3 65 10 11
177 HA541.10
1 Cover 7 Magnetic bypass plate
2 Main plastic 8 Fan assembly
3 Cable guide 9 Power assembly
4 LCP and Main Control PCB 10 Current transformer assembly
5 Support plastic 11 Main body
6 Model PCB
MCD 500 Service Manual 3 Service Instructions
