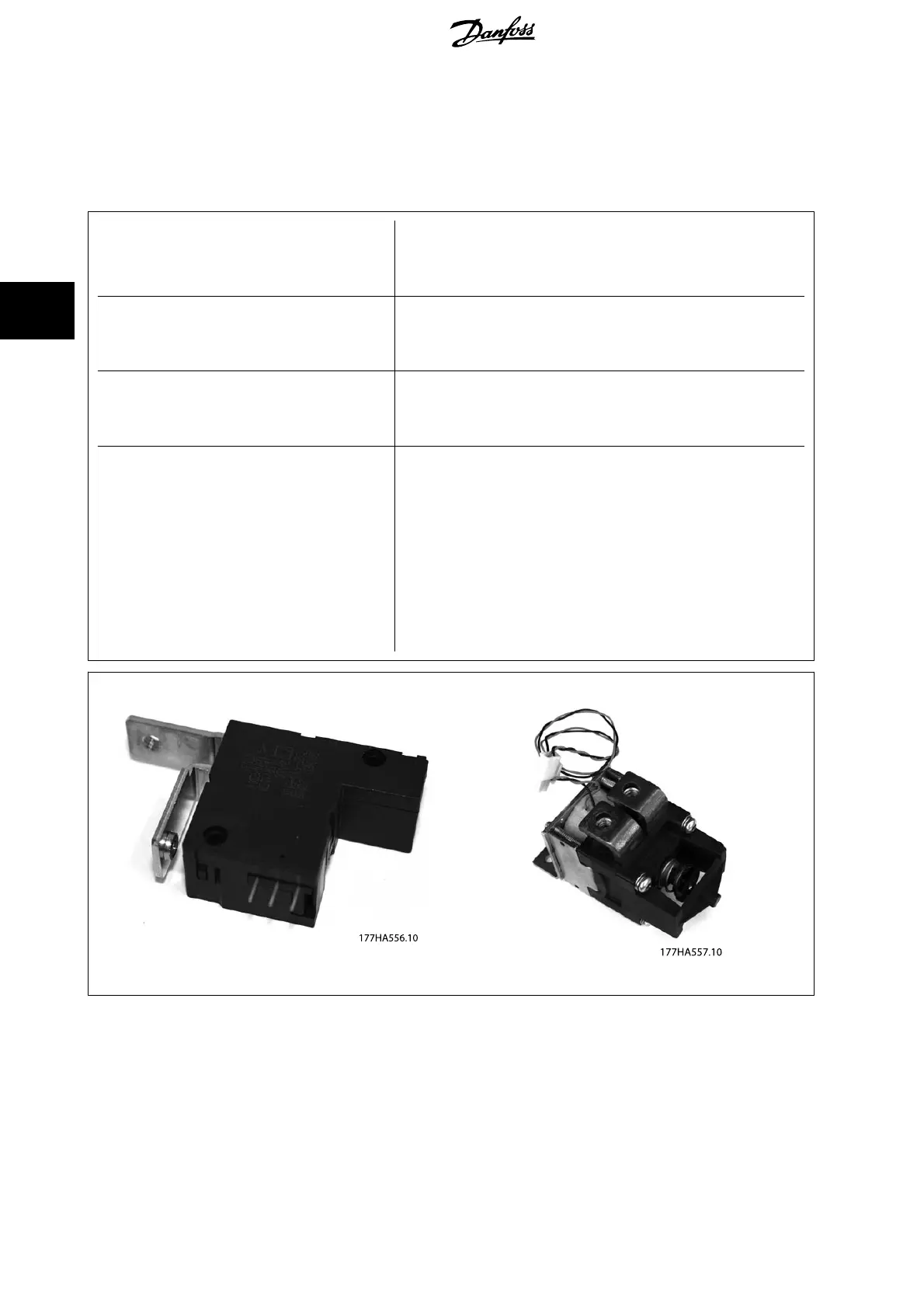

4.9 Bypass Contactors
Models MCD5-0021B - MCD5-0215B are internally bypassed. The bypass contactor for models MCD5-0021B - MCD5-0053B is included in the Model PCB.
The bypass contactors for models MCD5-0068B - MCD5-0215B are shown below. Each soft starter requires three bypass contactors.
MCD5-0021B
Not required
MCD5-0037B
MCD5-0043B
MCD5-0053B
MCD5-0068B
175G5660
MCD5-0084B
MCD5-0089B
MCD5-0105B
MCD5-0131B
175G5661
MCD5-0141B
MCD5-0195B
MCD5-0215B
MCD5-0245C
Not required
MCD5-0360C
MCD5-0380C
MCD5-0428C
MCD5-0595C
MCD5-0619C
MCD5-0790C
MCD5-0927C
MCD5-1200C
MCD5-1410C
MCD5-1600C
175G5660 175G5661
