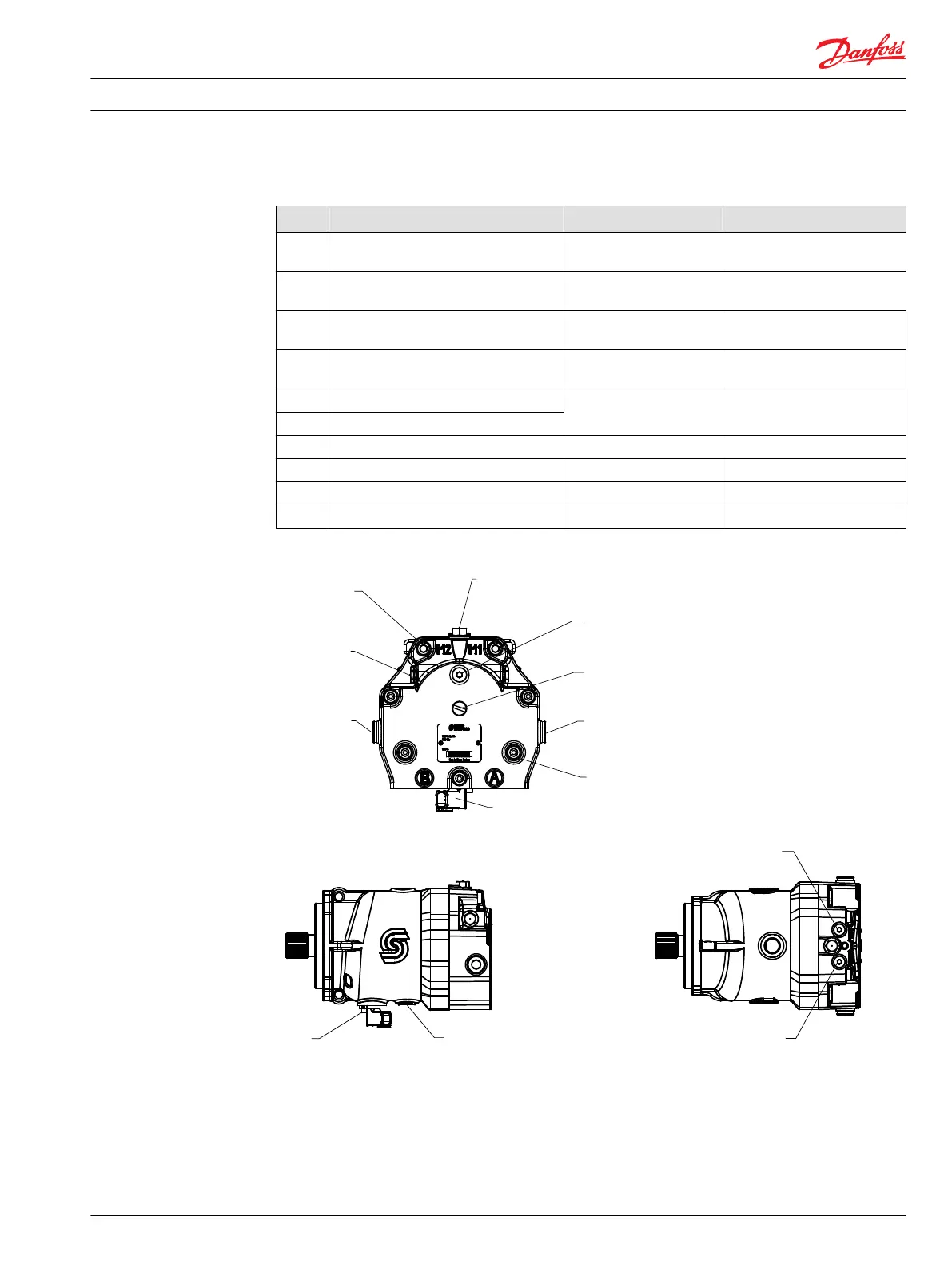

Fasteners, plugs and torques
Item Fastener Wrench size Torque
B040 Plug-SOC-O-ring M22x1.5
Plug-SOC-O-ring 7/8"
10 mm internal hex
3/8 internal hex
40 ±5 N•m [29.5 lbf•ft]
G120
G130
Rear cover screw 8 mm internal hex 70 ±0.7 N•m [51.6 lbf•ft]
G050,
G060
Plug-SOC-O-ring M12x1.5 6 mm internal hex 21 ±2 N•m [15.5 lbf•ft]
G050,
G060
Plug-SOC-O-ring 9/16" ¼ internal hex 40 ±4 N•m [29.5 lbf•ft]
K30 Loop-flushing assy 17 mm 38 ±4 N•m [28 lbf•ft]
H00W Spool-shuttle assy
V030 Anticavitation valve groove for screw driver 20 ±2 N•m [14.8 lbf•ft]
G090 High pressure relief valve 12 mm internal hex 80 ±20 N•m [59 lbf•ft]
W055 Speed sensor mounting bolt 5 mm internal hex 8 ±1 N•m [6 lbf•ft]
W030 Sensor PPU lock nut 13 ±2 N•m [10 lbf•ft]
Ports and plugs description
V030
Anti-cavitation valve
G090
High pressure
relief valve
G090
High pressure
relief valve
G130
Screw
G120
Screw
G060
Plug-Soc-w/O-ring
H00W
Spool-Shuttle
90MF100 Assy
K30
Loop flushing Assy
W040
Speed sensor
W055
Screw
B040
Plug-Soc-w/O-ring
G050
Plug-Soc-w/O-ring
G050
Plug-Soc-w/O-ring
Service Manual TMM Transit Mixer Axial Piston Motor, Size 070/084/089
