Table 126: MCCB Part Numbers for N400–N630 Models, 525–690 V
N400
N450
N500
N560
N630
IEC
600 A/690 V
1000 A/690 V
1000 A/690 V
1000 A/690 V
1000 A/690 V
ABB P/N
T6L630T
T7L1000LSPR23 1 DS-
LS
T7L1000LSPR23 1 DS-
LS
T7L1000LSPR23 1 DS-LS
T7L1000LSPR23 1 DS-LS
UL
600 A/600 V
1000 A/600 V
1000 A/600 V
1200 A/600 V
1200 A/600 V
ABB P/N
T6LQ600TW
T7L1000PR231/P
T7L1000PR231/P
T7LQ1200PR231/P
T7LQ1200PR231/P
Table 127: MCCB Part Numbers for N710–N800 Models, 525–690 V
N710
N800
IEC
1250 A/690 V
1250 A/690 V
ABB P/N
T7L1250LSPR23 1 DS-LS
T7L1250LSPR23 1 DS-LS
UL
1200 A/600 V
1200 A/600 V
ABB P/N
T7L1200PR231/ P
T7L1200PR231/ P
10.9 Enclosure Dimensions
10.9.1 Pedestal Dimensions
The pedestal, on which the enclosure sits, is available in 3 dierent heights:
100 mm (3.9 in)
200 mm (7.9 in)
400 mm (15.8 in)
10.9.2 D9h Enclosed Drive Exterior Dimensions
e30bu121.10
400 (15.8)
2000
55
(78.7)
100 (3.9)
400 (15.8)
600 (23.6)
(2.2)
1 2 3
4
600 (23.6)

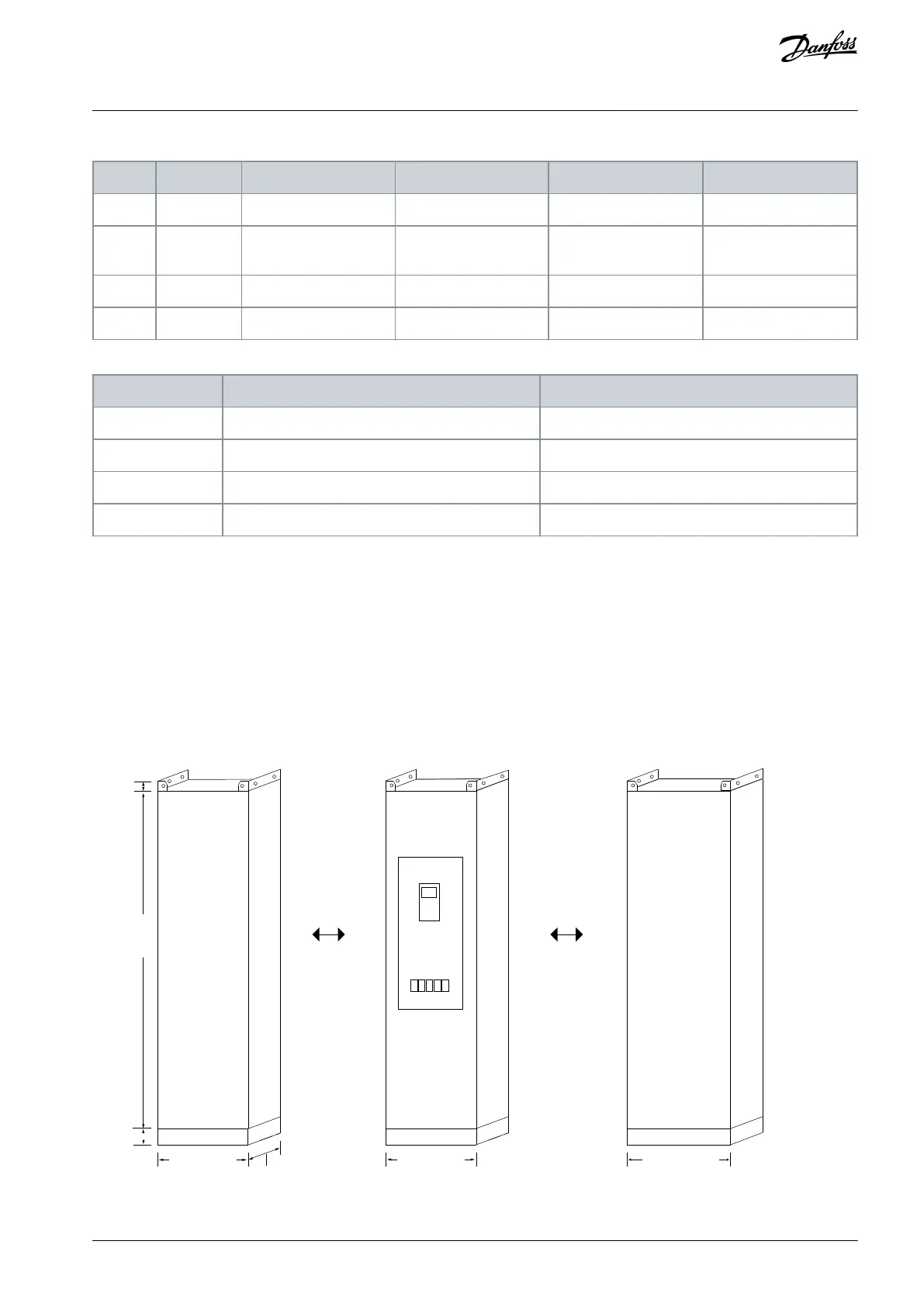

Illustration 72: Dimensions for D9h Enclosure with Standard Pedestal
