1.
2.
3.
1.
1.
Example
+
e30bu150.10
RS485
XD2.3
XD2.1
XD2.2

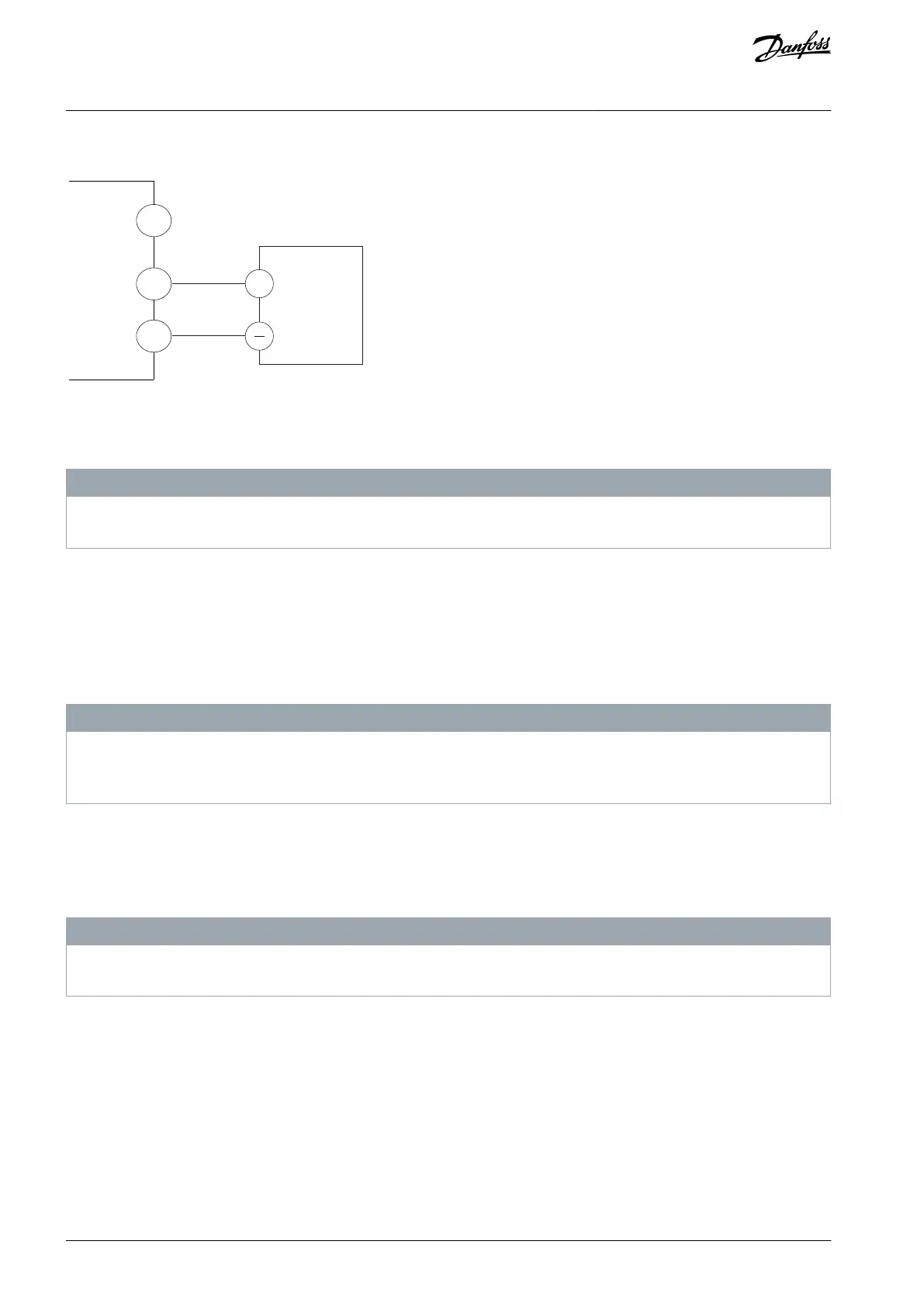

Illustration 55: RS485 Wiring Connection
5.13 Conguring the Passive Harmonic Filter (PHF)
N O T I C E
EQUIPMENT DAMAGE
Failure to use the correct settings can result in the AC drive overheating, resulting in damage to the AC drive and its surroundings.
Procedure
Set parameter 5-02 Terminal 29 Mode to [1] Output.
Set parameter 5-31 Terminal 29 to [188] AHF Capacitor Connect.
Set parameter 14-51 DC-link Compensation to [0] O.
5.14 Conguring the dU/dt Filter
N O T I C E
EQUIPMENT DAMAGE
Failure to use the correct settings for the D9h and D10h enclosures can result in the AC drive overheating, resulting in damage to
the AC drive and its surroundings. E5h and E6h enclosures are not required to use a specic setting.
Procedure
Set parameter 14-52 Output Filter to [3] 100%.
5.15 Conguring the Sine-wave Filter
N O T I C E
EQUIPMENT DAMAGE
Failure to use the correct settings can result in the AC drive overheating, resulting in damage to the AC drive and its surroundings.
Procedure
Set parameter 14-55 Output Filter to [1] Sine-wave.
5.16 MCCB Conguration
The molded-case circuit breaker (MCCB) oers the following trip settings:
AQ357954340588en-000201 / 130R088194 | Danfoss A/S © 2020.09
Electrical Installation
VLT® Refrigeration Drive FC 103
Operating Guide
