Conn. Term. Input/Output Type Function
X55
1 Input Normally open, dry relay contact Closed when motor can start to
run
2 Input
3 Input Normally open, dry relay contact Closed for remote start with
common start/stop
4 Input
5 Input Normally open, dry relay contact Safety input, open to stop
6 Input
7 Input Normally open, dry relay contact Closed to enable Fire Mode
8 Input
9 Output Normally open, dry relay contact Closed indicates Fire Mode
activated
10 Output
11 Output Normally open, dry relay contact Closed indicates Motor 1 selected
12 Output
Conn. Term. Input/Output Type Function
X56
1 Output Normally open, dry relay contact Closed indicates Motor 2 selected
2 Output
3 Output Normally open, dry relay contact Closed when panel is in Drive
Mode
4 Output
5 Output Normally open, dry relay contact Closed when panel is in Bypass
Mode
6 Output
7 Output Normally open, dry relay contact Open when drive is in Fault
Condition
8 Output Common form C relay contact Common for fault relay
9 Output Normally closed form C relay
contact
Closed when drive is in Fault
Condition
10 Input Normally open, dry relay contact CMS Motor 2, close to select
11 Input Normally open, dry relay contact CMS common
12 Input Normally open, dry relay contact CMS Motor 1, close to select
Conn. Term. Input/Output Type Function
X58
1 Output Normally open, dry relay contact Closed indicates run requested
2 Output

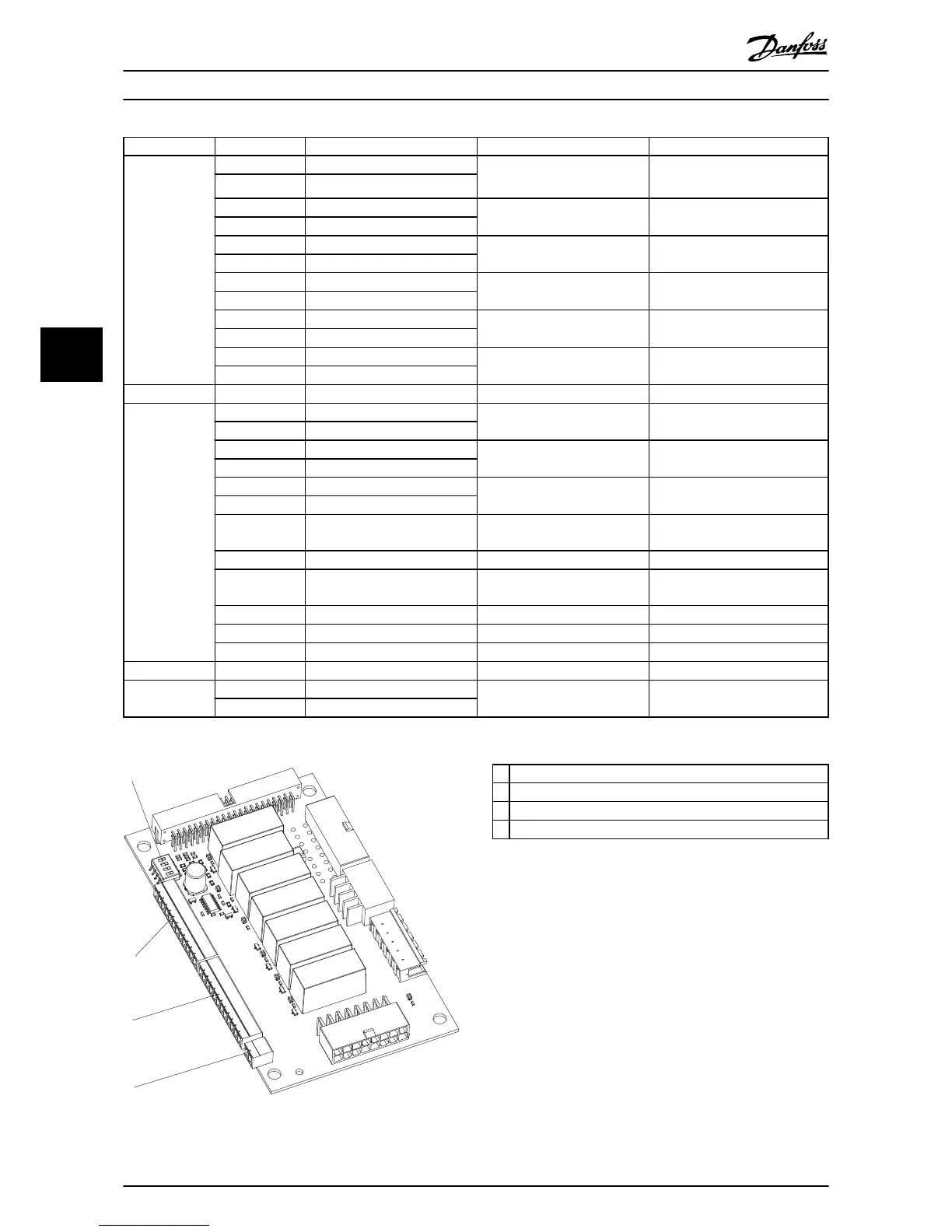

Table 5.1 EMB2 Control Card Terminal Functions
130BX226.10
1
2
3
4
Illustration 5.2 EMB2 Control Card
1 Switch S103 autobypass timer
2 Terminal X56
3 Terminal X55
4 Terminal X58
Table 5.2 Legend to Illustration 5.2
Electromechanical Bypass (E... Option Panel Operating Instructions
34 MG14I102 - VLT
®
is a registered Danfoss trademark
55
